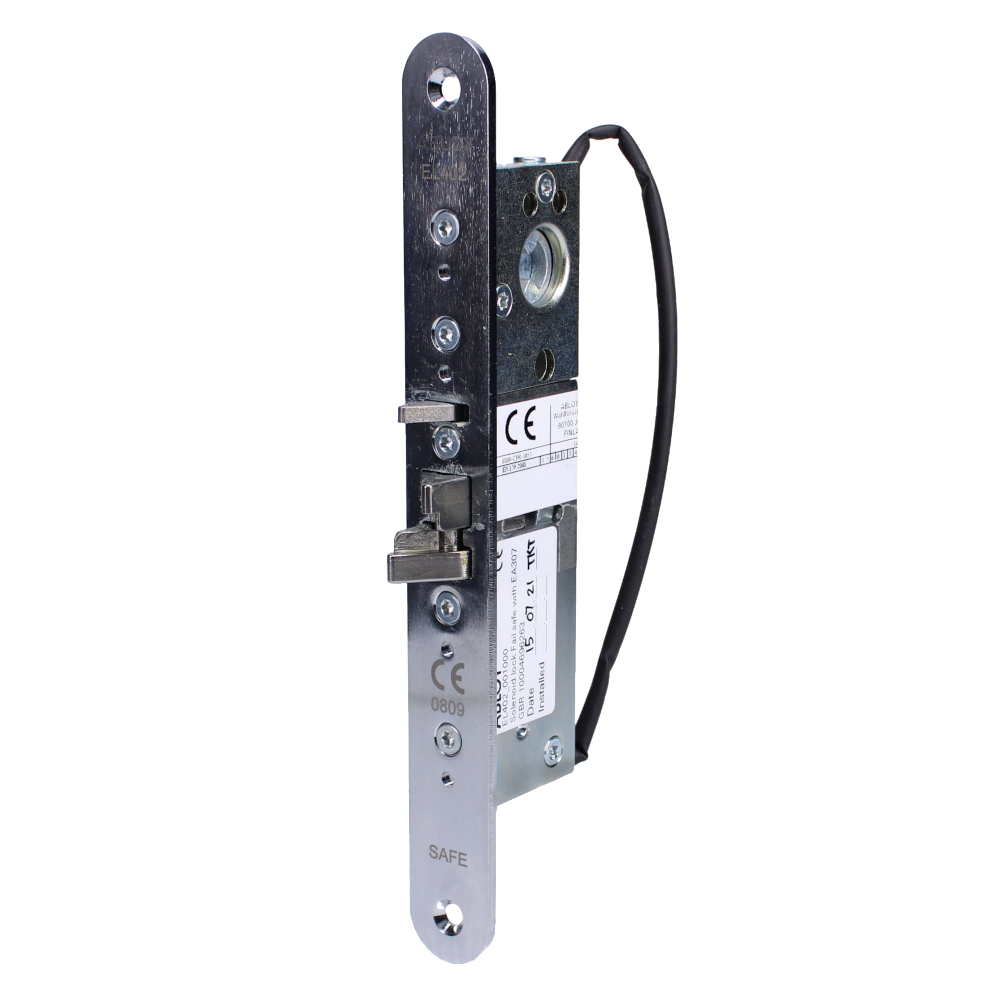

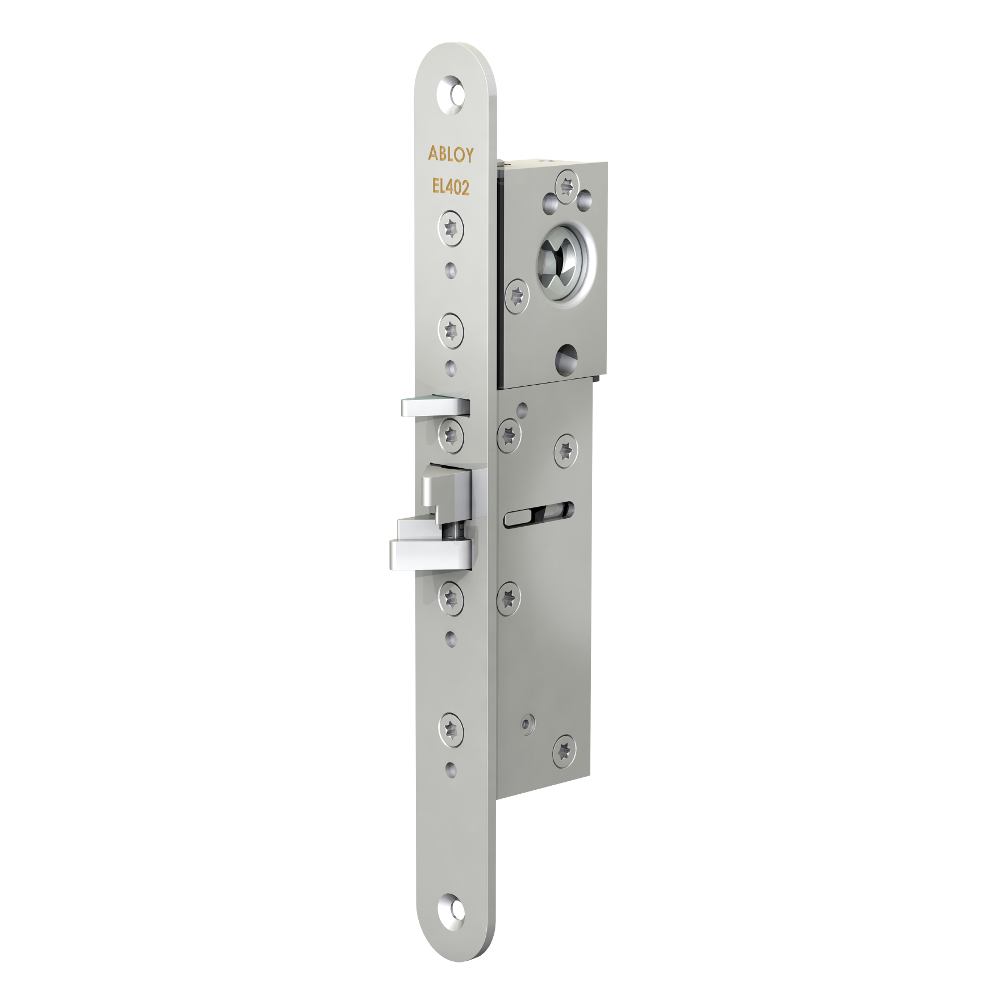

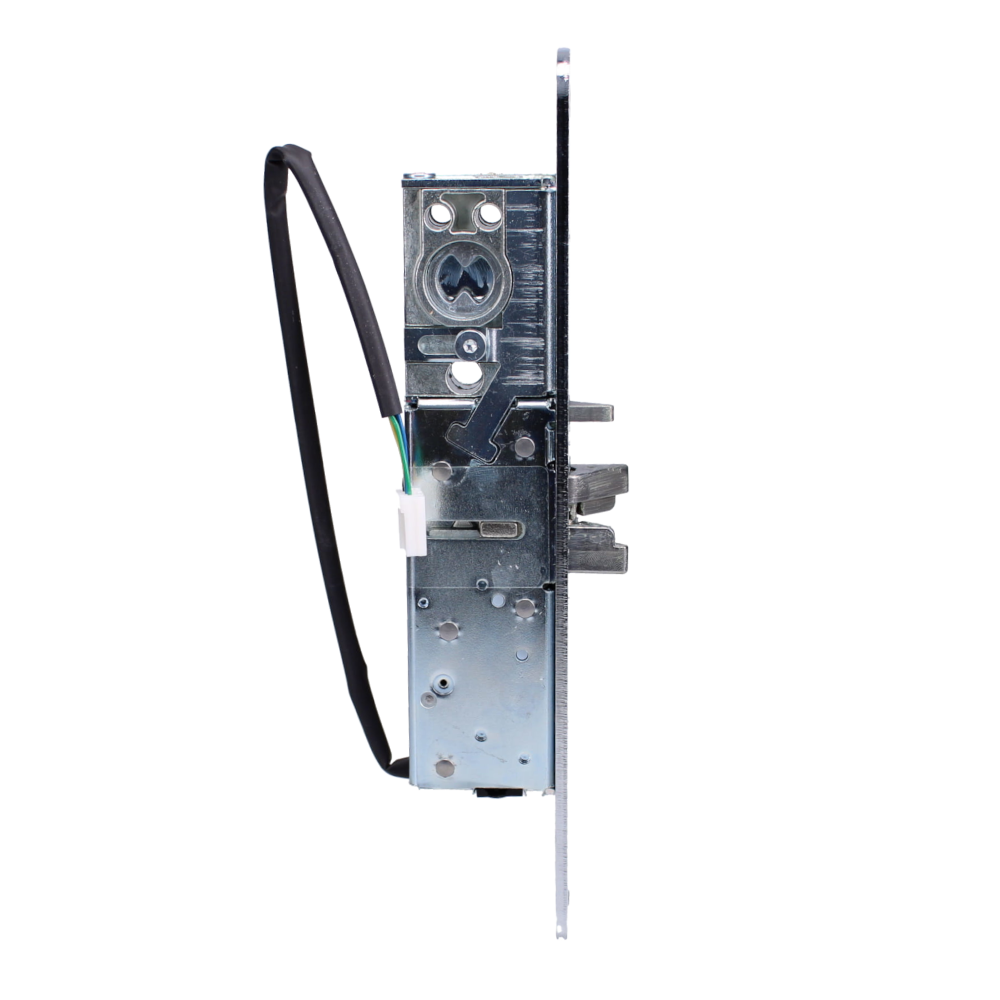

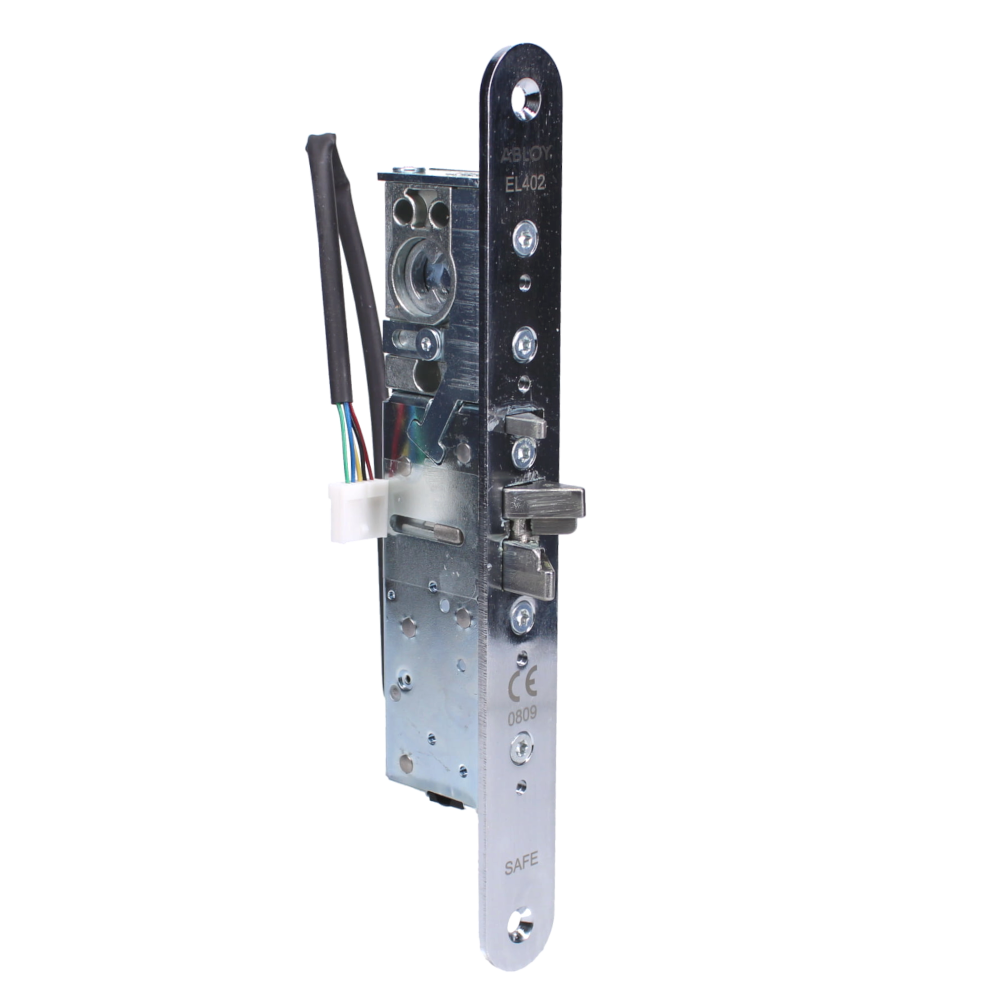

The Abloy EL402 F/UN Electric Lock is a high security lock (fail unlocked) suitable for narrow stile doors and has a steel trigger & deadbolt. Its double action bolt deadlocks when door closes and collapses into the lockcase as the door is opened (push or pull). The EL402 F/UN is non handed, suitable for horizontal installation and incorporates key/thumbturn override at all times. It is recommended that mechanical override is always used with this lockcase. Not recommended for use with fire route doors.

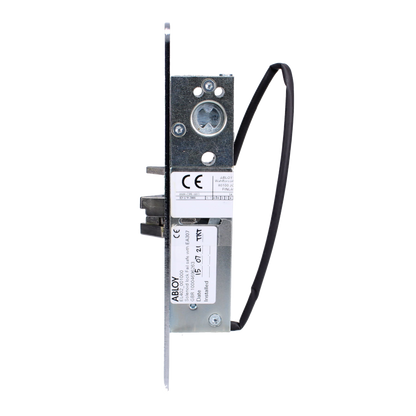

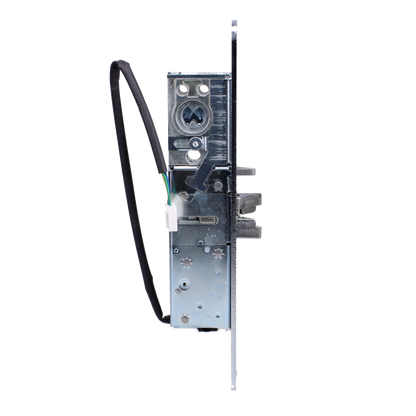

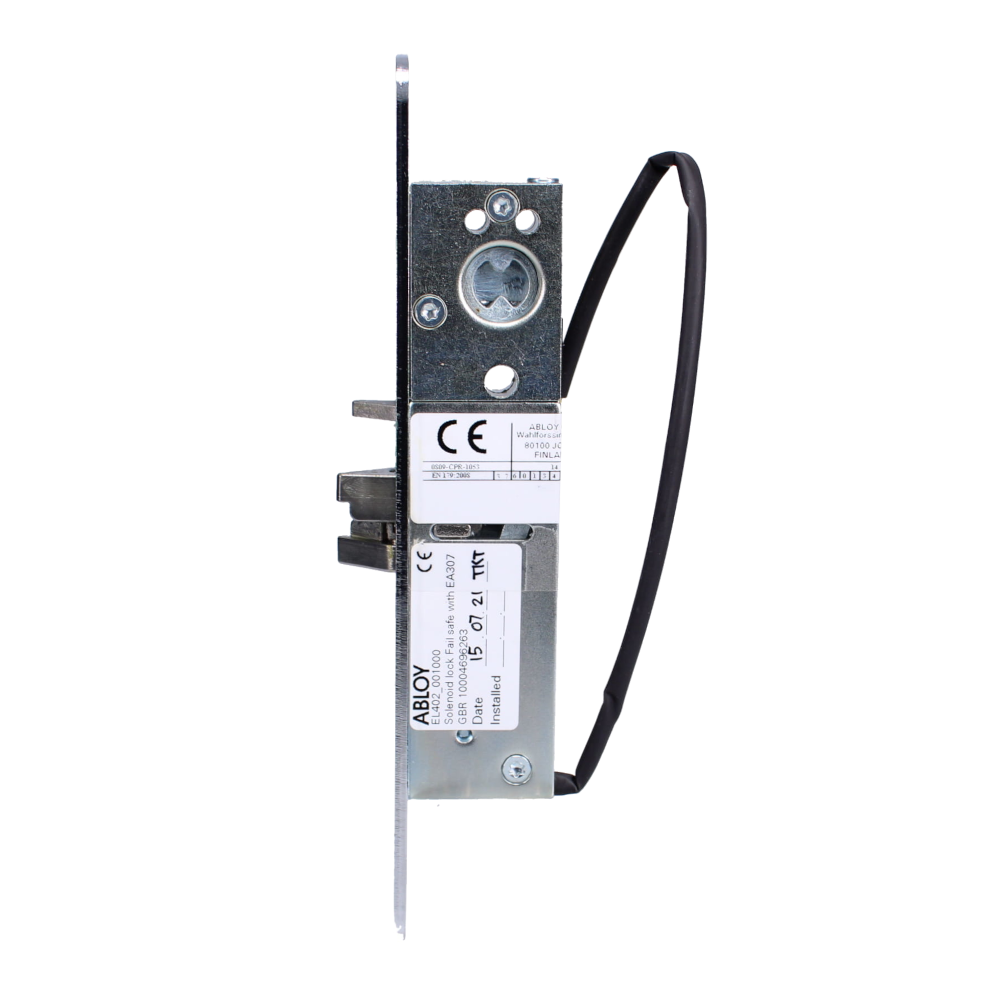

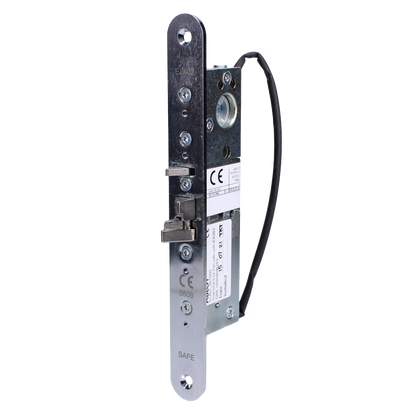

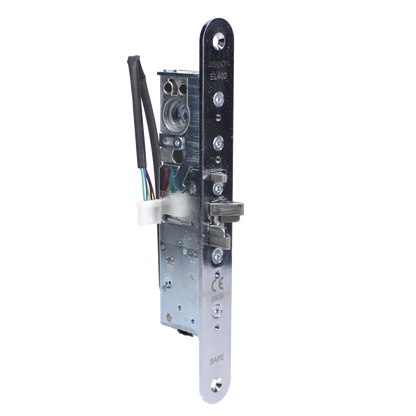

ABLOY EL402 F/UN Electric Lock
Features
Adjustable backset
Double action bolt (deadlocks when door closes and collapses into lockcase as door is opened (push or pull)
Key/thumbturn override at all times
Suitable for horizontal installation
Non-handed
Steel trigger and deadbolt
Finishes
Polished Chrome
Categories
Access Control
Electric Locking
Electric Lock
Abloy
Our ABLOY EL402 F/UN Electric Lock from Abloy Security is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.

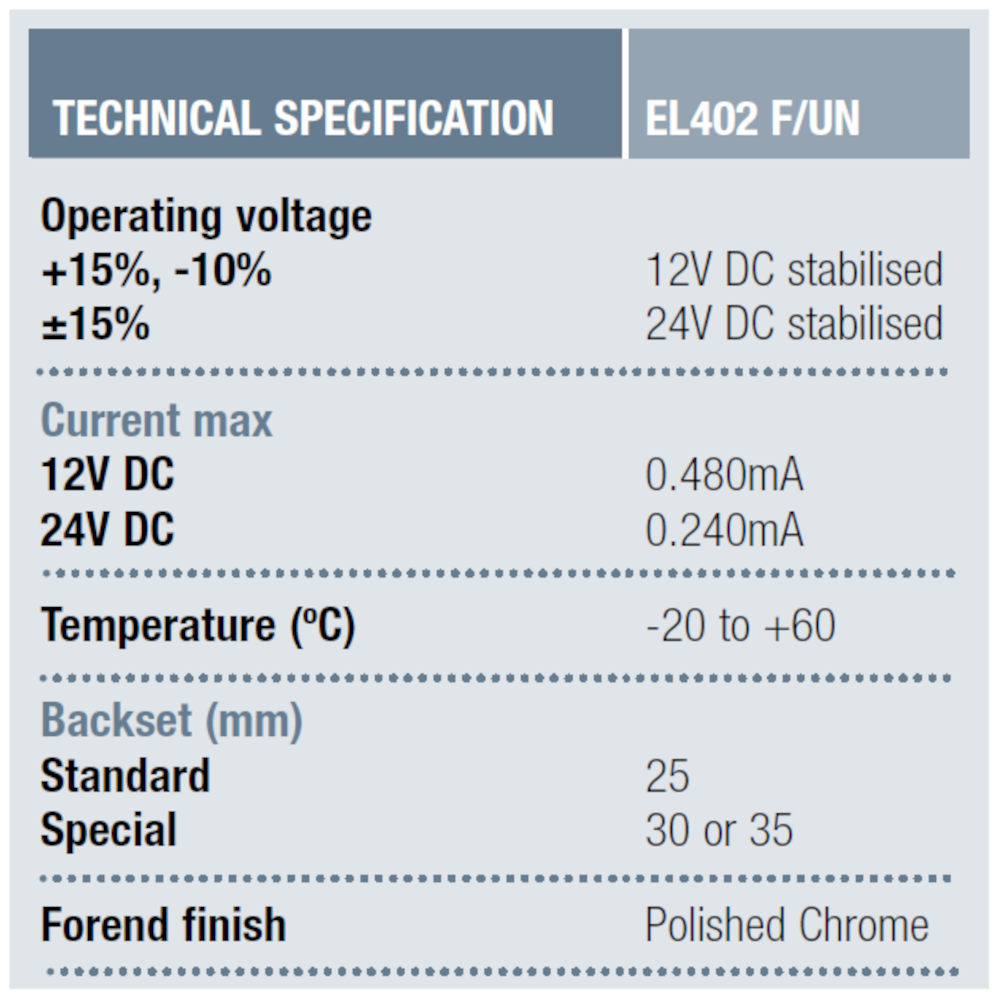

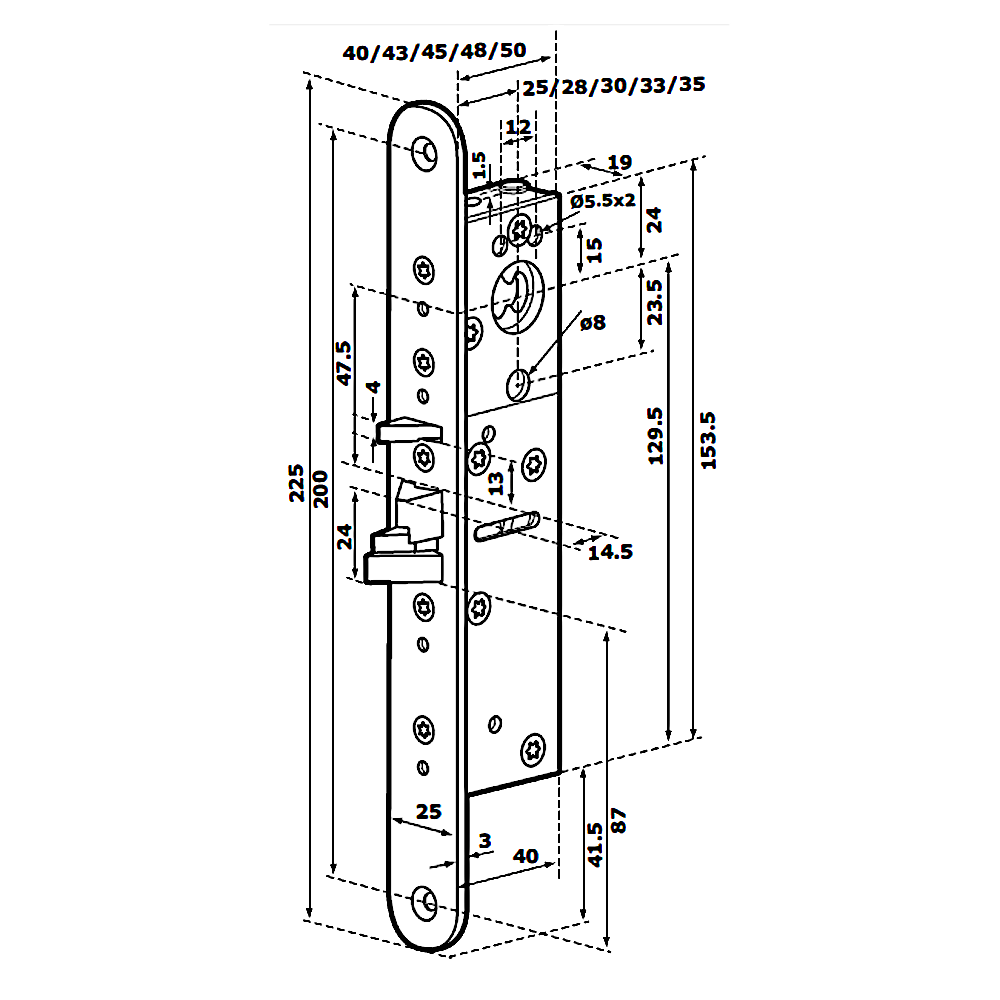

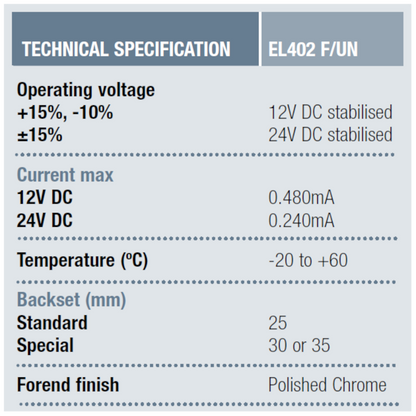

Specifications
Backset
25mm to 35mm
Body Height
153.5mm
Body Width
19mm
Faceplate Height
225mm
Faceplate Width
25mm
Finish
Polished Chrome
Handed
No
Input Voltage
12/24V DC
Key Override
Yes (Cylinder Purchased Separately)
Monitored
Yes
Pack Quantity
1
Product References
L23573
Barcode References
6416495235737
* Information above is accurate at the time of entry and may be subject to change at any time.
