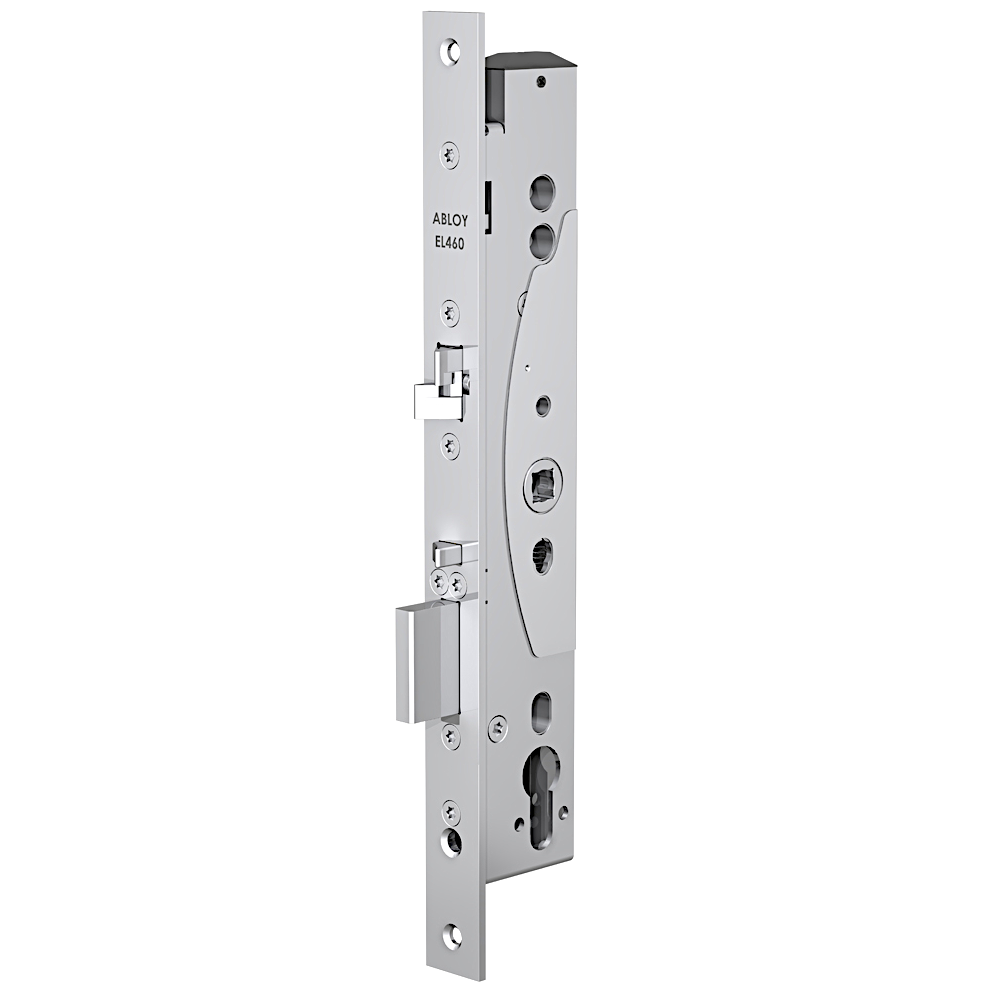

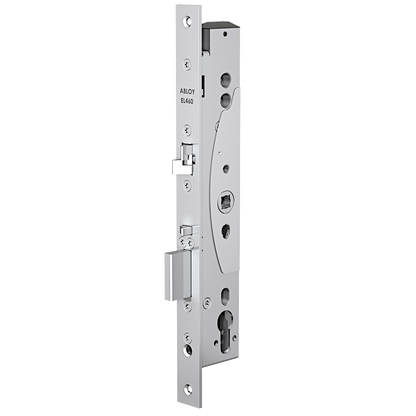

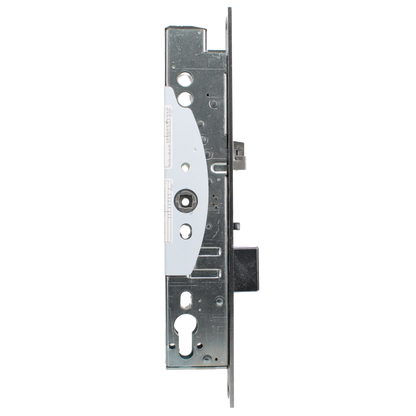

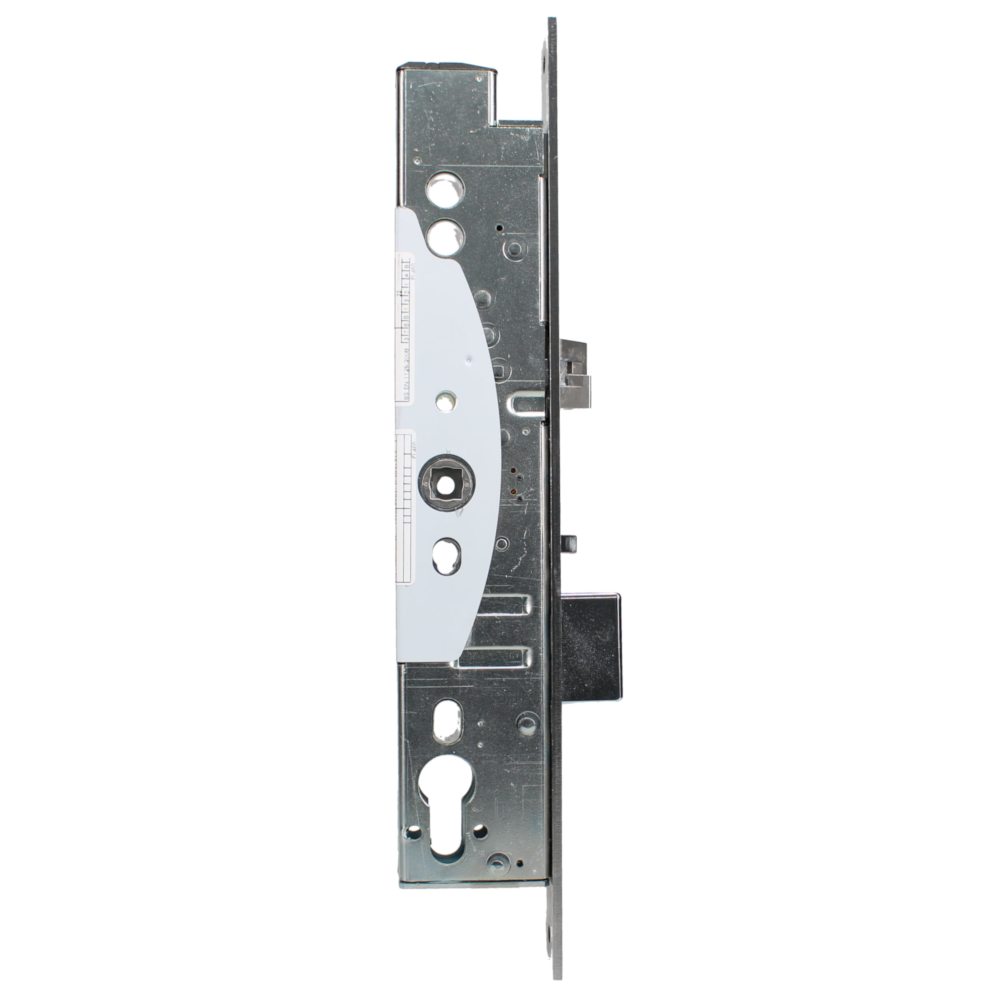

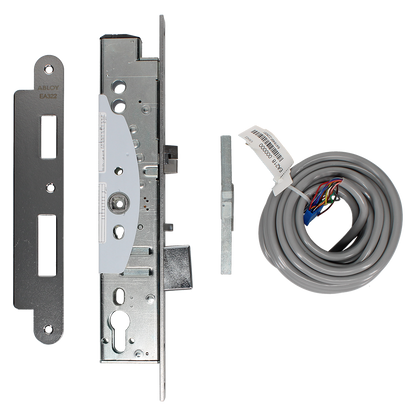

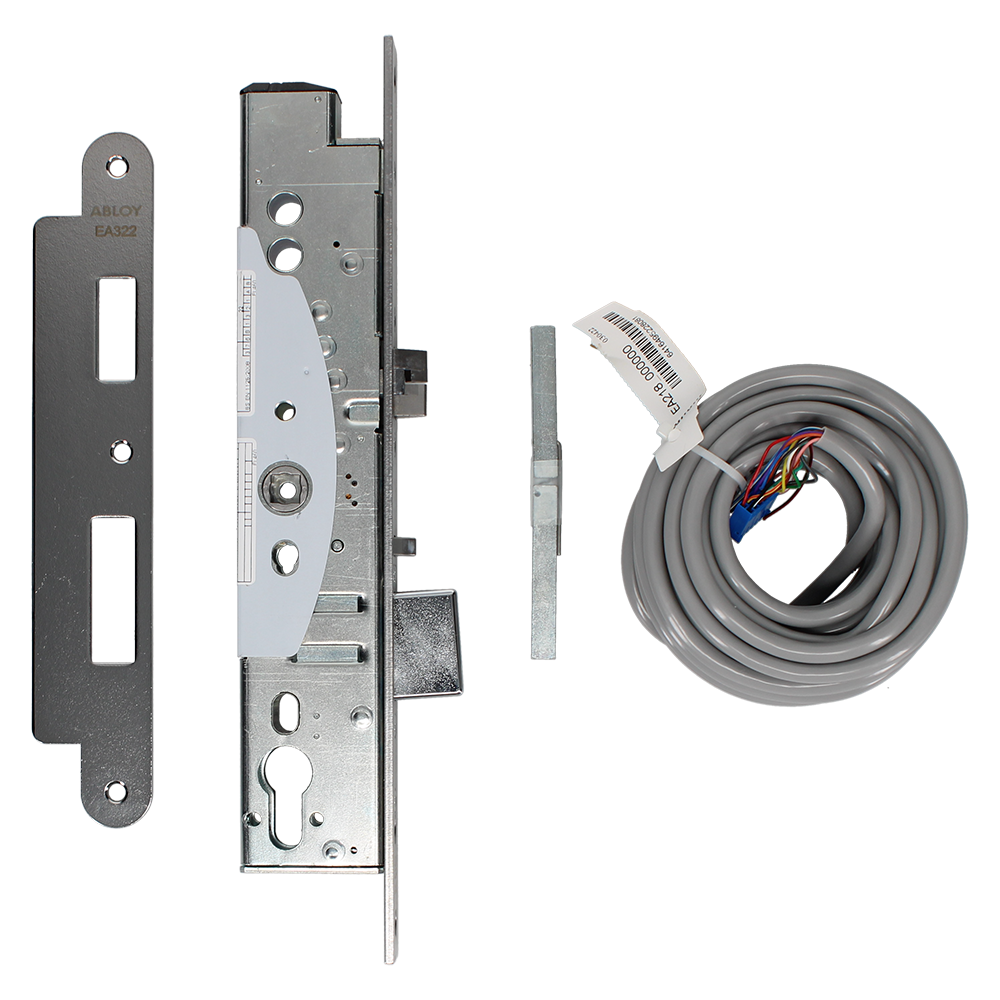

ABLOY EL460 Narrow Stile DIN Electric Lock

The Abloy EL460 is a high-security, handle-controlled electric lock designed for narrow profile doors or aluminium doors. It features a solenoid mechanism that controls the external handle, which remains inactive until engaged by an access control system, ensuring secure entry management. The internal handle operates mechanically at all times, providing immediate egress and compliance with safety standards such as BS EN 179 and BS EN 1125 when paired with appropriate hardware. The lock is non-handed, allowing for easy installation on doors of any orientation, and includes a reversible trigger bolt.

It offers on-site configurability between fail-safe and fail-secure modes to suit specific security needs. Additionally, the EL460 is equipped with monitoring capabilities for bolt position, door status, and handle operation, facilitating integration with security systems.

ABLOY EL460 Narrow Stile DIN Electric Lock

Features

• External handle activation via access control
• Internal handle always active for emergency egress
• Non-handed reversible trigger bolt - suitable for left or right-handed doors
• Easily switchable between fail-unlocked and fail-locked settings
• Meets BS EN 179 and BS EN 1125 when used with appropriate hardware, ensuring safe egress
• Monitors bolt position, door status, and handle operation for security system integration

Finishes

• Satin Stainless Steel

Categories

• Access Control
• Electric Locking
• Electric Lock
• Abloy

Our ABLOY EL460 Narrow Stile DIN Electric Lock from Abloy Security is a quality tested product at a reasonably low price.

If you need any further information or are looking for an alternative size or similar item please contact us.
