Brand: Abloy Security
ABLOY EL560 DIN Electric Lock EN179 Compliant Package 1E
ABLOY EL560 DIN Electric Lock EN179 Compliant Package 1E
By purchasing you are agreeing to our Terms of Sale.
Low stock: 3 left
Couldn't load pickup availability

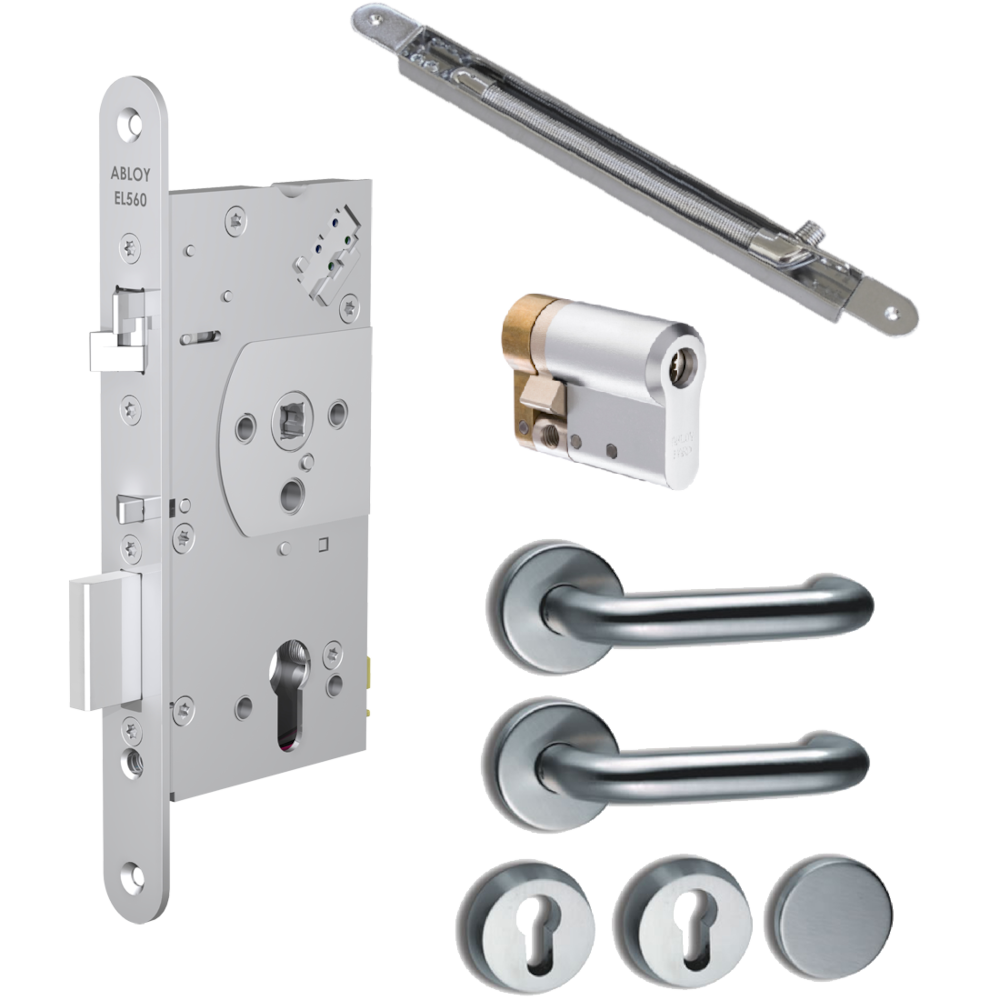

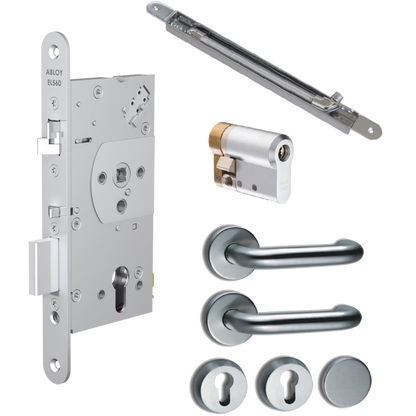

Abloy EL560 package 1E containing items needed for a fully compliant specification to EN179. Includes EL560 solenoid lockcase, CY326 single euro cylinder, EA280 concealed door loop and 60-0319-SSS handle set.
It is suitable for wood or metal door applications with handle operation. The inside handle always operates and the outside handle is controlled and activated on signal from access control system or by key override at all times from outside.
ABLOY EL560 DIN Electric Lock EN179 Compliant Package 1E
Features
- Includes EL560 solenoid lock, single cylinder (CY326 VL), concealed door loop (EA280) and handle set (60-0319-SSS)
- EN179 compliant package - EN1634-1, EN61000-6-1, EN1303 (Cylinder), EN14846
- 65mm backset
Categories
- Access Control
- Electric Locking
- Electric Lock
- Abloy
Our ABLOY EL560 DIN Electric Lock EN179 Compliant Package 1E from Abloy Security is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
| Specifications | |
|---|---|
| Backset | 65mm |
| Fire Tested | Yes |
| Pack Quantity | 1 |
| Standards | EN61000-6-1:2007,UK Conformity Assessed (UKCA),BS EN 1634-1,CE Marked,BS EN 179 |
| Product References | L36559 |
| Barcode References | 5056240154152 |
| * Information above is accurate at the time of entry and may be subject to change at any time. | |
