ABLOY EL580 Electric Lock
ABLOY EL580 Electric Lock
By purchasing you are agreeing to our Terms of Sale.
Low stock: 3 left
Couldn't load pickup availability

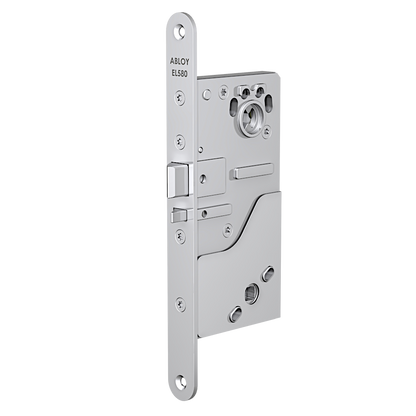

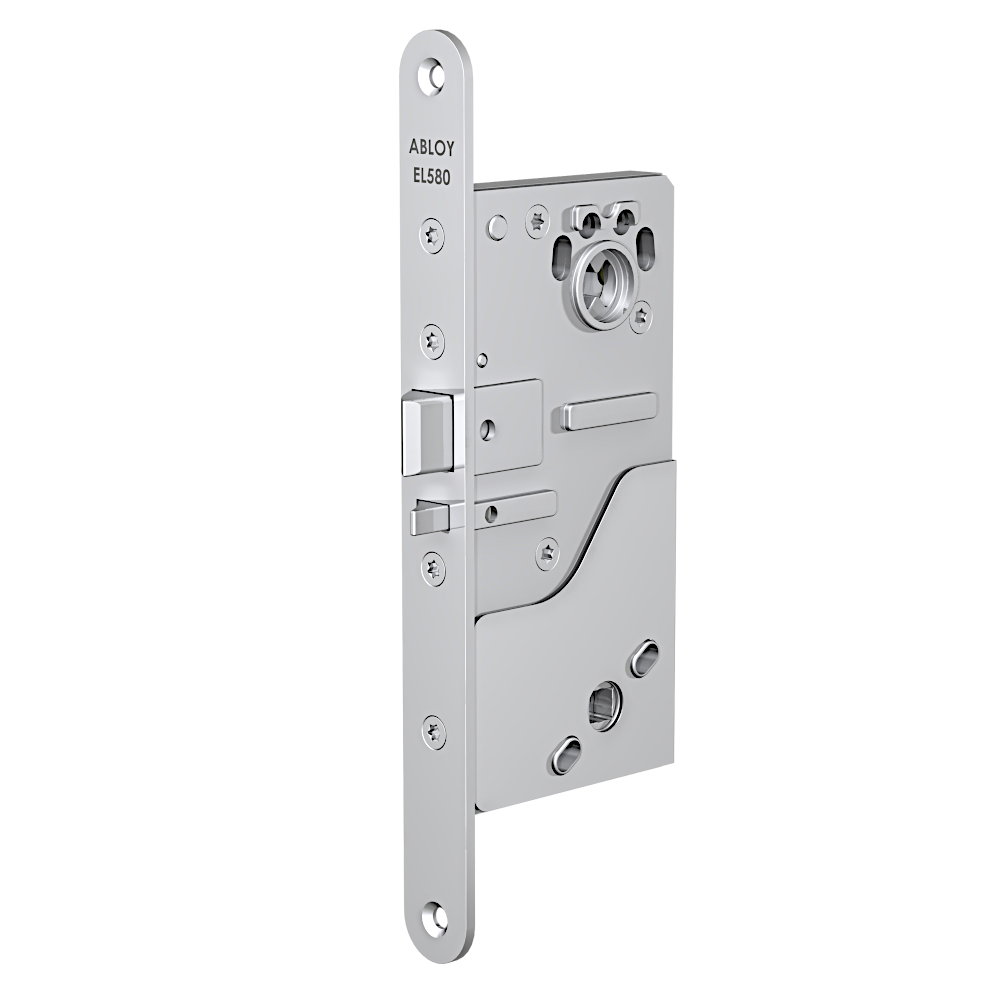

The Abloy EL580 is a high-security, handle-controlled electric solenoid lock designed for medium-traffic wooden or metal doors. It can be electrically controlled by an access control system or by a remote control system such as timer, keypad or push button. Automatically deadlocking when the door is closed the outside handle is electrically controlled, and the lock can always be opened using the inside handle. In order to function correctly, the handle requires a split spindle. Please note that the EL580 cannot be used in doors with door automatics.
ABLOY EL580 Electric Lock
Features
- Settable latch out throw: 14 mm or 20 mm
- Provides latch and bolt position feedback for real-time status
- Easily switchable between fail-unlocked and fail-locked settings
- Compatible with both left and right handed doors
- 50mm backset
Finishes
- Satin Stainless Steel
Categories
- Access Control
- Electric Locking
- Electric Lock
- Abloy
Our ABLOY EL580 Electric Lock from Abloy Security is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
| Specifications | |
|---|---|
| Backset | 50mm |
| Body Height | 150mm |
| Body Width | 19.5mm |
| Centres | 105mm |
| Faceplate Height | 225mm |
| Faceplate Width | 22mm |
| Finish | Satin Stainless Steel |
| Handed | No |
| Input Voltage | 12/24V DC |
| Key Override | Yes (Cylinder Purchased Separately) |
| Monitored | Yes |
| Pack Quantity | 1 |
| Standards | CE Marked,UK Conformity Assessed (UKCA) |
| Product References | L36560 |
| Barcode References | 5056240154169 |
| * Information above is accurate at the time of entry and may be subject to change at any time. | |
