ALPRO AL110 Series 12V/24V DC Mortice Release
ALPRO AL110 Series 12V/24V DC Mortice Release
By purchasing you are agreeing to our Terms of Sale.
Low stock: 10 left
Couldn't load pickup availability

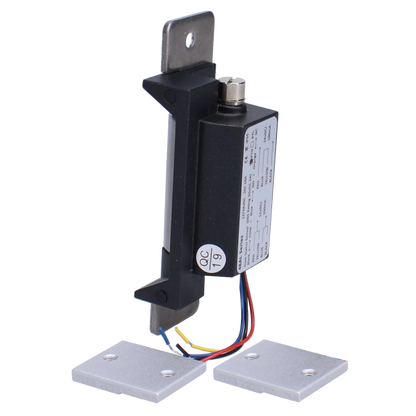

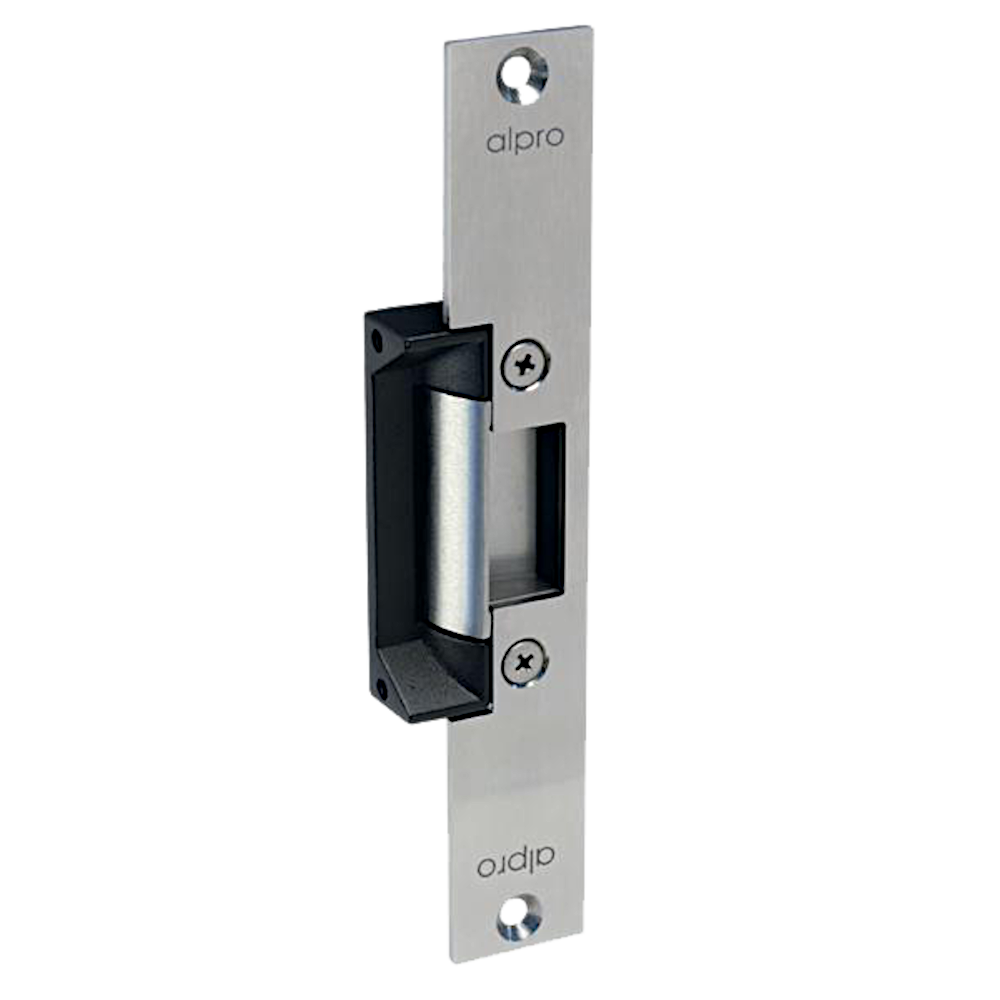

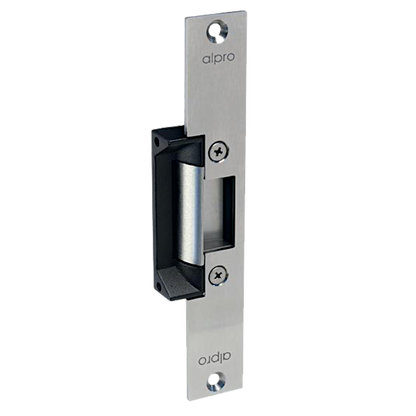

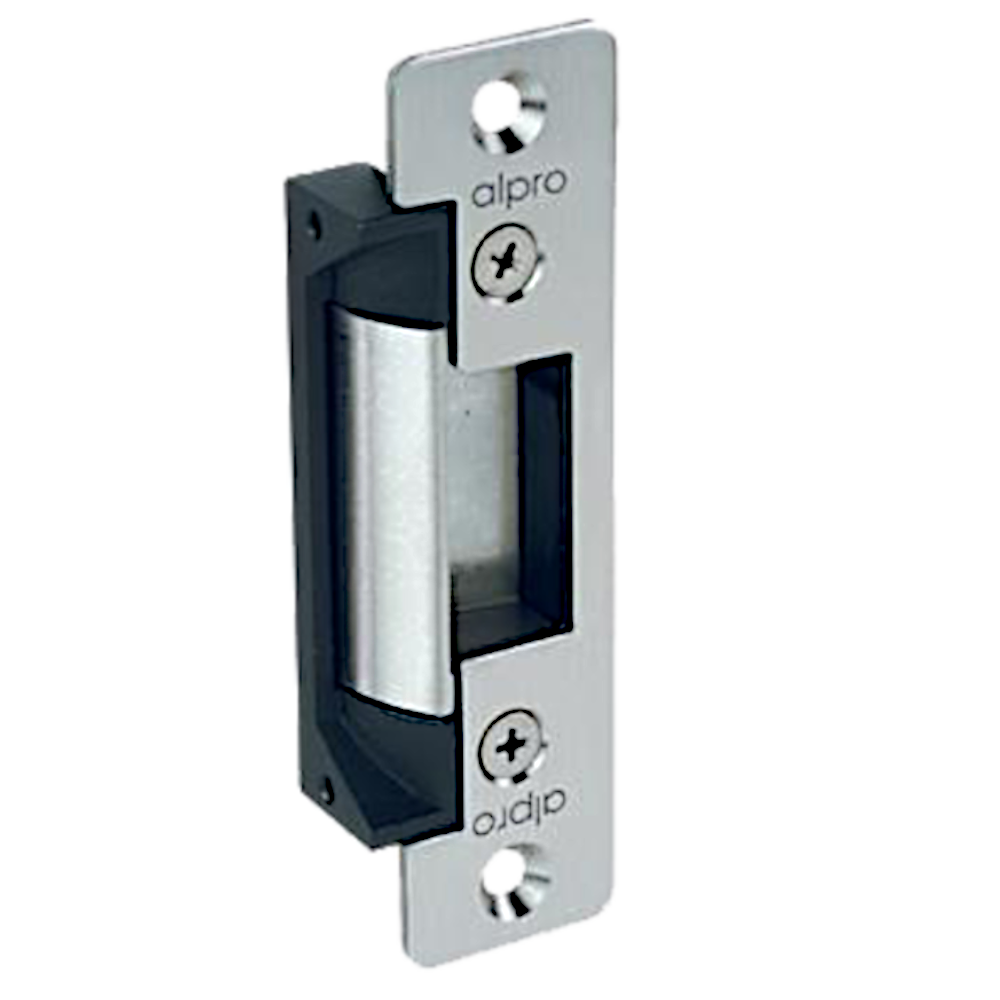

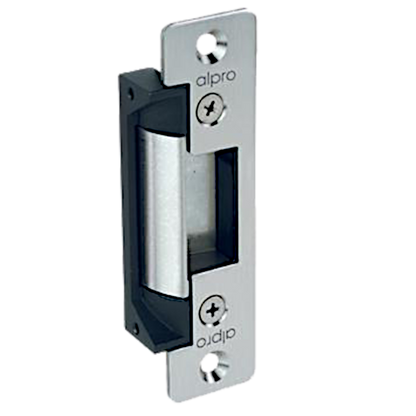

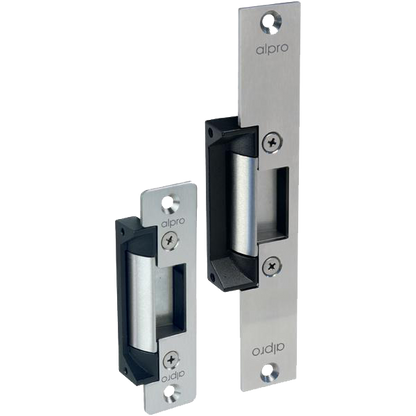

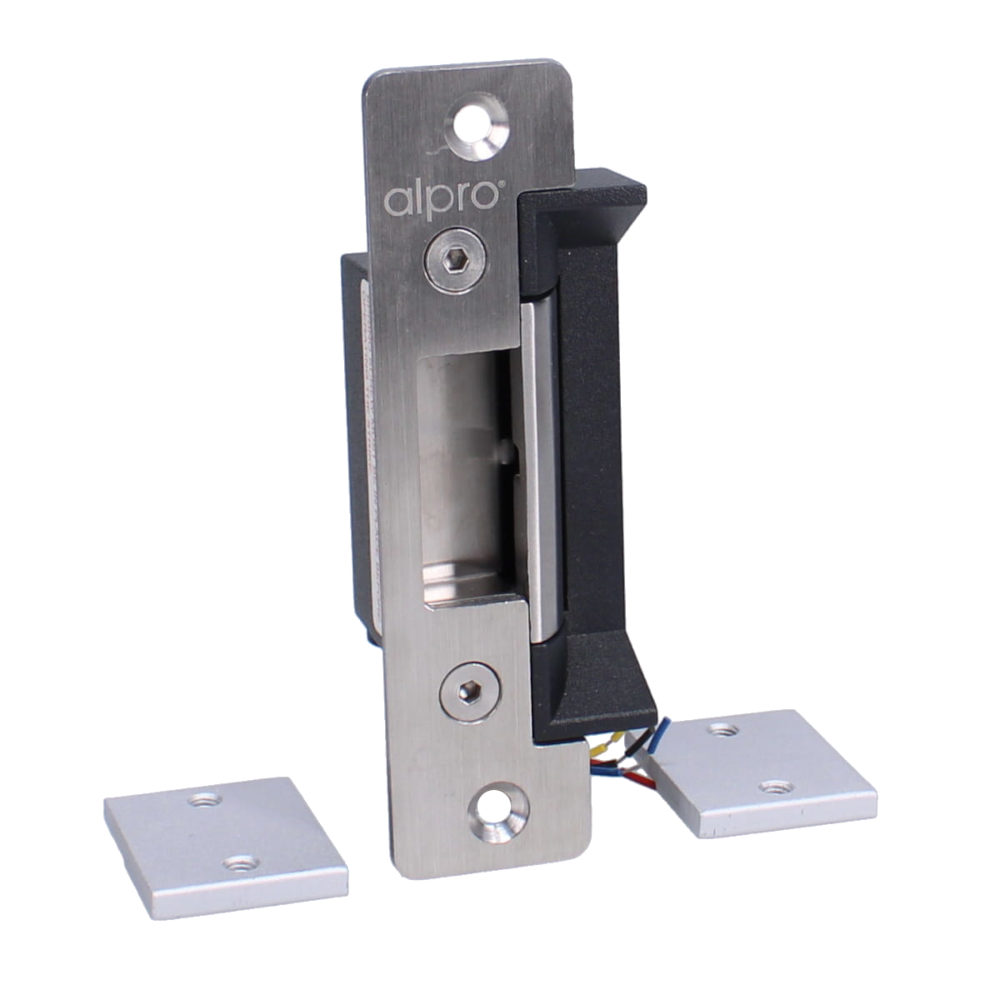

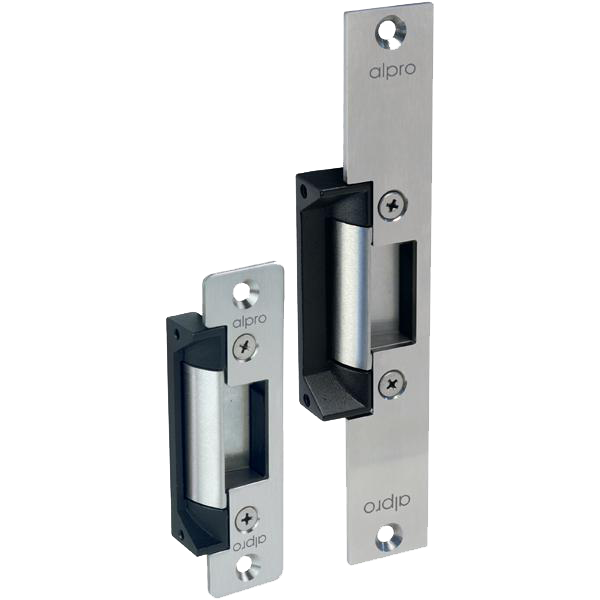

The AL110 electric strike series is an ANSI style security strike complete with stainless steel short or long faceplates for use in metal or timber door applications. The electric door strike is designed with a moveable stainless steel jaw, which when an electrical current is applied either opens or remains in the locked position. In this way the traffic using the door can be rigorously controlled.
ALPRO AL110 Series 12V/24V DC Mortice Release
Features
- 1750Kg Holding force
- Deep jaw - accepts a 13mm latch bolt
- Easy to install
- Rated IP56 weather resistance
- 6 year manufacturer's guarantee
- Fail locked/fail unlocked optional
Finishes
- Stainless Steel
Categories
- Access Control
- Electric Locking
- Release
- Alpro
Our ALPRO AL110 Series 12V/24V DC Mortice Release from Alpro is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
| Option Specifications | |
|---|---|
| Body Height | 71mm |
| Faceplate Height | 201mm, 123mm |
| Faceplate Width | 35mm, 32mm |
| Finish | Stainless Steel |
| Input Voltage | 12/24V DC |
| IP Rating | IP56 |
| Jaw Depth | 15mm |
| Jaw Height | 38mm |
| Jaw Width | 16mm |
| Monitored | No |
| Weather Resistant | Yes |
| Adjustable Jaw | No |
| Product References | L18109, L18076, L18075, L18074, L18073 |
| Barcode References | 5055120699196, 5055120698861, 5055120698854, 5055120698847, 5055120698830 |
| * Information above is accurate at the time of entry and may be subject to change at any time. | |
