ALPRO ALP200H Cobalt Electronic Side Load Lock
ALPRO ALP200H Cobalt Electronic Side Load Lock
By purchasing you are agreeing to our Terms of Sale.
Low stock: 2 left
Couldn't load pickup availability

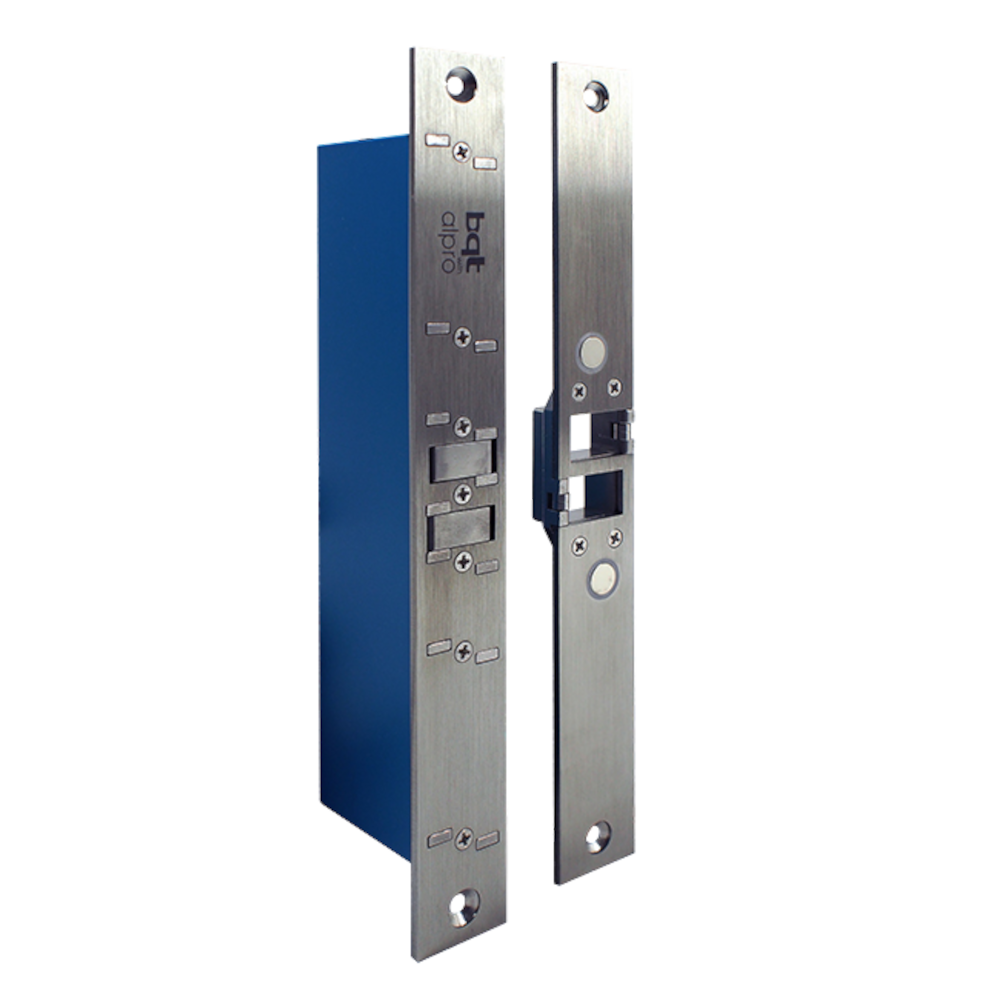

The ALPRO ALP200H-YD30 Electronic Side Load Lock is designed for 180º swing doors. Also known as the Cobalt it is a revolutionary low voltage motor driven electronic lock. The lock has 2 10mm thick stainless steel bolt pins. There is a really useful automatic misalignment adjustment of +/- 8mm. The door can have in excess of 100kg being applied and it will still release instantly when requested. With dual monitoring it has both door and bolt position monitors and is easily converted from fail safe to fail secure by repositioning a single jumper.
ALPRO ALP200H Cobalt Electronic Side Load Lock
Features
- Designed to secure double action doors
- Automatic correction of door misalignment of +/- 8mm
- Simple configuration
- Automatic deadlocking
- 1000kg holding force
- Dual monitoring
Finishes
- Stainless Steel
Categories
- Access Control
- Electric Locking
- Electric Lock
- Alpro
Our ALPRO ALP200H Cobalt Electronic Side Load Lock from Alpro is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
| Specifications | |
|---|---|
| Case Height | 205mm |
| Case Depth | 48mm |
| Case Width | 27mm |
| Faceplate Height | 255mm |
| Faceplate Width | 30mm |
| Finish | Stainless Steel |
| Handed | Non Handed |
| Input Voltage | 12/24V DC |
| Pack Quantity | 1 |
| Screw Centres | 235mm |
| Standards | BS EN 61000 |
| Product References | L32361 |
| Barcode References | 5056240124506 |
