Double rebated panic bolt/latch set to EN1125:2008. To comply with the standard the maximum size per door leaf is 2500mm high x 1300mm wide (up to 2420mm wide for both doors) up to 200kg in weight. This set is intended for use on a double leaf outward opening fire escape route doors.

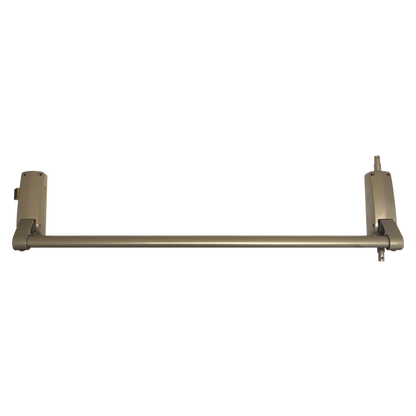

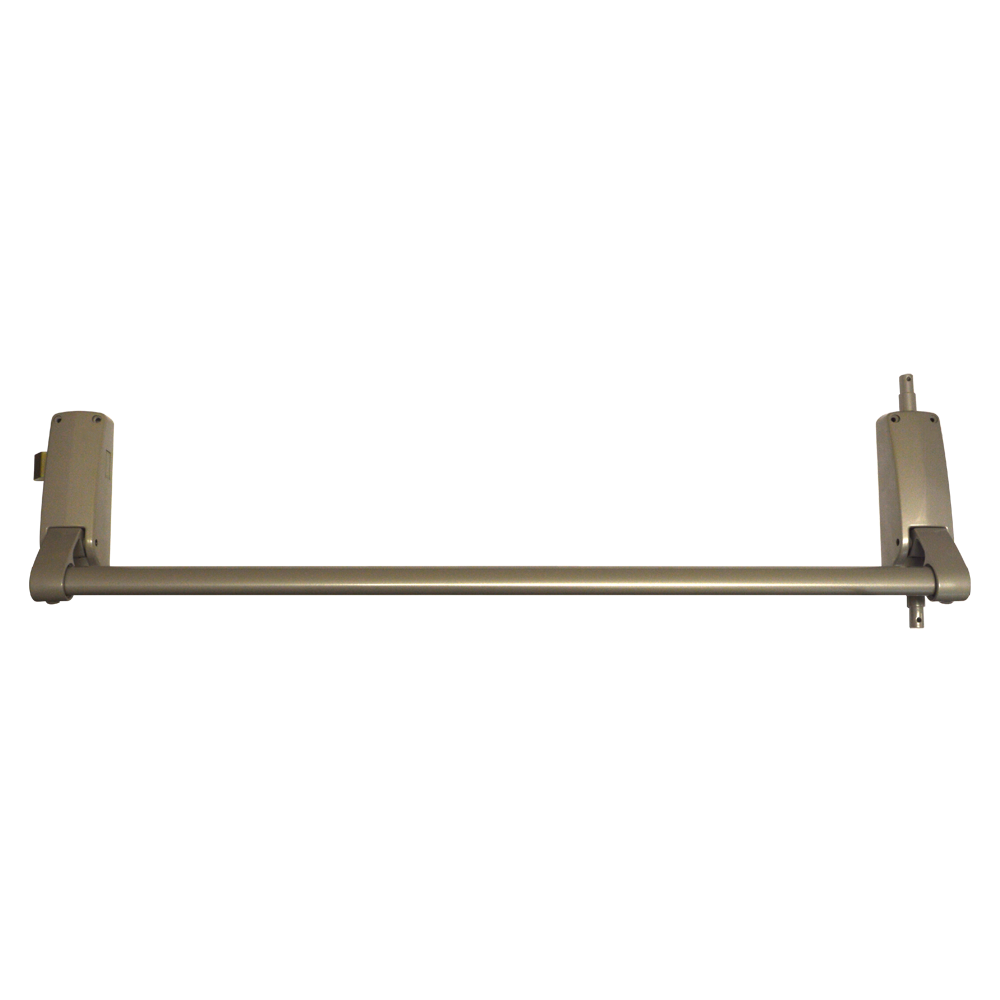

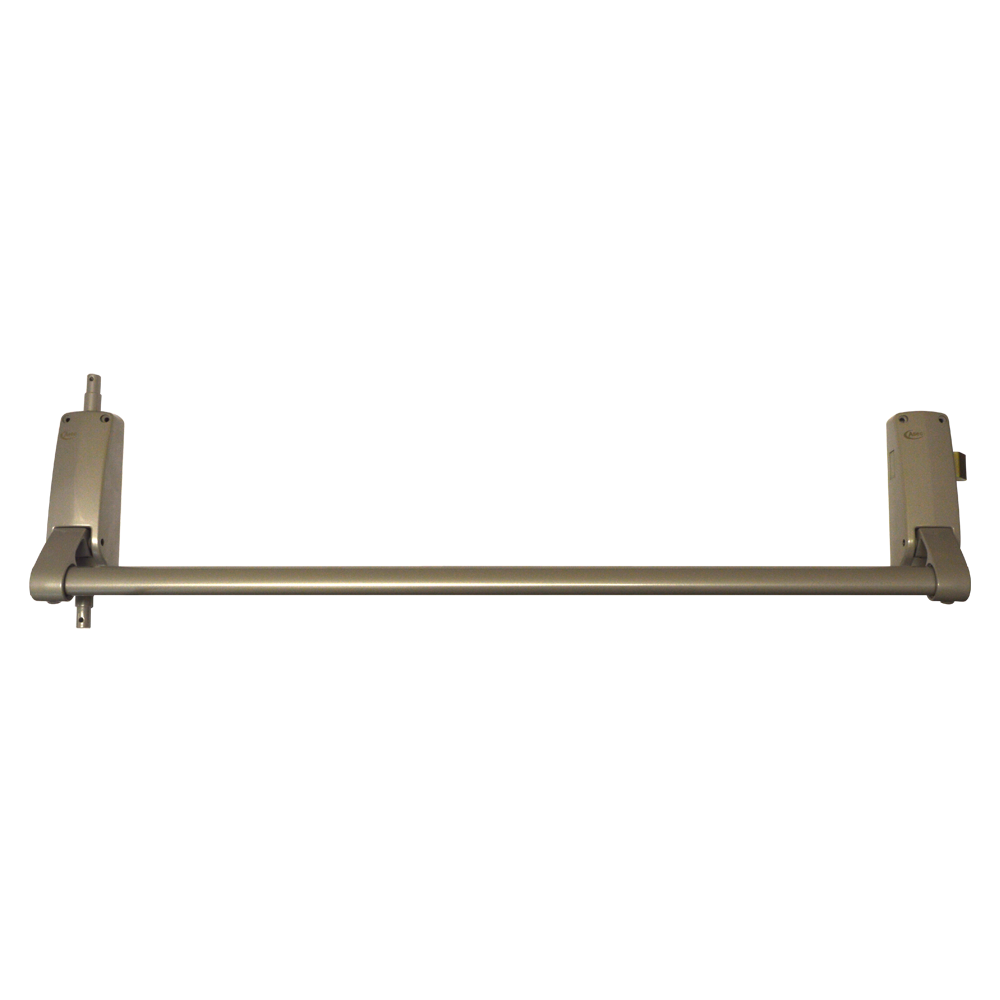

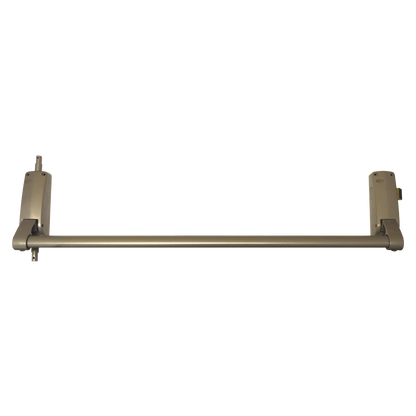

ASEC Double Rebated Panic Bolt Set
Features
Reversible handing
Rim panic latch for first opening leaf
Single panic bolt for second opening leaf
Double door strike to secure the rim panic latch
Finishes
Silver Enamelled
Categories
Architectural Hardware
Exit Hardware
Panic Bolt
Our ASEC Double Rebated Panic Bolt Set from Asec is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
Option Specifications
Finish
Silver Enamelled
Handed
Reversible, Left Hand
Max Door Height
2500mm
Max Door Width
1300mm Single & 2420mm Double
Pack Quantity
1
Product References
AS3104, AS3103
Barcode References
5027968532041, 5027968532034
* Information above is accurate at the time of entry and may be subject to change at any time.
