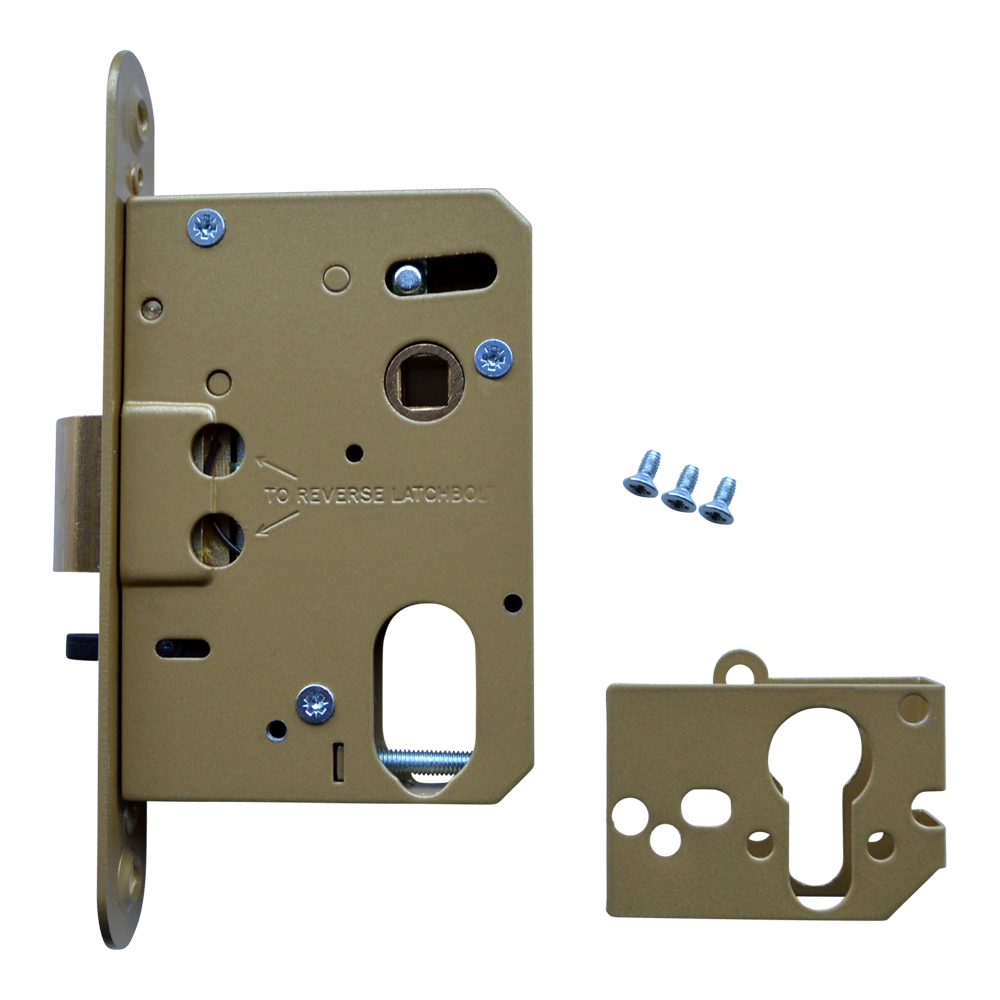

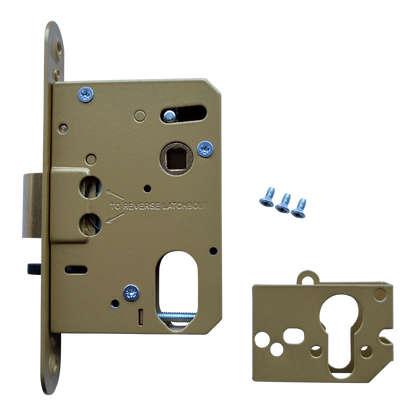

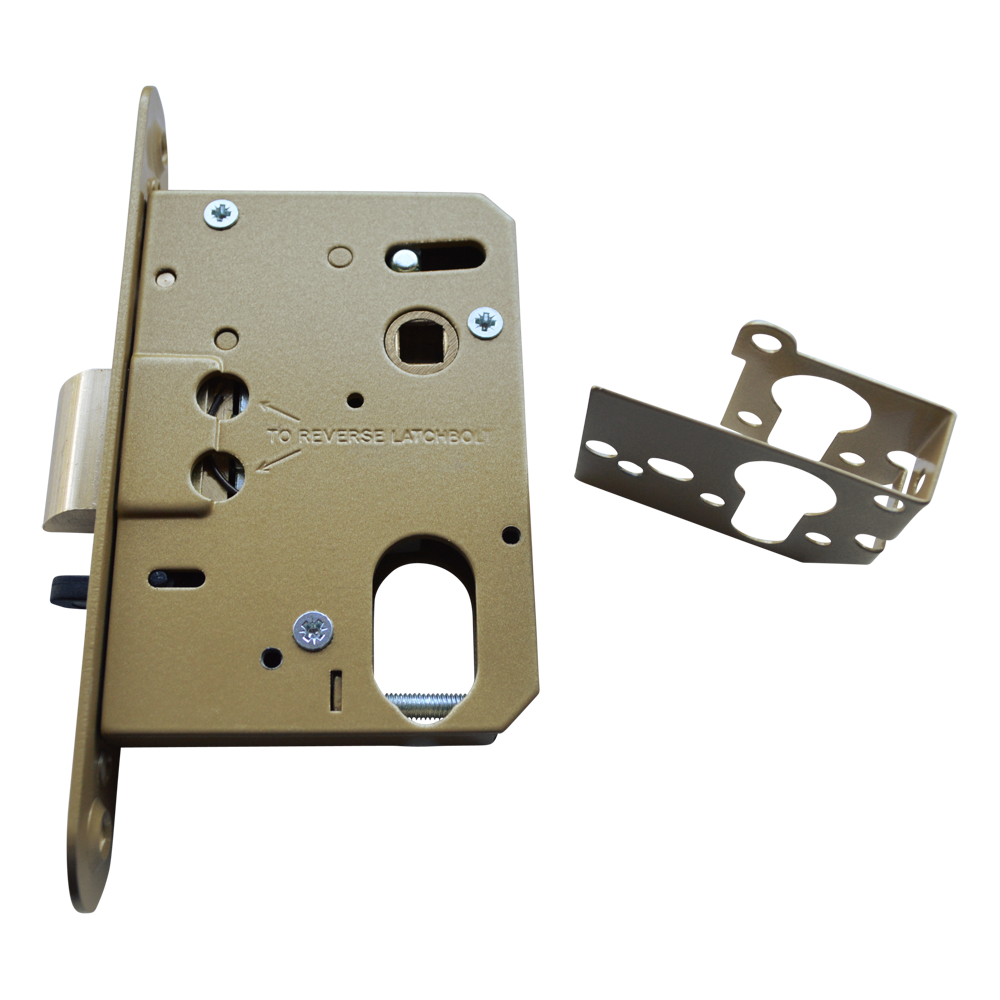

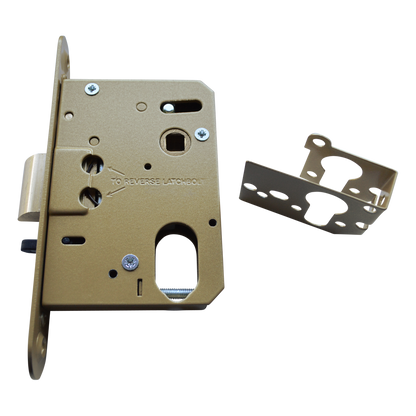

This Asec dual profile mortice nightlatch case has an oval cut out and wrap around plate with a euro cut out held in place with 3 machine screws, it takes a euro cylinder out of the box however to change it to take an oval cylinder simply remove the 3 screws and slide the plate off.

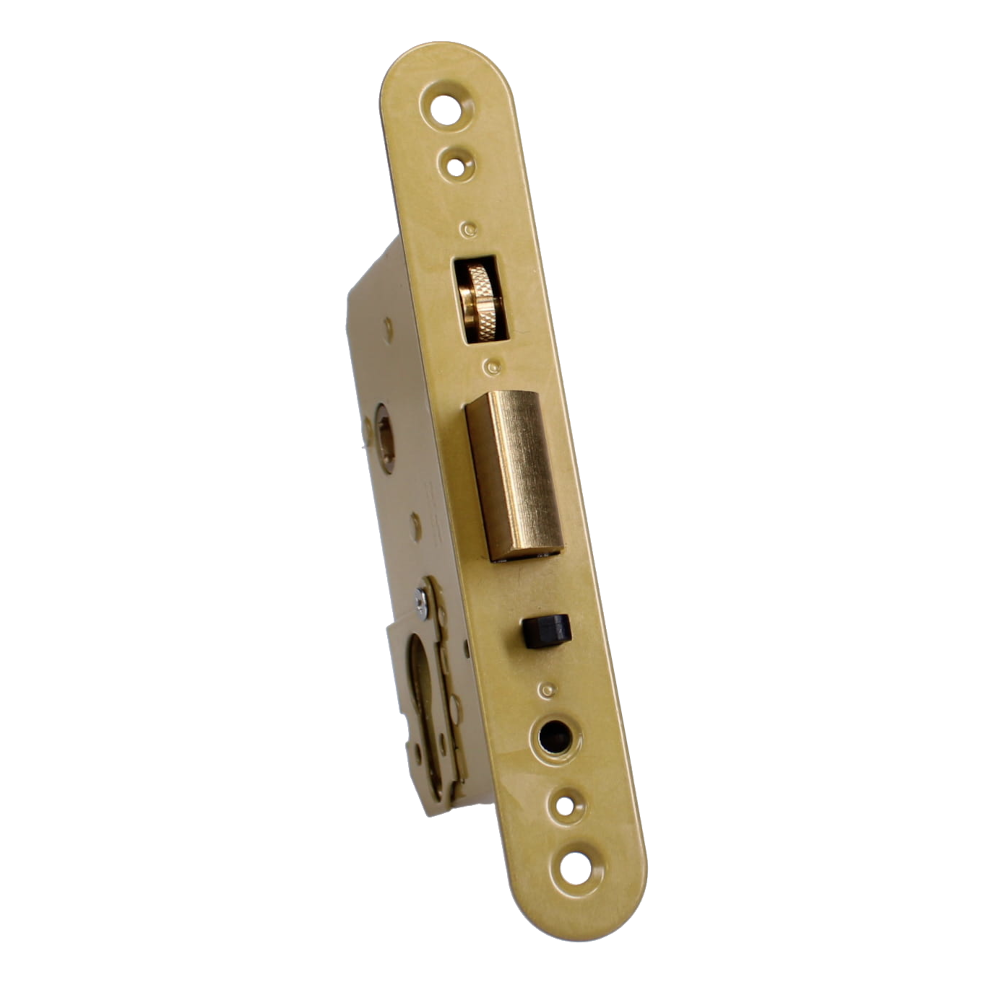

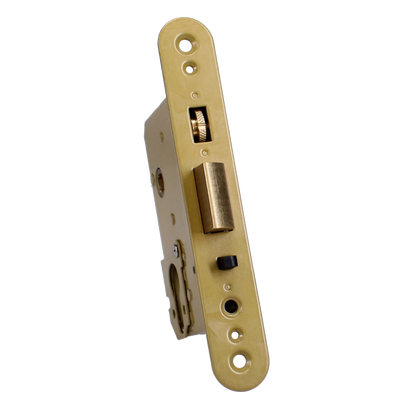

It has an integral knurled wheel roller to hold the latch in the retracted position for passage mode, has a field reversible latch bolt and is fitted with an antithrust device making it ideal for access control applications.

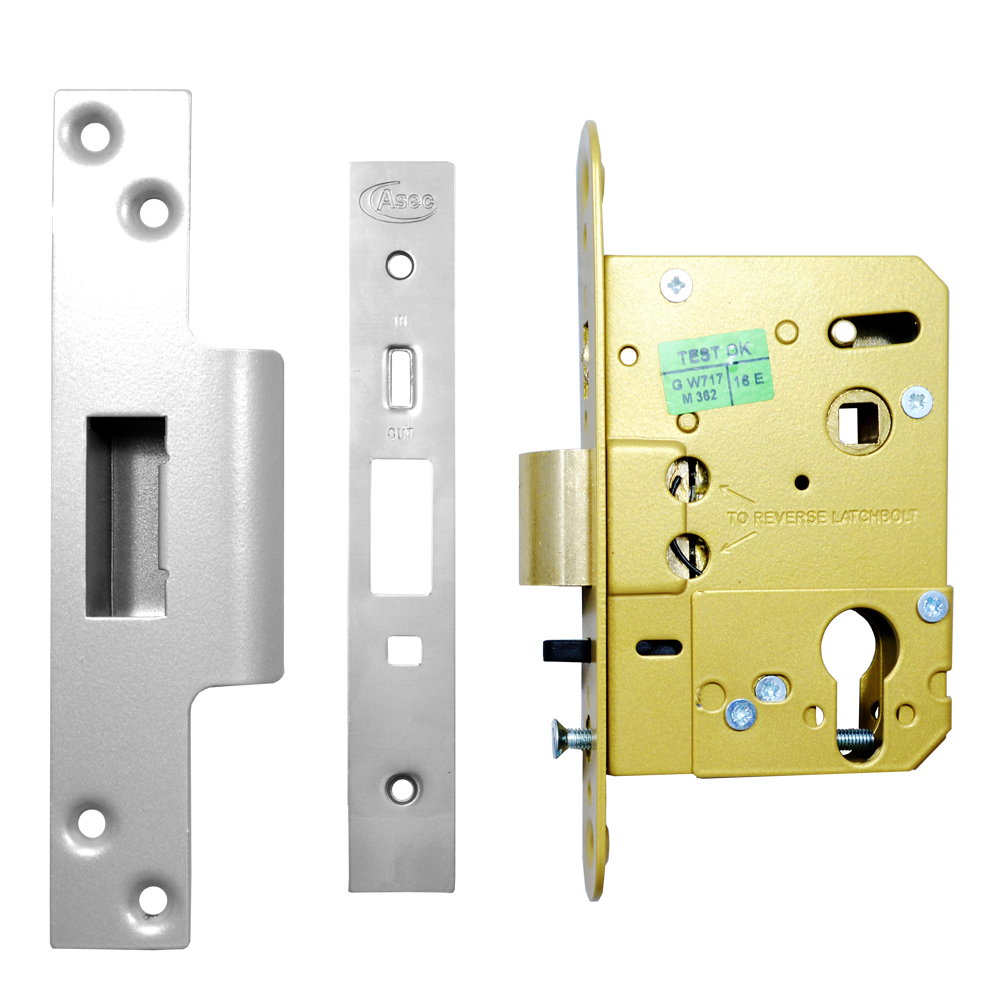

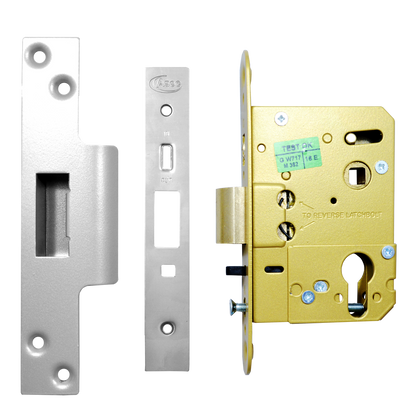

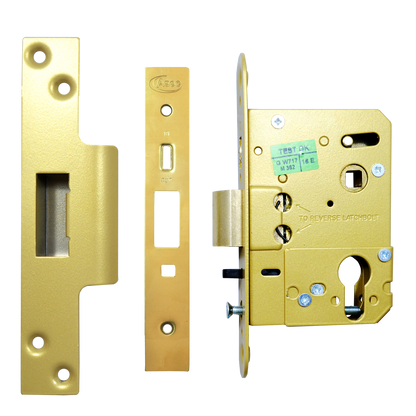

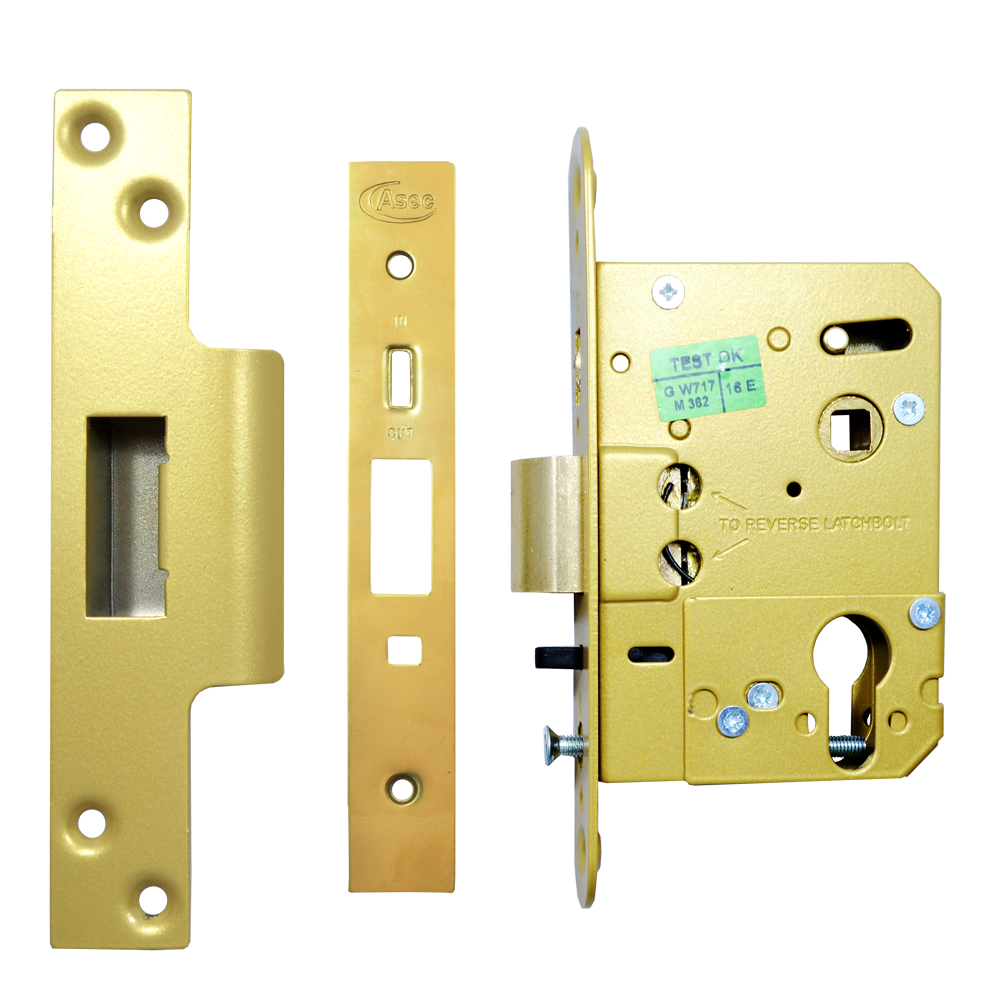

The versatile dual profile cylinder mortice nightlatch comes complete with a box strike, faceplate, fitting instructions (including a scale fitting template) and all fixings.
ASEC Euro / Oval Nightlatch Case
Features
Ideal for use with access control systems
Steel case with conversion plate to convert euro or oval profile cylinder use
Suits oval or euro profile cylinders
Reversible latchbolt with anti-thrust bolt
Centre 48mm
10 year guarantee
Finishes
Polished Brass
Stainless Steel
Categories
Locking Product
Mortice Locks & Latches
Nightlatches
Our ASEC Euro / Oval Nightlatch Case from Asec is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.

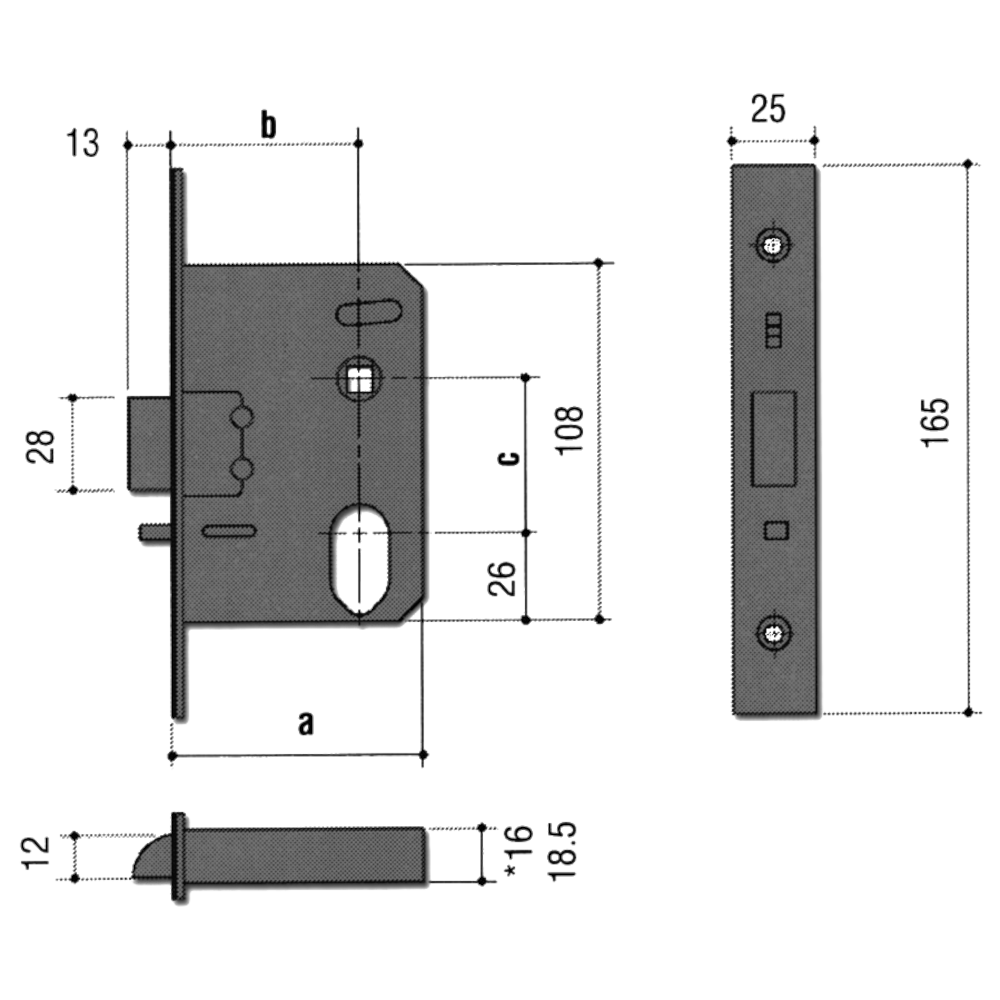

Option Specifications
Backset
57mm
Case Finish
Gold
Case Height
108mm
Case Depth
76mm
Centres
48mm
Finish
Polished Brass, Stainless Steel
Forend Length
165mm
Forend Width
25mm
Handed
Reversible
Mechanism
Euro Cylinder
Pack Quantity
1
Product References
AS1095, AS1094
Barcode References
5010564601570, 5010564601563
* Information above is accurate at the time of entry and may be subject to change at any time.
