Designed for single door applications this monitored slim line magnet, with electro-less nickel plated armature and aluminium housing, has a high visibility LED status light. It has a holding force up to 600lbs (272kg) and the input voltage is switchable between 12V DC or 24V DC.

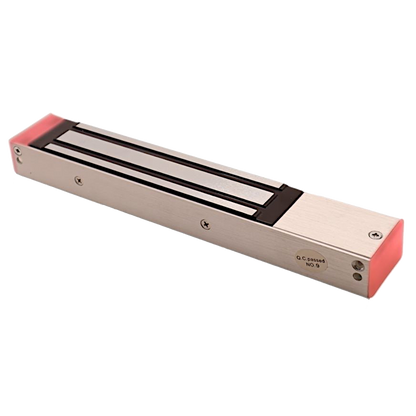

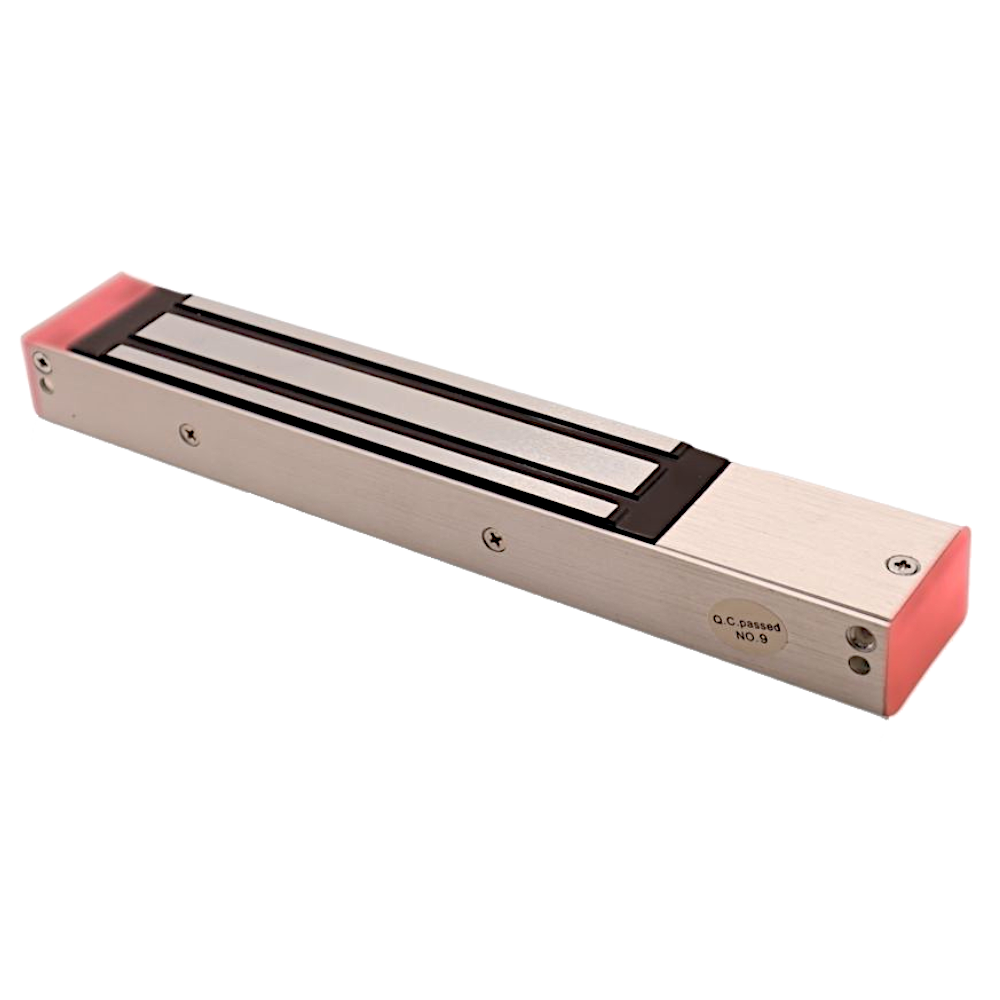

ASEC Slim Line Single Magnet With Large LED Status Light
Features
Fail safe - Power to lock

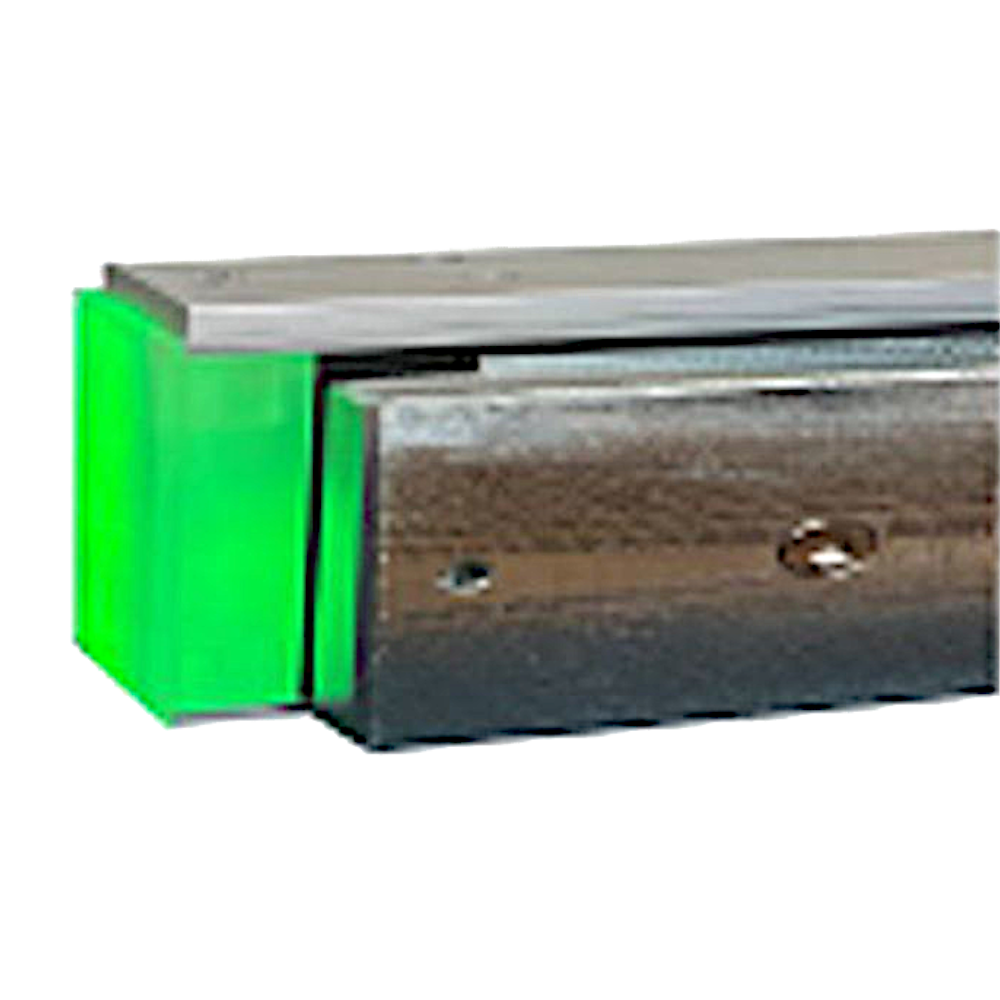

High visibility LED status light (Red/Green)
Aluminium housing
Electro-less nickel plated armature
Operating voltage 12/24Vdc (Selectable)
Holding force up to 600lbs (272kg)
Categories
Access Control
Electric Locking
Magnet
Asec
Slim Line
Our ASEC Slim Line Single Magnet With Large LED Status Light from Asec is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
Specifications
Depth
26mm
Height
26mm
Width
25cm
Input Voltage
12/24V DC
Monitored
Yes
Pack Quantity
1
Product References
AS12403
Barcode References
5056240150277
* Information above is accurate at the time of entry and may be subject to change at any time.
