Brand: Axim
AXIM PR7085 Concealed Rod Panic Bar Exit Device
AXIM PR7085 Concealed Rod Panic Bar Exit Device
By purchasing you are agreeing to our Terms of Sale.
Low stock: 2 left
Couldn't load pickup availability

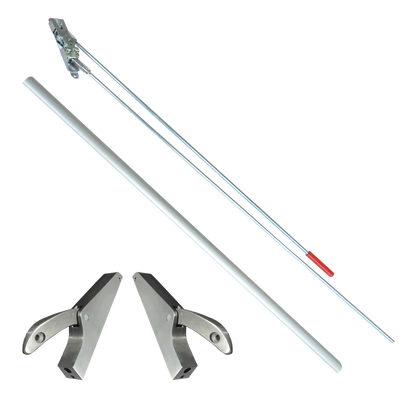

The AXIM PR7085 is a concealed rod panic bar exit device suitable for doors with maximum dimensions of 2135mm high x 1155mm wide. It features an extruded aluminium cross bar with anodised finish and abrasive resistant housings and lever arms. The panic bar has nylon brushes for a silent operation and heavy duty lever springs for ensured durability. The internal mechanism is manufactured from stainless and plated steel, with concealed fixings for an aesthetically appealing appearance. It has 8.5mm diameter steel operating rods with a 16mm bolt throw - the bolt length is adjustable to ensure correct alignment.
AXIM PR7085 Concealed Rod Panic Bar Exit Device
Features
- Suitable for doors up to 1155mm wide and 2135mm high
- Non handed
- Extruded aluminium cross bar with anodised finish
- Durable heavy duty lever springs
- Adjustable bolt length to ensure correct alignment
Finishes
- Silver
Categories
- Architectural Hardware
- Exit Hardware
- Panic Bolt
Our AXIM PR7085 Concealed Rod Panic Bar Exit Device from Axim is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
| Specifications | |
|---|---|
| Finish | Silver |
| Handed | Reversible |
| Max Door Height | 2135mm |
| Max Door Width | 1155mm |
| Pack Quantity | 1 |
| Standards | BS EN 1125 |
| Product References | L31058 |
| Barcode References | 5056240115399 |
| * Information above is accurate at the time of entry and may be subject to change at any time. | |
