• Axim TC-8800-14 End Load Bottom Pivot Assembly TC-8800-14 - Satin Anodised Aluminium
1 1

Brand: Axim

Axim TC-8800-14 End Load Bottom Pivot Assembly

Axim TC-8800-14 End Load Bottom Pivot Assembly

£19.74
£0.00 £19.74
Sale Sold out

By purchasing you are agreeing to our Terms of Sale.

Out of stock

Style

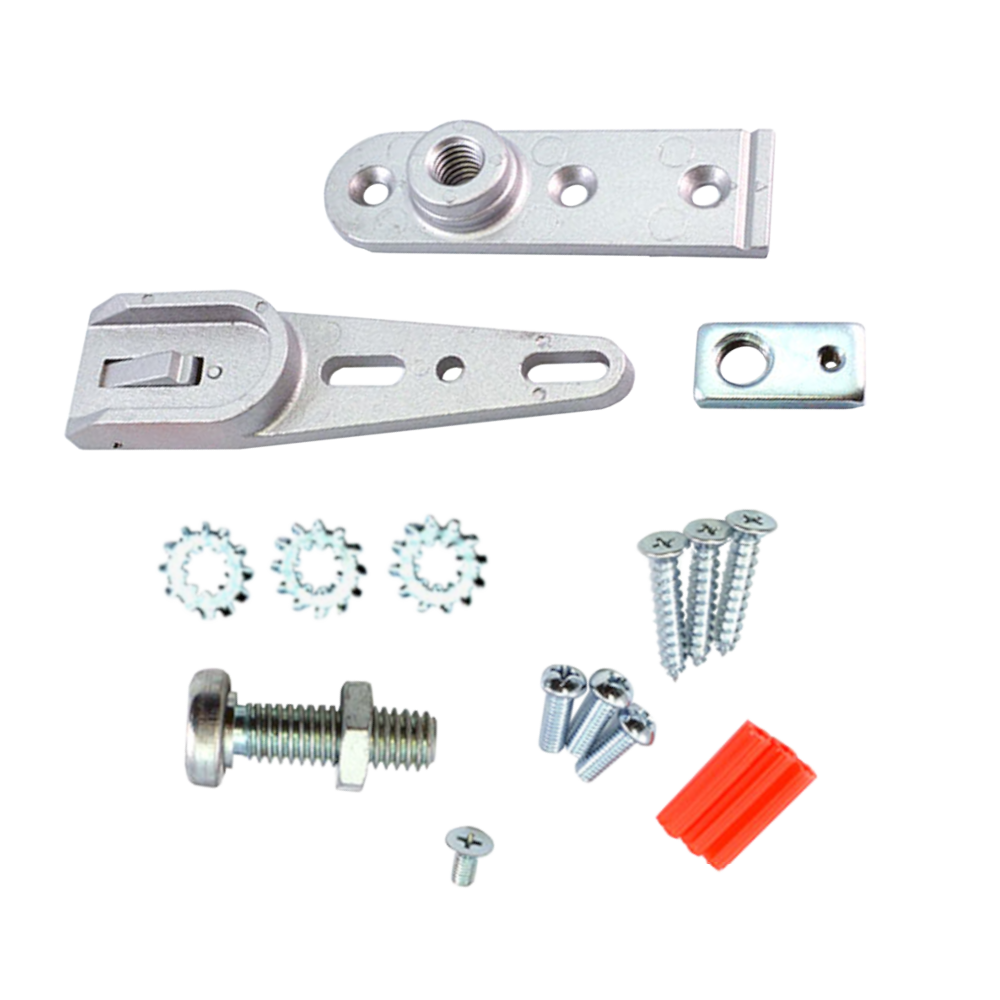

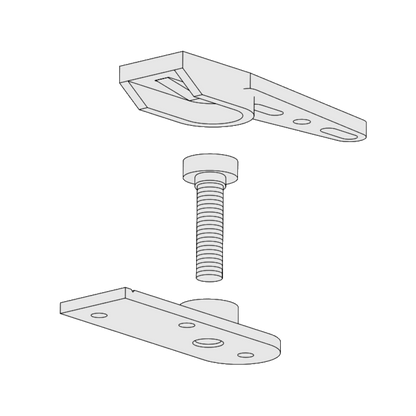

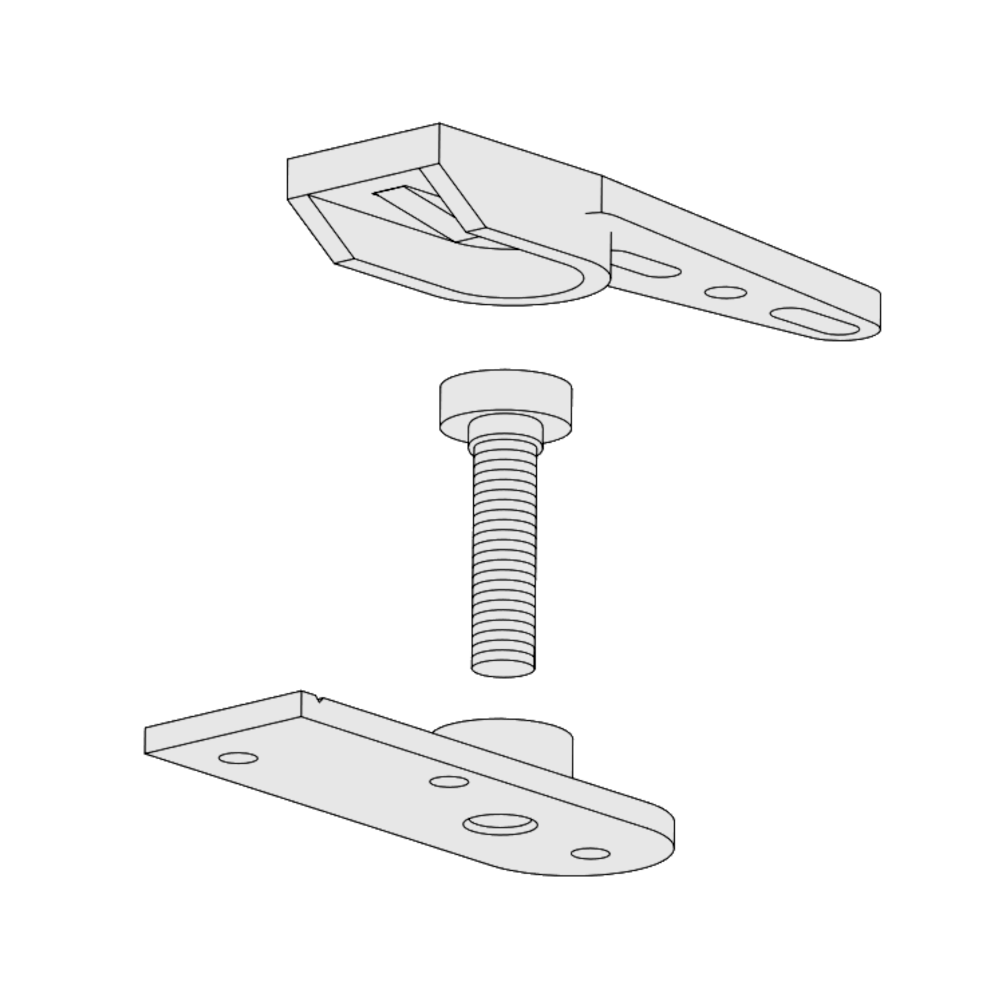

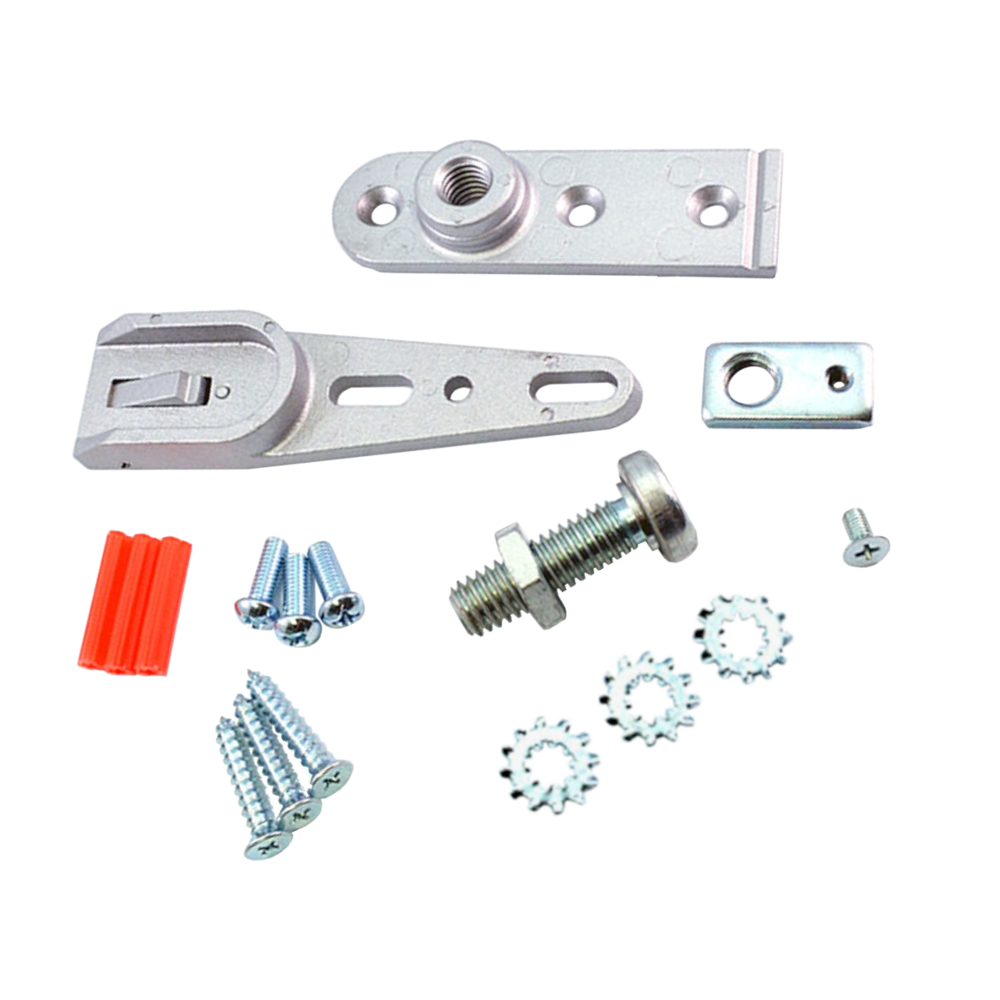

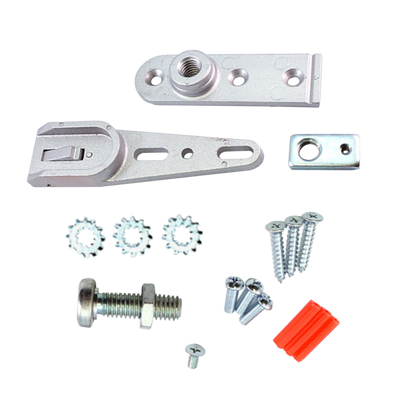

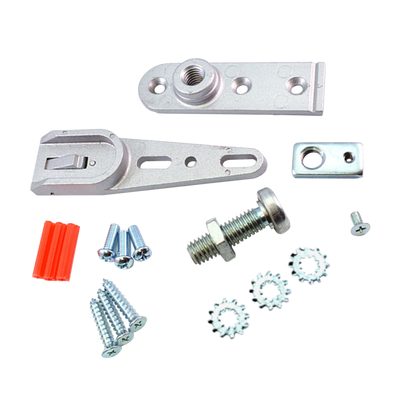

The Axim TC-8800-14 is an end load bottom pivot assembly for use with the Axim 8800 series concealed transom closer. It can be cut down to the required size using the 5mm groove line and is supplied complete with fixings to suit either floor or threshold fitting.

Axim TC-8800-14 End Load Bottom Pivot Assembly

Features

  • Fully height adjustable 31.5mm to 58.5mm
  • One full turn equals 2mm adjustment
  • 100kg max radial bearing loading
  • 70mm standard pivot point
  • Supplied complete with components for floor or threshold fixing

Finishes

  • Satin Anodised Aluminium

Categories

  • Architectural Hardware
  • Door Closer
  • Transom

Our Axim TC-8800-14 End Load Bottom Pivot Assembly from Axim is a quality tested product at a reasonably low price.

If you need any further information or are looking for an alternative size or similar item please contact us.

Specifications
Finish Satin Anodised Aluminium
Max Door Weight 100Kg
Pack Quantity 1
Product References L33569
Barcode References 5056240134253
* Information above is accurate at the time of entry and may be subject to change at any time.
View full details
