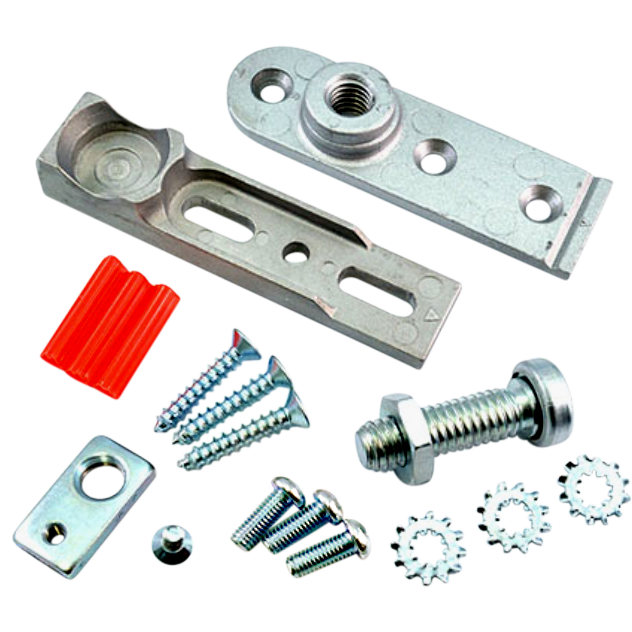

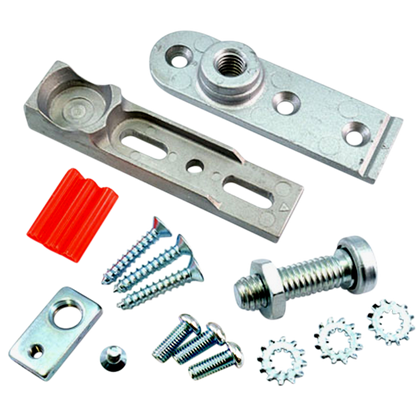

The Axim Universal Bottom Pivot Assembly is a sturdy kit, which can be cut down to the required size using the 5mm groove line. It is supplied complete with fixings to suit either floor or threshold fitting.

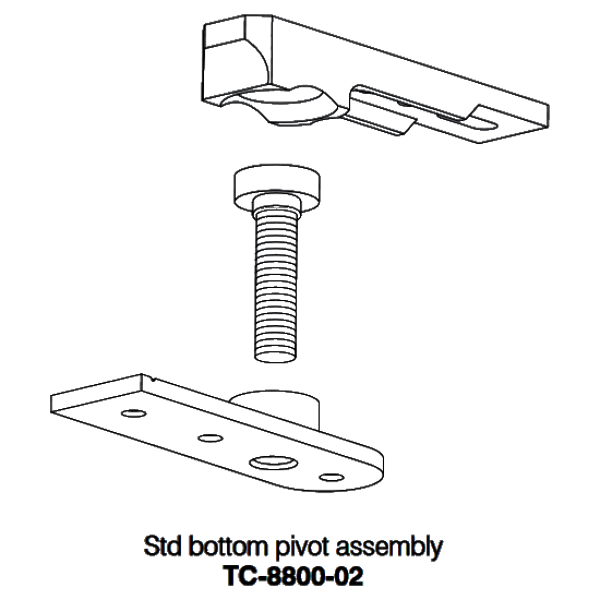

AXIM Universal Bottom Pivot Assembly 8800 Series
Features
Fully height adjustable 31.5mm - 58.5mm

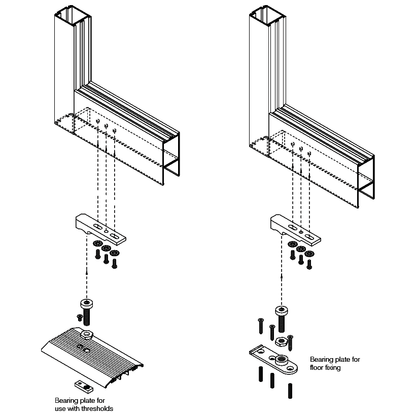

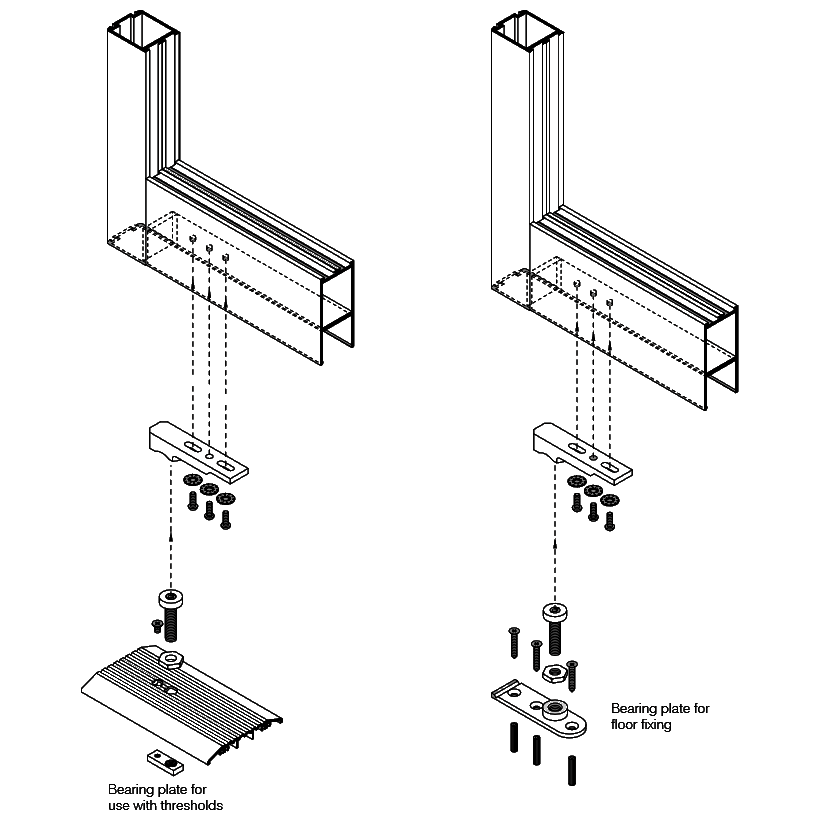

Supplied complete with components for floor or threshold fixing
Maximum load 100g
1 full turn equals 2mm adjustment
Threshold and tie bar secure threaded backplate
Finishes
Satin Anodised Aluminium
Categories
Architectural Hardware
Door Closer
Transom
Our AXIM Universal Bottom Pivot Assembly 8800 Series from Axim is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
Specifications
Finish
Satin Anodised Aluminium
Max Door Weight
100Kg
Pack Quantity
1
Product References
L27111
Barcode References
5055120783567
* Information above is accurate at the time of entry and may be subject to change at any time.
