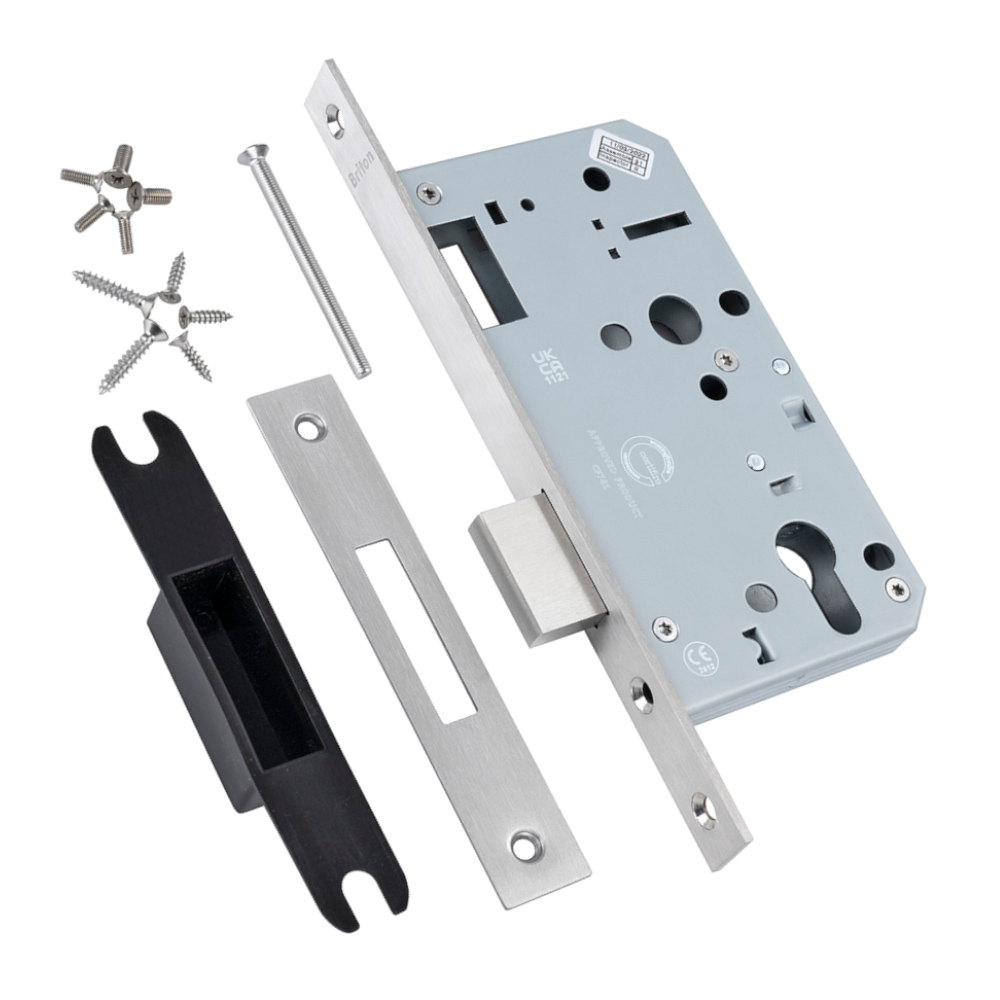

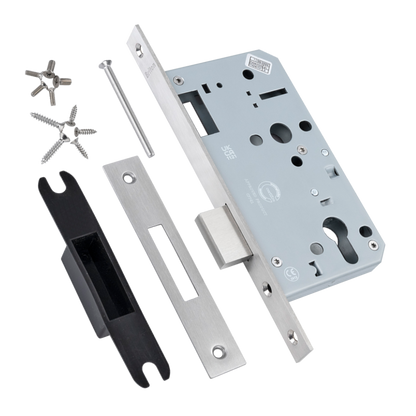

• BRITON 5710 DIN Euro Profile Deadlock Case 60mm Backset Square 5710.60.S.SS - Satin Nickel

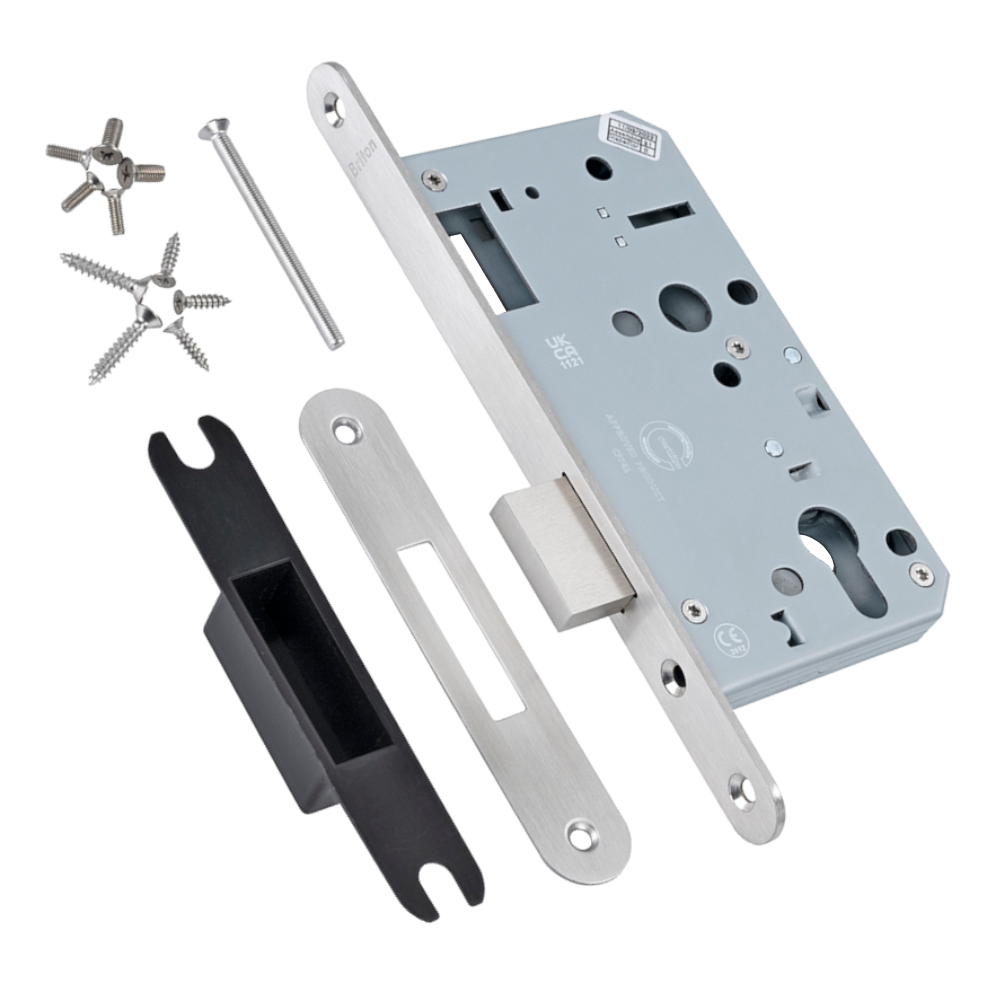

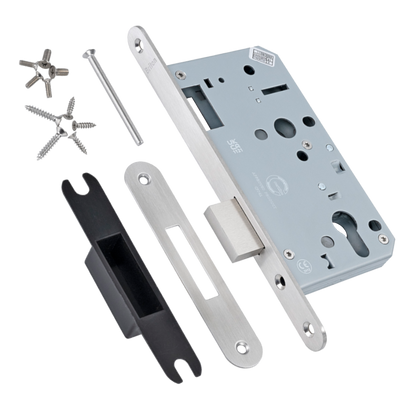

  • BRITON 5710 DIN Euro Profile Deadlock Case 60mm Backset Radius 5710.60.R.SS - Satin Nickel
1 1

Brand: Briton

BRITON 5710 DIN Euro Profile Deadlock Case 60mm Backset

BRITON 5710 DIN Euro Profile Deadlock Case 60mm Backset

£46.28
£0.00 £46.28
Sale Sold out

By purchasing you are agreeing to our Terms of Sale.

Low stock: 6 left

Style

The Briton 5710 is a DIN standard euro profile deadlock for use on doors without lever furniture that require locking. It has a 60mm backset with 72mm centres and one turn of a cylinder will throw the bolt 20mm. The 5710 deadlock has been fire tested to EN 1634-1 for use on fire doors up to 1hr timber / 4hr steel when used with the appropriate intumescent kit (Briton 5000.IP).

BRITON 5710 DIN Euro Profile Deadlock Case 60mm Backset

Features

  • Grade 316 stainless steel single piece round or square forend
  • Galvanised steel lockcase with satin nickel plating for corrosion resistance
  • Centres 72mm
  • Backset: 60mm
  • 20mm single throw bolt
  • Bolt through fixing holes to DIN 18251

Finishes

  • Satin Nickel

Categories

  • Locking Product
  • Mortice Locks & Latches
  • Deadlocks
  • Cylinder - Euro

Our BRITON 5710 DIN Euro Profile Deadlock Case 60mm Backset from Briton is a quality tested product at a reasonably low price.

If you need any further information or are looking for an alternative size or similar item please contact us.

Option Specifications
Backset 60mm
Bolt Throw 20mm
Case Finish Satin Nickel
Case Height 165mm
Case Depth 89mm
Forend Length 235mm
Forend Width 20mm
Mechanism Euro Cylinder
Pack Quantity 1
Standards CE Marked,BS EN 12209:2003, BS EN 12209:2003,CE Marked
Product References L32967, L32966
Barcode References 5050640042064, 5050640042057
* Information above is accurate at the time of entry and may be subject to change at any time.
