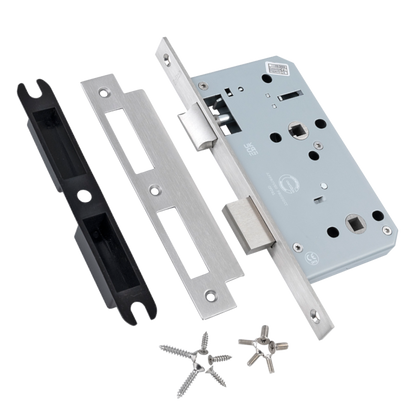

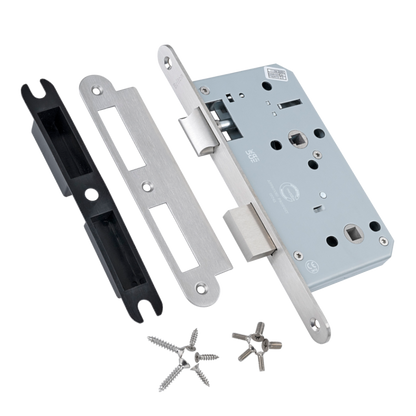

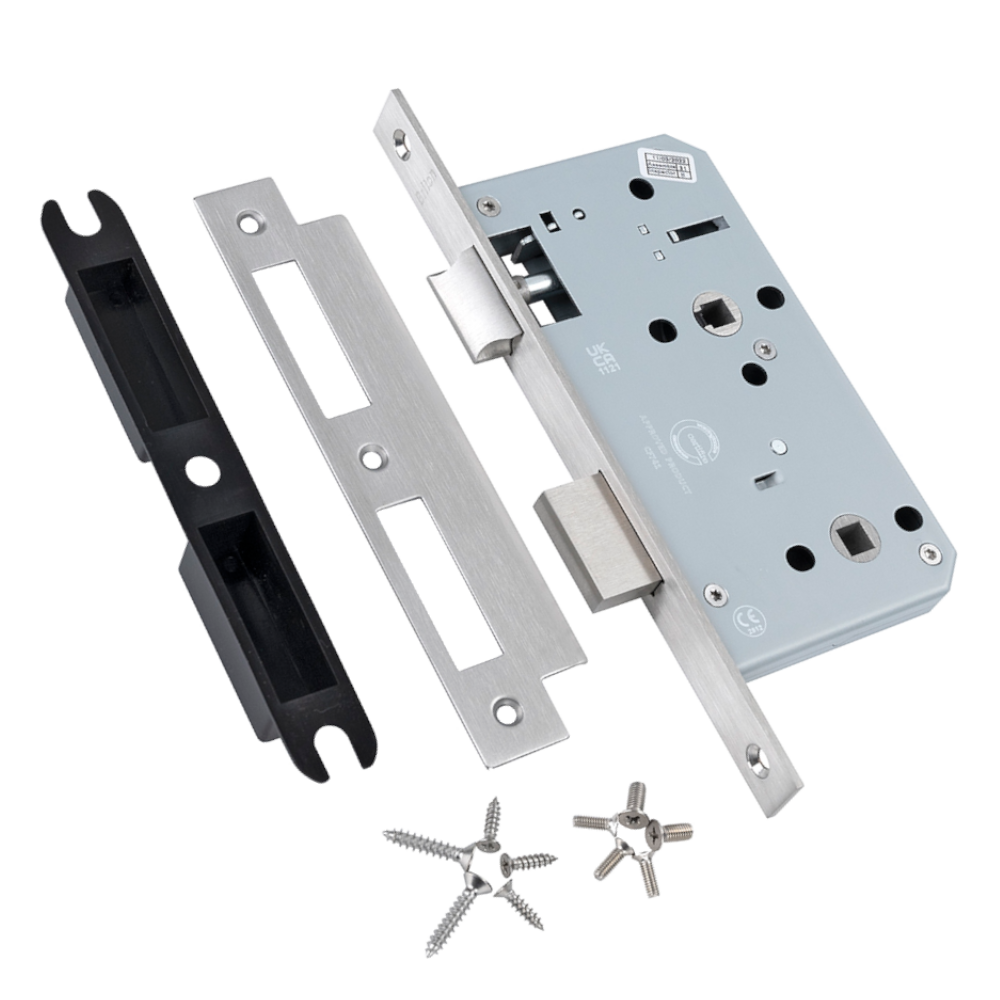

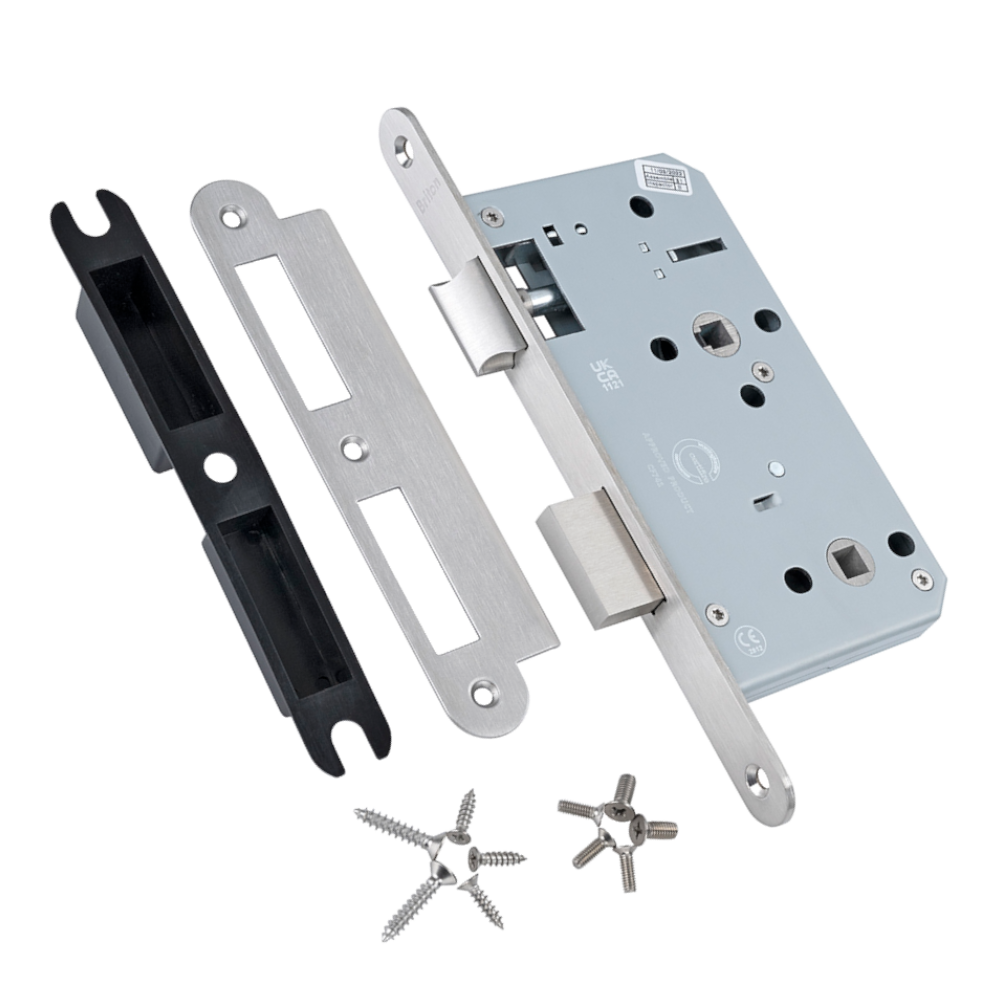

BRITON 5730 DIN Bathroom Lock Case 60mm Backset
BRITON 5730 DIN Bathroom Lock Case 60mm Backset
By purchasing you are agreeing to our Terms of Sale.
Low stock: 10 left
Couldn't load pickup availability
The Briton 5730 is a DIN standard mortice bathroom lock suitable for use on bathroom doors and those requiring a privacy function. It has a 60mm backset with 78mm centres and a profiled latch which is reversible. One turn of a thumbturn will throw the bolt 20mm. The 5730 bathroom lock has been fire tested to EN 1634-1 for use on fire doors up to 1hr timber / 4hr steel when used with the appropriate intumescent kit (Briton 5000.IP).
BRITON 5730 DIN Bathroom Lock Case 60mm Backset
Features
- Grade 316 stainless steel single piece round or square forend
- Galvanised steel lockcase with satin nickel plating for corrosion resistance
- Quick reversible latch
- Centres 78mm
- Backset 60mm
- 20mm single throw bolt
Finishes
- Satin Nickel
Categories
- Locking Product
- Mortice Locks & Latches
- Bathroom
Our BRITON 5730 DIN Bathroom Lock Case 60mm Backset from Briton is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.

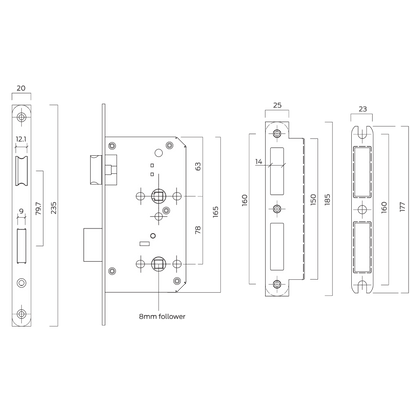

| Option Specifications | |
|---|---|
| Backset | 60mm |
| Bolt Throw | 20mm |
| Case Finish | Satin Nickel |
| Case Height | 165mm |
| Case Depth | 89mm |
| Centres | 78mm |
| Forend Length | 235mm |
| Forend Width | 20mm |
| Handed | Reversible |
| Mechanism | Bathroom |
| Pack Quantity | 1 |
| Standards | CE Marked,BS EN 12209:2003 |
| Product References | L32971, L32970 |
| Barcode References | 5050640042040, 5050640042033 |
| * Information above is accurate at the time of entry and may be subject to change at any time. | |
