The Robus compact DBLK-10 shootbolt lock is designed for slim profile bi-folding door sets. It has a 7mm square spindle hole, 43mm screw centres and is manufactured from high strength zinc die-cast.

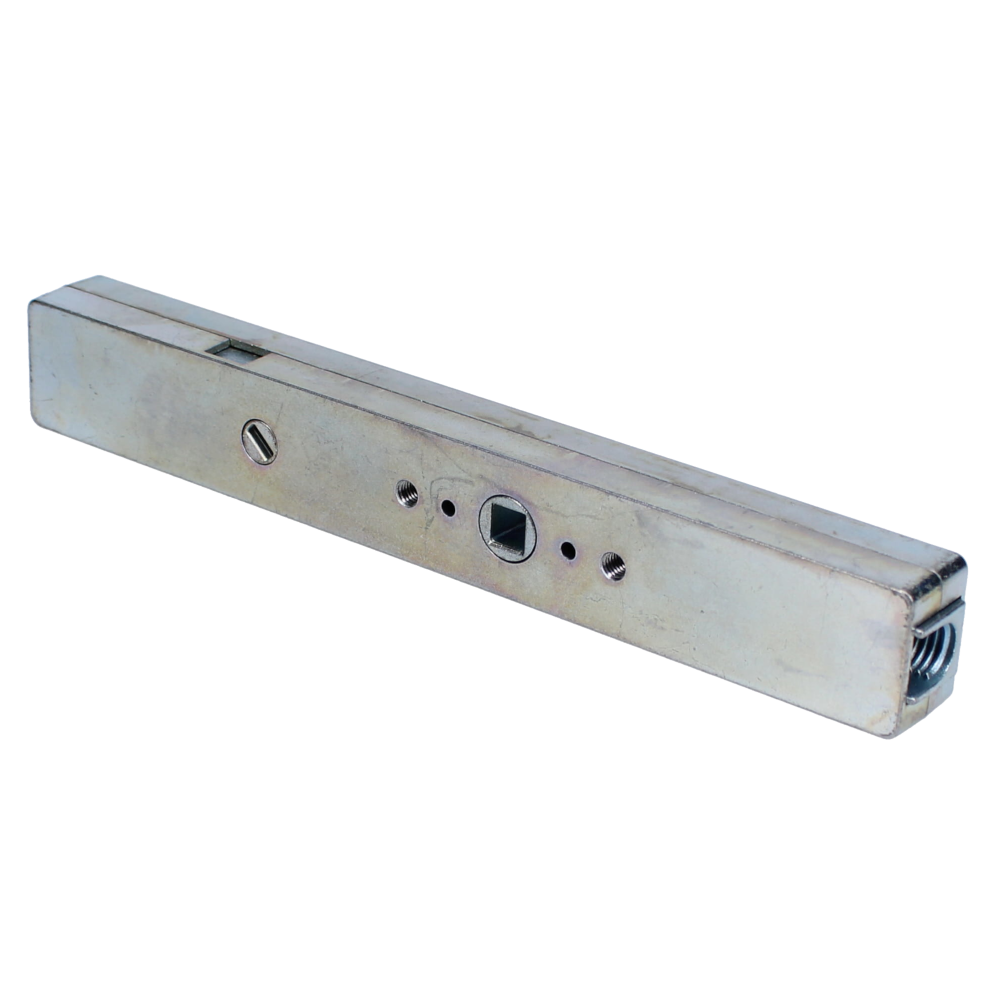

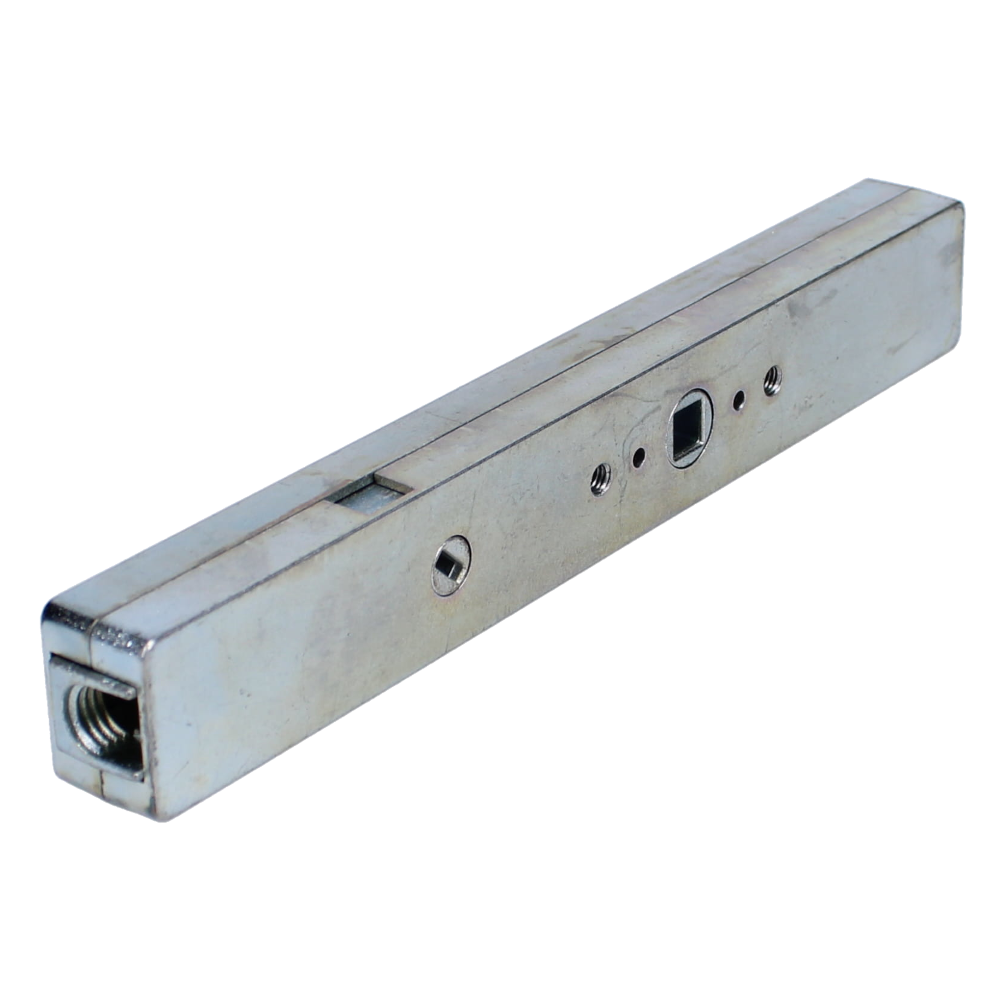

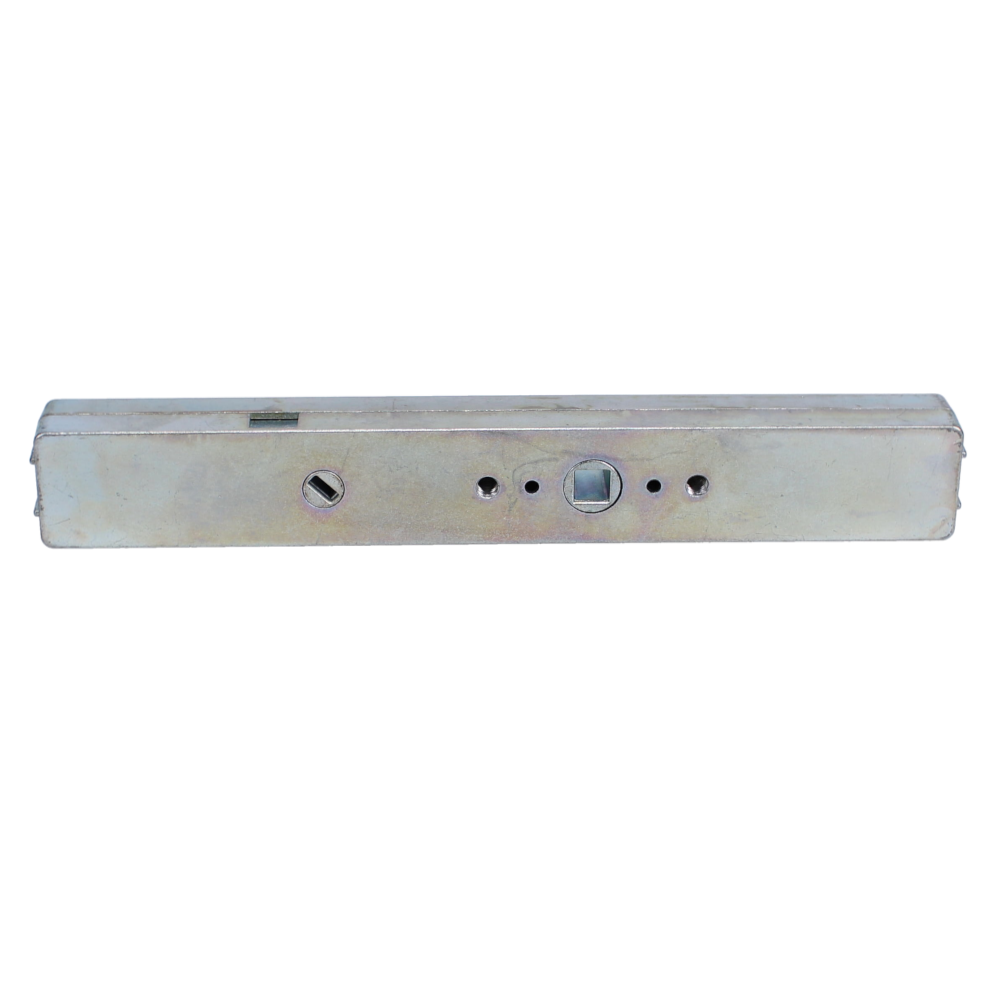

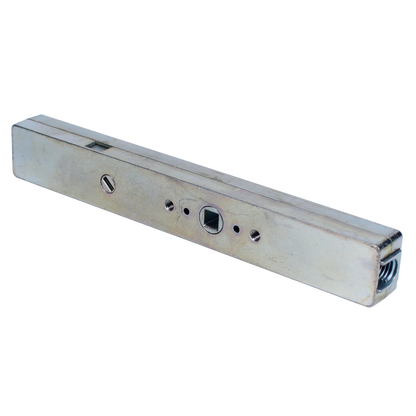

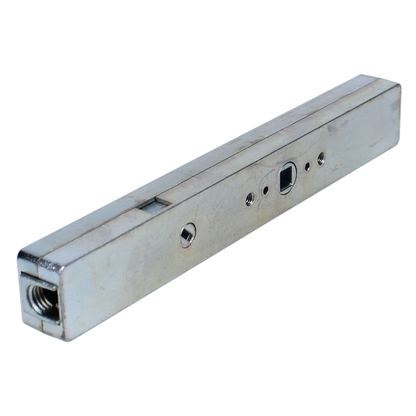

DEBAR Robus Compact Bi-Fold Shootbolt Lock
Features
Threaded rod connections - Fits M10 threaded bar
Slim profile - 26.5mm wide
24mm throw
180 degree handle operation
Two engagement points to secure both top and bottom of the door panel
Designed for slim bi-folding door profiles
Categories
Multi Point Locks
Patio
Bi Fold Doors
Our DEBAR Robus Compact Bi-Fold Shootbolt Lock from Debar is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
Specifications
Case Height
193mm
Case Width
26.5mm
Depth
18mm
Pack Quantity
1
Screw Centres
43mm
Spindle
7mm
Product References
L35236
Barcode References
5056240147055
* Information above is accurate at the time of entry and may be subject to change at any time.
