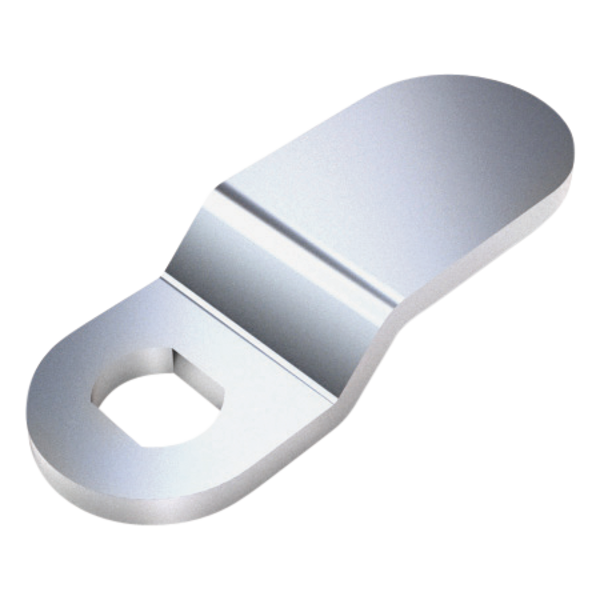

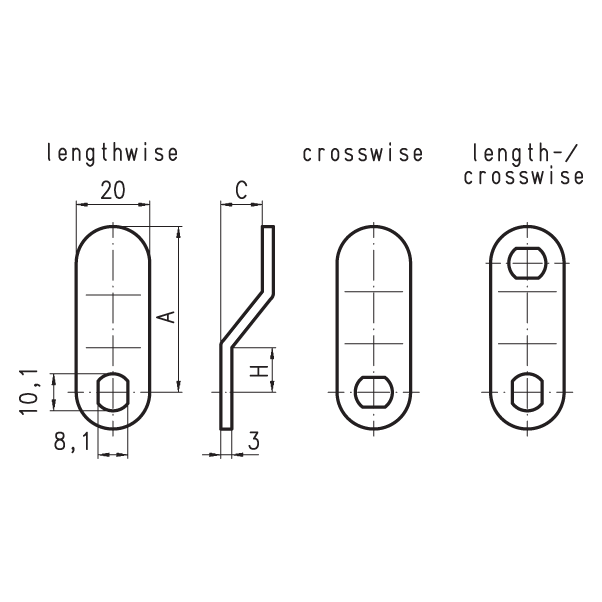

DOM 225 type 3 cam is cranked style meaning that it is has 2 bends in it making it offset. It is 20mm wide, 3mm thick, has a radius end and 2 x 8.1mm x 10.1mm rectangular Lengthwise and crosswise fixing holes thus allowing them to be mounted in multiple positions.
DOM 225-3 Cranked Cam
Features
Cam bar only
To suit Ronis cam locks
20mm Wide
8.1mm x 10.1mm hole
Cranked Construction
Finishes
Silver
Categories
Locking Product
Cabinet & Camlocks
Camlock
Accessories
Our DOM 225-3 Cranked Cam from DOM is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
Option Specifications
Body Thickness
3mm
Depth
3mm
Height
3mm
Width
20mm
Finish
Silver
Length

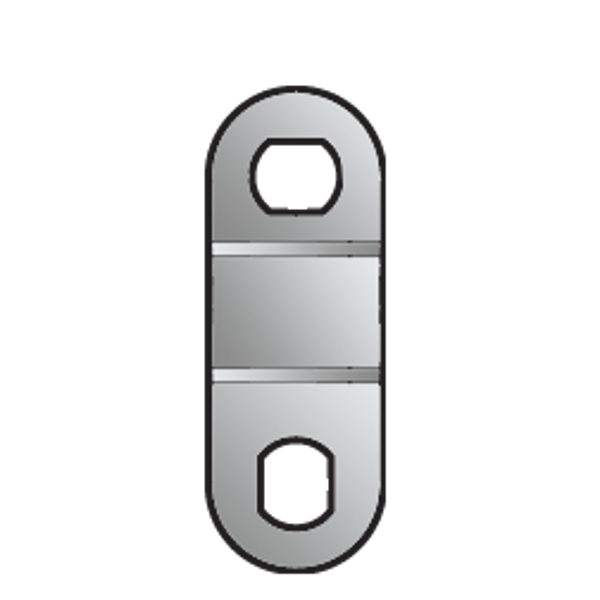

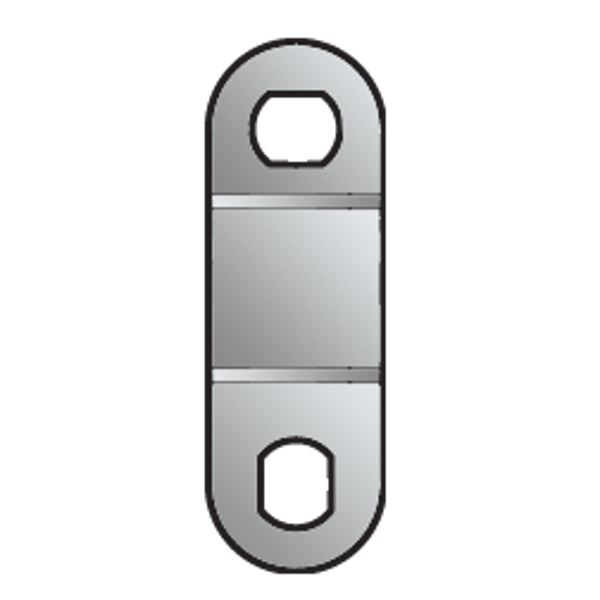

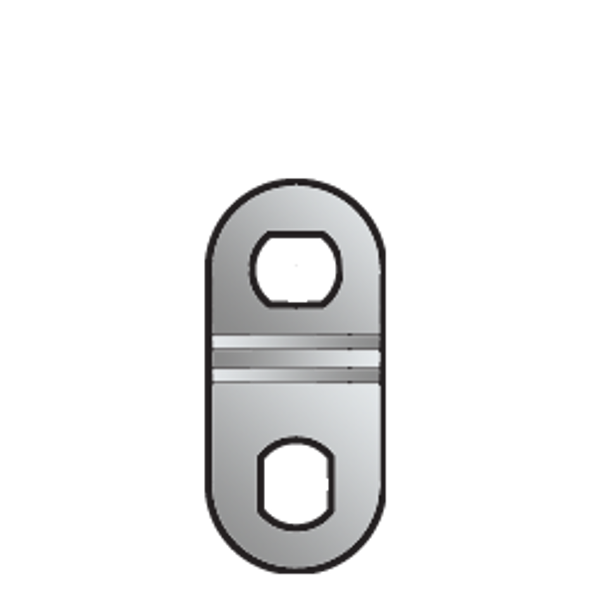

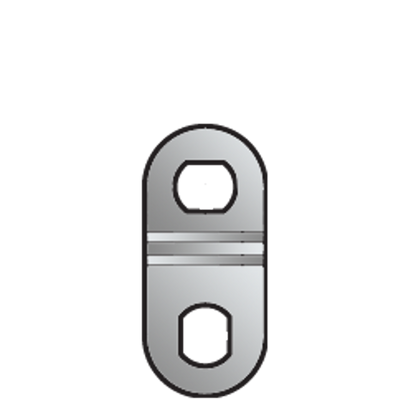

50mm, 46mm, 38mm
Pack Quantity
1
Product References
L26843, L26842, L26841
Barcode References
5055120781433, 5055120781426, 5055120781419
* Information above is accurate at the time of entry and may be subject to change at any time.
