Brand: dormakaba
DORMAKABA BTS75R Floor Spring Door Closer
DORMAKABA BTS75R Floor Spring Door Closer
By purchasing you are agreeing to our Terms of Sale.
Low stock: 1 left
Couldn't load pickup availability

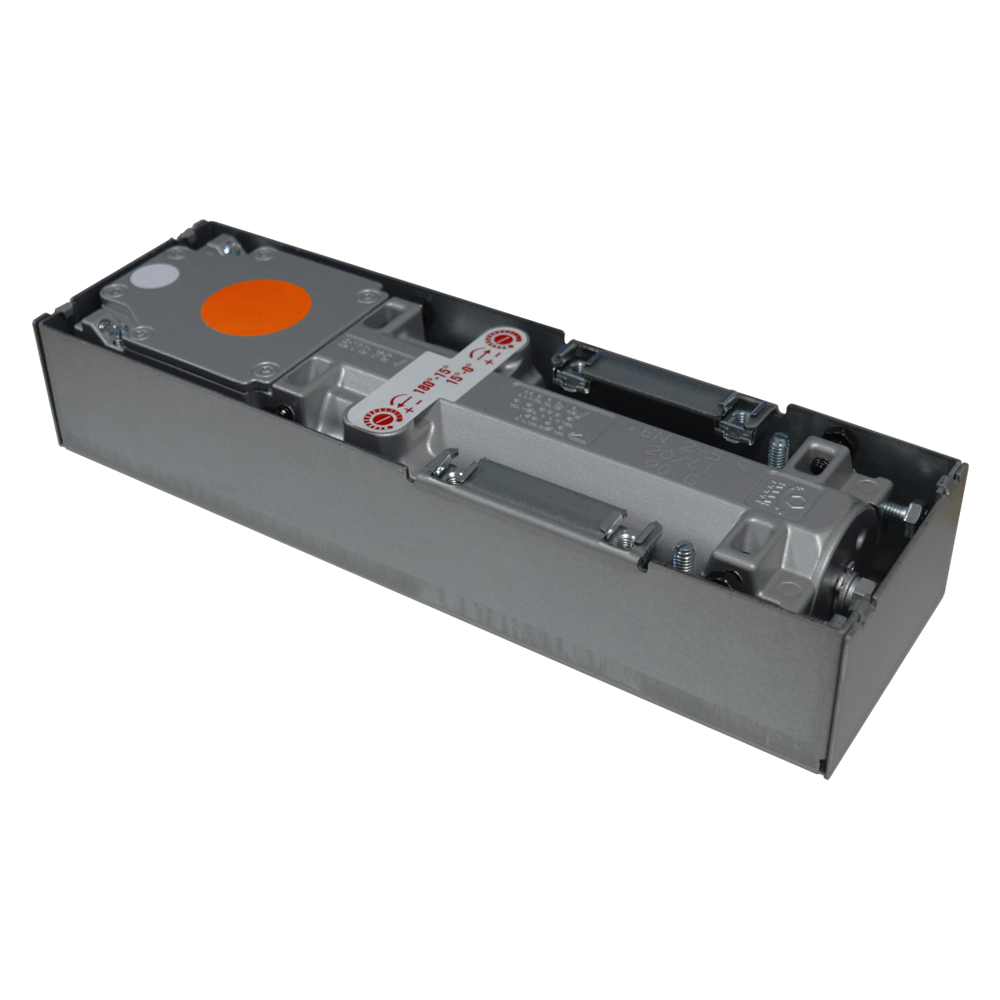

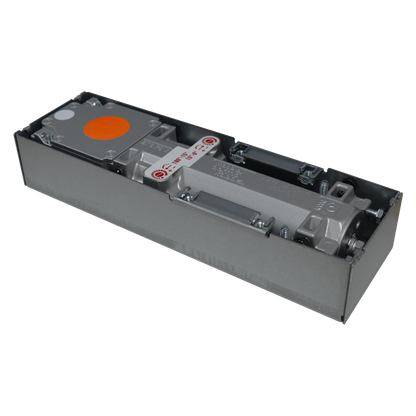

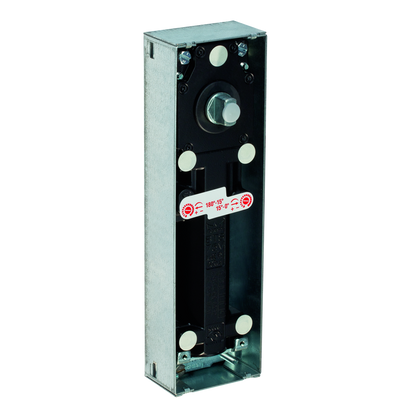

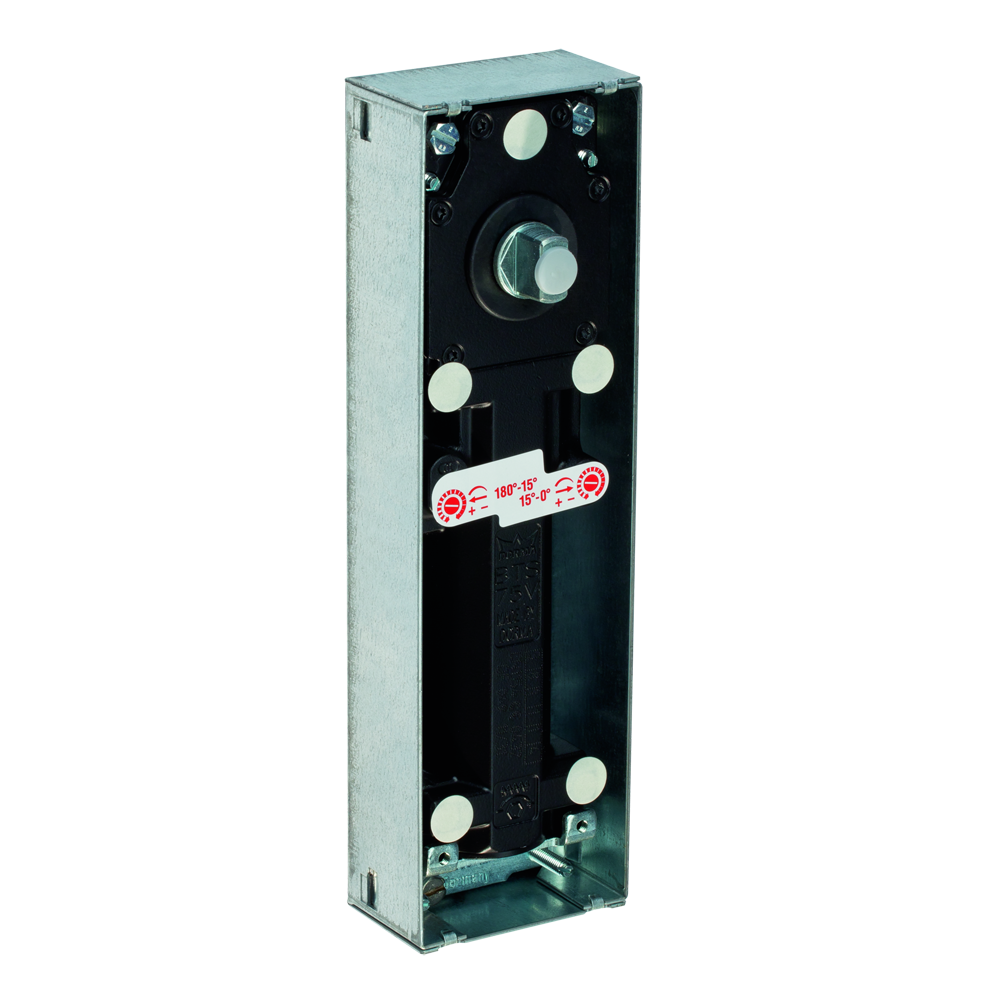

The DORMAKABA BTS75R Floor Spring Door Closer is a non-handed unit, suitable for both left-hand and right-hand single and double action door applications up to 160kg, conforming to BS EN 1154. It features adjustable spring strength (EN 2-5) and closing speed, with a hold open (90°) or no hold open option available. It has a fully hydraulically controlled backcheck and closing cycle. The door closer comes without spindle and the universal cover plate is supplied separately.
DORMAKABA BTS75R Floor Spring Door Closer
Features
- Suitable for most applications
- Non-handed for use with both left and right handed doors
- Suitable for use with single and double action door applications
- Adjustable spring strength (EN 2-5)
- Adjustable closing speed
- Without spindle
Categories
- Architectural Hardware
- Door Closer
- Floor
Our DORMAKABA BTS75R Floor Spring Door Closer from dormakaba is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.

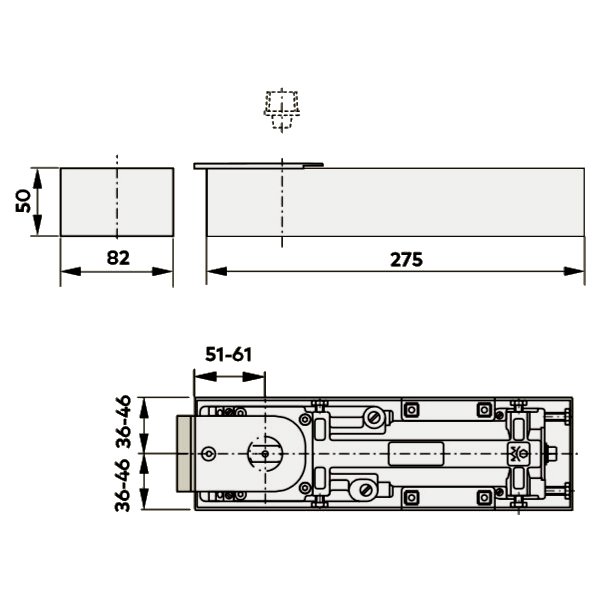

| Option Specifications | |
|---|---|
| Backcheck | Yes |
| Depth | 50mm |
| Height | 50mm |
| Width | 82mm |
| Handed | Reversible |
| Hold Open | Yes, No |
| Length | 285mm |
| Max Door Weight | 160Kg |
| Max Door Width | 1250mm |
| Pack Quantity | 1 |
| Strength Size | 2 To 5 |
| Product References | L32042, L32041 |
| Barcode References | 5056240122465, 5056240122458 |
| * Information above is accurate at the time of entry and may be subject to change at any time. | |
