Brand: dormakaba

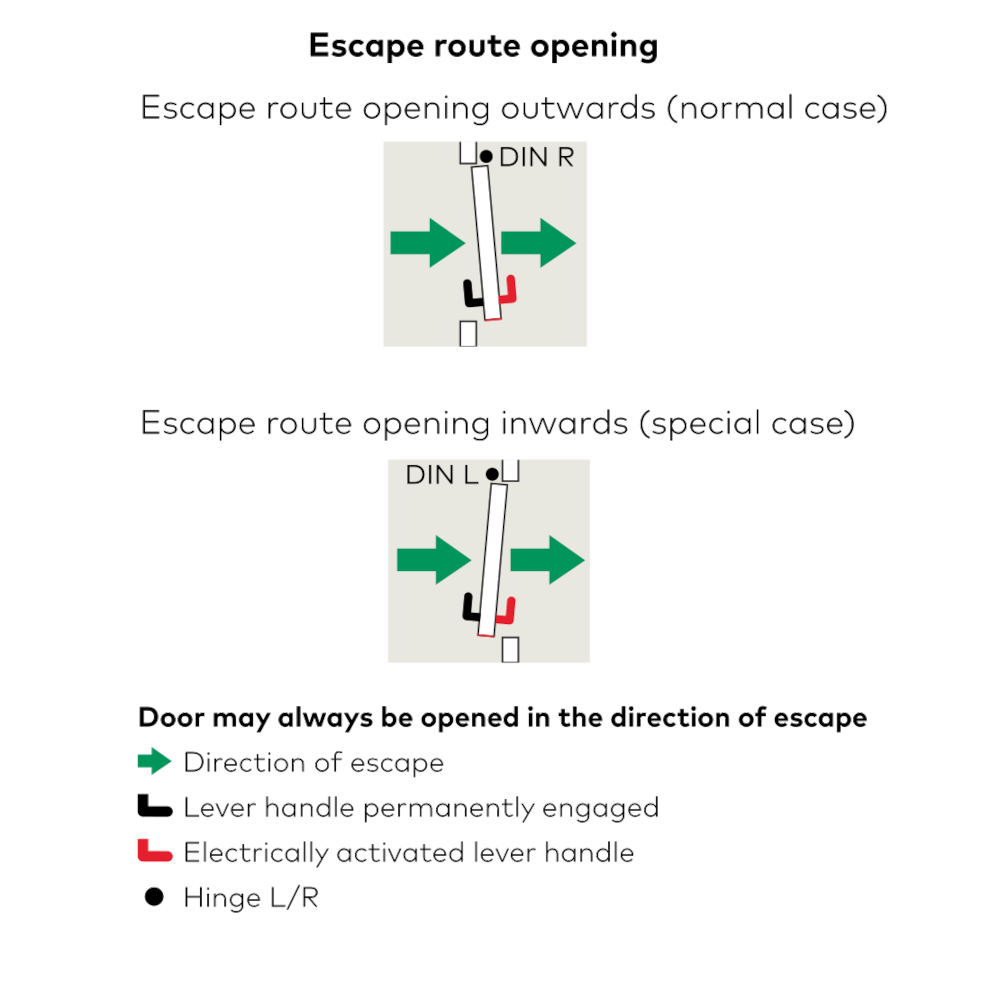

DORMAKABA Electric Lock SVP6278 12/24V DC FL/FU Outwards Din Right / Inwards Din Left
DORMAKABA Electric Lock SVP6278 12/24V DC FL/FU Outwards Din Right / Inwards Din Left
By purchasing you are agreeing to our Terms of Sale.
Low stock: 1 left
Couldn't load pickup availability

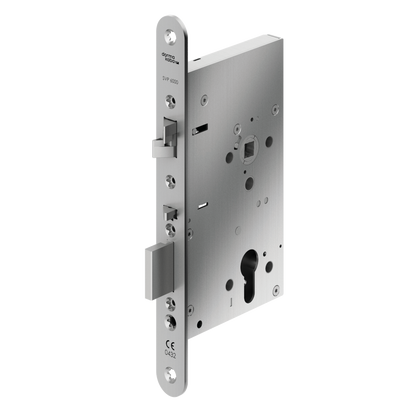

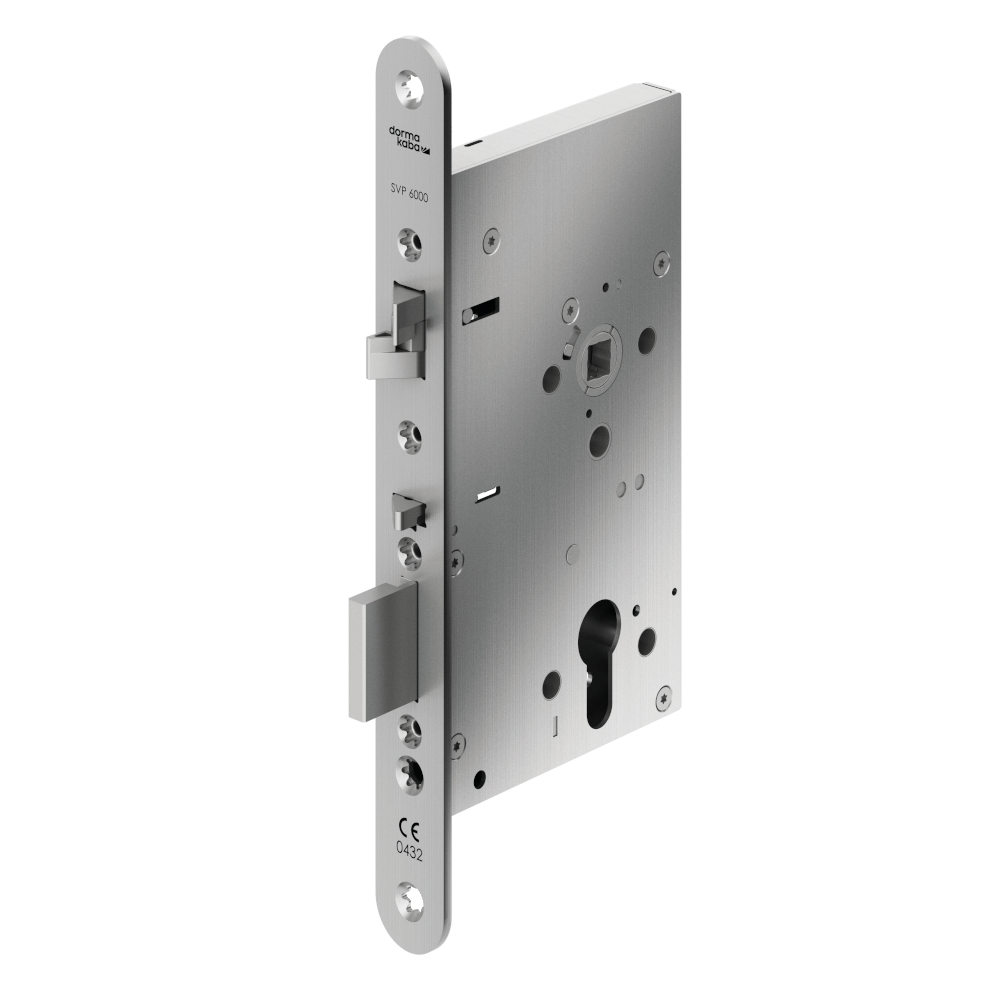

The Dormakaba SVP6278 is a microswitch-monitored emergency-escape lock with automatic locking action, suitable for non rebated single leaf timber doors. It is electrically monitored, with split follower, optimised mechanical sequential control and status monitoring. The unit is Certifire approved and CE marked.
DORMAKABA Electric Lock SVP6278 12/24V DC FL/FU Outwards Din Right / Inwards Din Left
Features
- To suit non rebated single leaf timber doors
- Steel bolt projection 20mm
- Max load current 30 VDC, 100mA
- Status monitoring
- Split 9mm square section follower
- Two point locking activated by pre-loaded spring when door closes
Finishes
- Stainless Steel
Categories
- Access Control
- Electric Locking
- Electric Lock
- Dorma
Our DORMAKABA Electric Lock SVP6278 12/24V DC FL/FU Outwards Din Right / Inwards Din Left from dormakaba is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
| Specifications | |
|---|---|
| Backset | 65mm |
| Body Height | 165mm |
| Body Width | 20mm |
| Centres | 72mm |
| Faceplate Height | 235mm |
| Faceplate Width | 24mm |
| Finish | Stainless Steel |
| Input Voltage | 12/24V DC |
| Pack Quantity | 1 |
| Standards | BS EN 1125,Certifire,CE Marked,BS EN 179 |
| Product References | L32670 |
| Barcode References | 421226883259 |
| * Information above is accurate at the time of entry and may be subject to change at any time. | |
