Brand: dormakaba

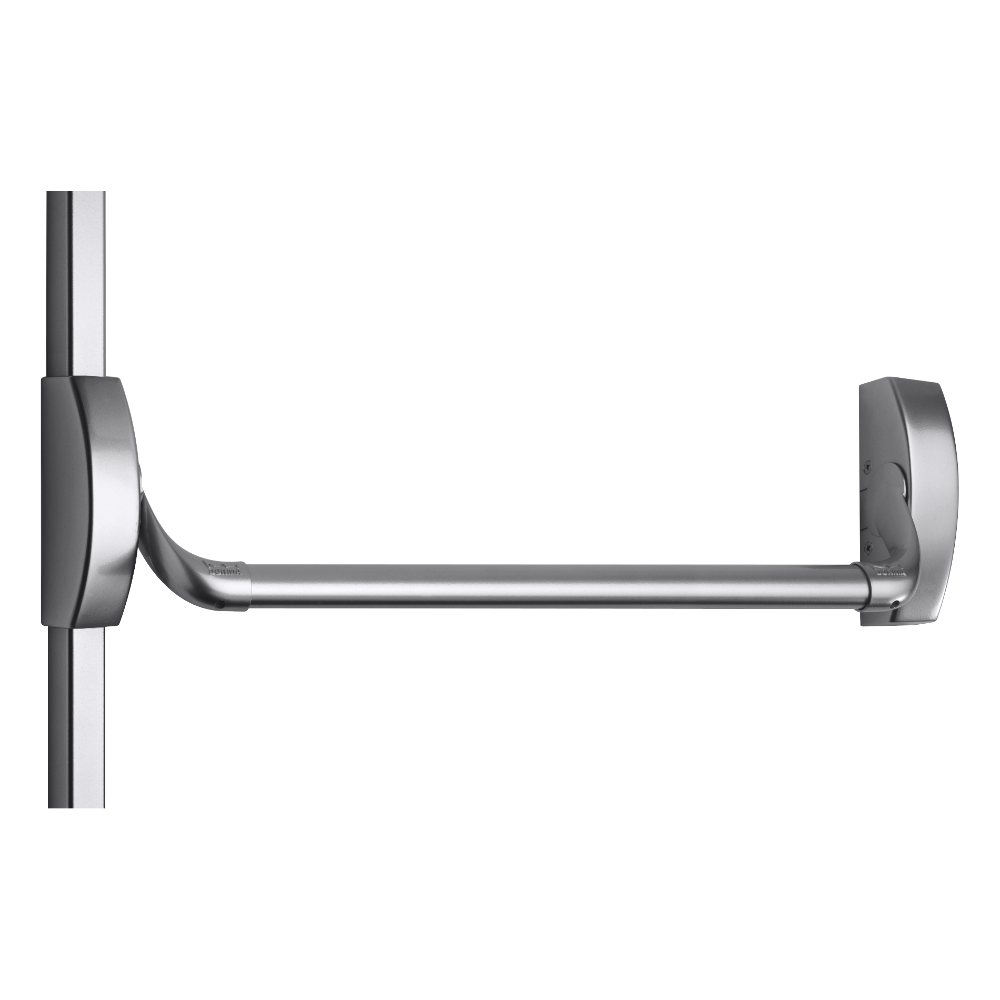

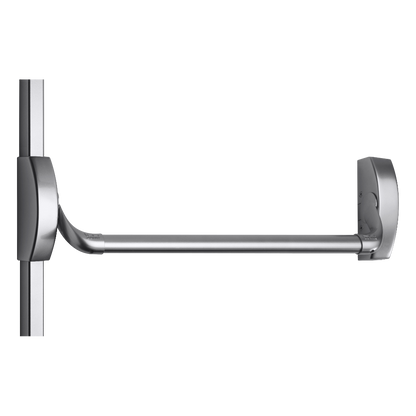

DORMAKABA PHA2220 Standard Panic Bolt
DORMAKABA PHA2220 Standard Panic Bolt
By purchasing you are agreeing to our Terms of Sale.
Low stock: 2 left
Couldn't load pickup availability
The dormakaba (formerly known as Dorma) PHA 2220 Standard Panic Bolt is a two-point locking panic device to suit door widths up to 1000mm. Like the rest of the dormakaba PHA 2000 range, this unit has been tested in accordance with EN 1125 and carries the CE mark.
This double-point locking unit with steel top and bottom shoot bolts and an operation bar which is suitable for use on fire and smoke check doors and is fitted with a dogging device to hold the latch in retracted position therefore allow free access if required.
DORMAKABA PHA2220 Standard Panic Bolt
Features
- Two-point locking
- For fire and smoke check doors
- Steel top and bottom shoot bolts
- 830mm to 1000mm operation bar
- Connecting rod set with metal covers for door heights up to 2270mm
- BS EN 1125 tested and suitable for use in public areas
Finishes
- Silver
Categories
- Architectural Hardware
- Exit Hardware
- Panic Bolt
Our DORMAKABA PHA2220 Standard Panic Bolt from dormakaba is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.

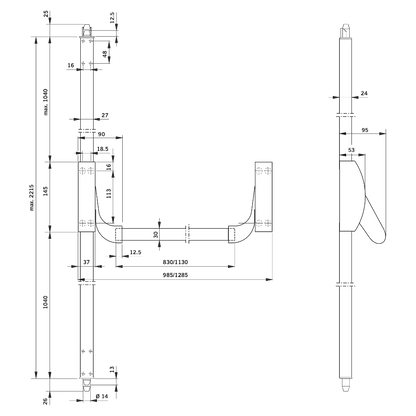

| Specifications | |
|---|---|
| Body Height | 145mm |
| Depth | 95mm |
| Width | 1.285m |
| Finish | Silver |
| Handed | Reversible |
| Max Door Height | 2270mm |
| Max Door Weight | 200Kg |
| Max Door Width | 1000mm |
| Pack Quantity | 1 |
| Screw Centres | 113mm |
| Standards | CE Marked,BS EN 1125 |
| Product References | L25213 |
| Barcode References | 4021226269954 |
| * Information above is accurate at the time of entry and may be subject to change at any time. | |
