Brand: dormakaba
DORMAKABA PHA2221 Standard Panic Latch
DORMAKABA PHA2221 Standard Panic Latch
By purchasing you are agreeing to our Terms of Sale.
Low stock: 1 left
Couldn't load pickup availability

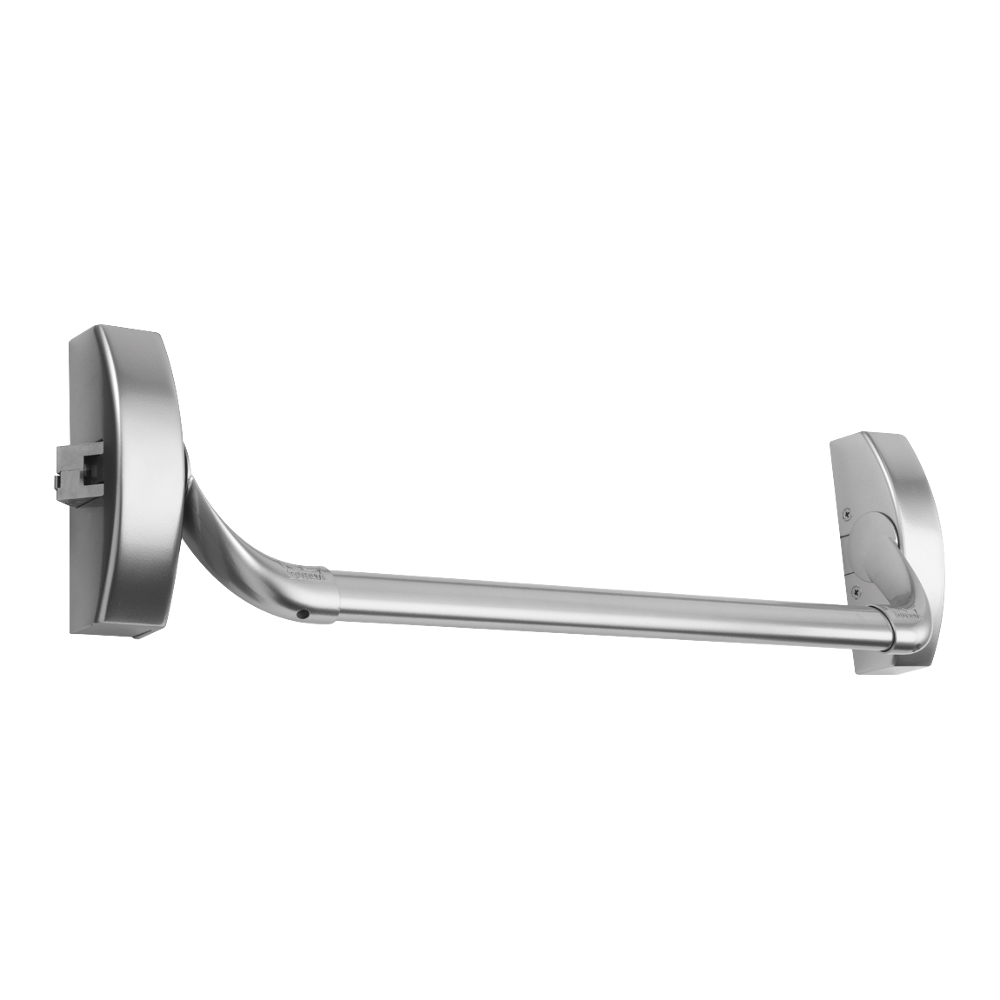

The dormakaba (formerly known as Dorma) PHA 2221 Standard Panic Latch is to suit the active leaf of over-rebated double doors. Like the rest of the dormakaba PHA 2000 range, this unit has been tested in accordance with EN 1125 and carries the CE mark.
This single-point locking unit is suitable for use on fire and smoke check doors and is fitted with a dogging device to hold the latch in retracted position to allow free access when required.
DORMAKABA PHA2221 Standard Panic Latch
Features
- Dogging device can hold the latch in retracted position so the door is freely accessible
- Single-point locking
- Max. door leaf weight: 200Kg
- Non-handed design
- For fire and smoke check doors
- Steel latch
Finishes
- Silver
Categories
- Architectural Hardware
- Exit Hardware
- Panic Latch
Our DORMAKABA PHA2221 Standard Panic Latch from dormakaba is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.

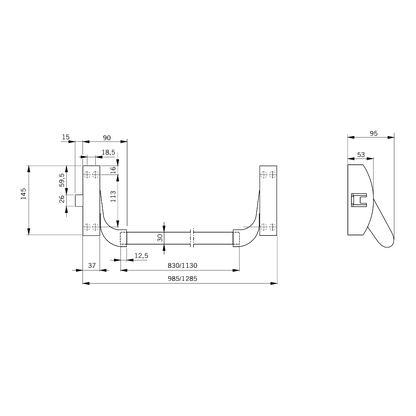

| Specifications | |
|---|---|
| Body Height | 145mm |
| Depth | 95mm |
| Width | 1.285m |
| Finish | Silver |
| Handed | Reversible |
| Max Door Height | 2270mm |
| Max Door Weight | 200Kg |
| Max Door Width | 1000mm |
| Pack Quantity | 1 |
| Screw Centres | 113mm |
| Standards | CE Marked,BS EN 1125 |
| Product References | L25212 |
| Barcode References | 4021226269961 |
| * Information above is accurate at the time of entry and may be subject to change at any time. | |
