Brand: dormakaba

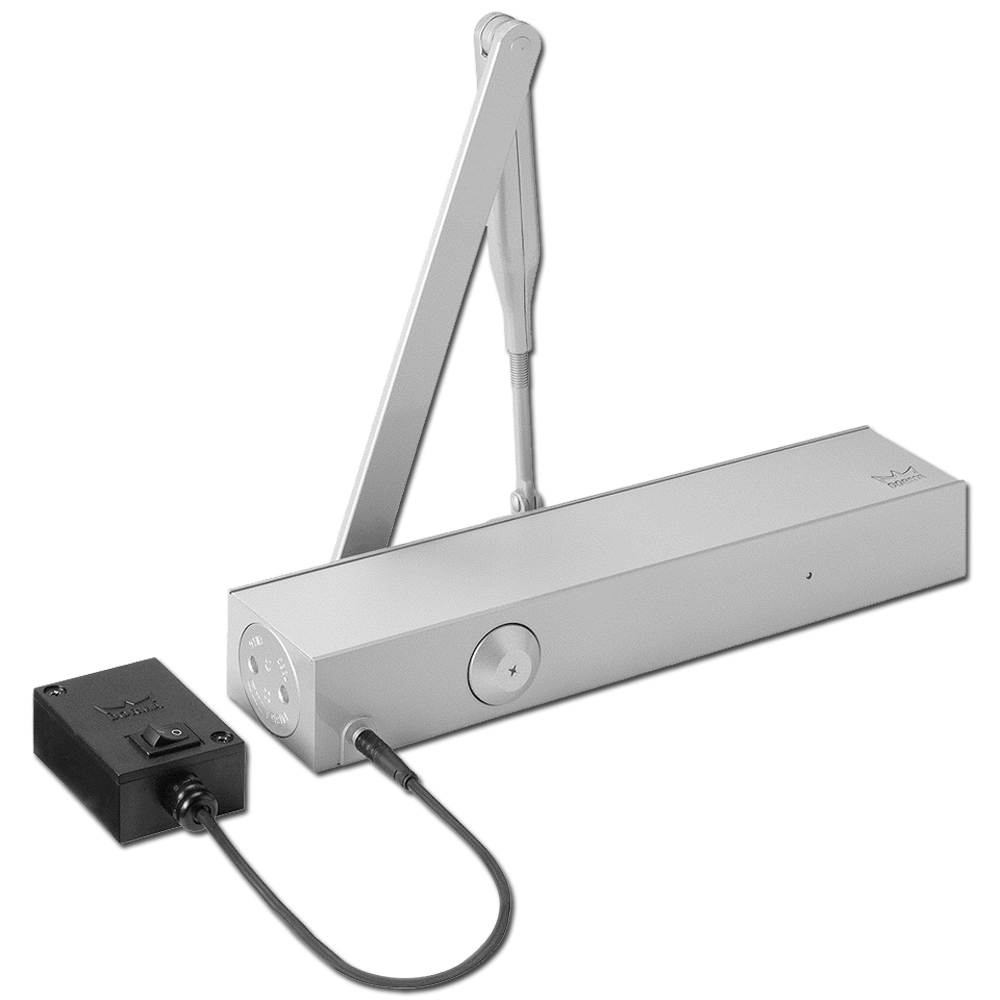

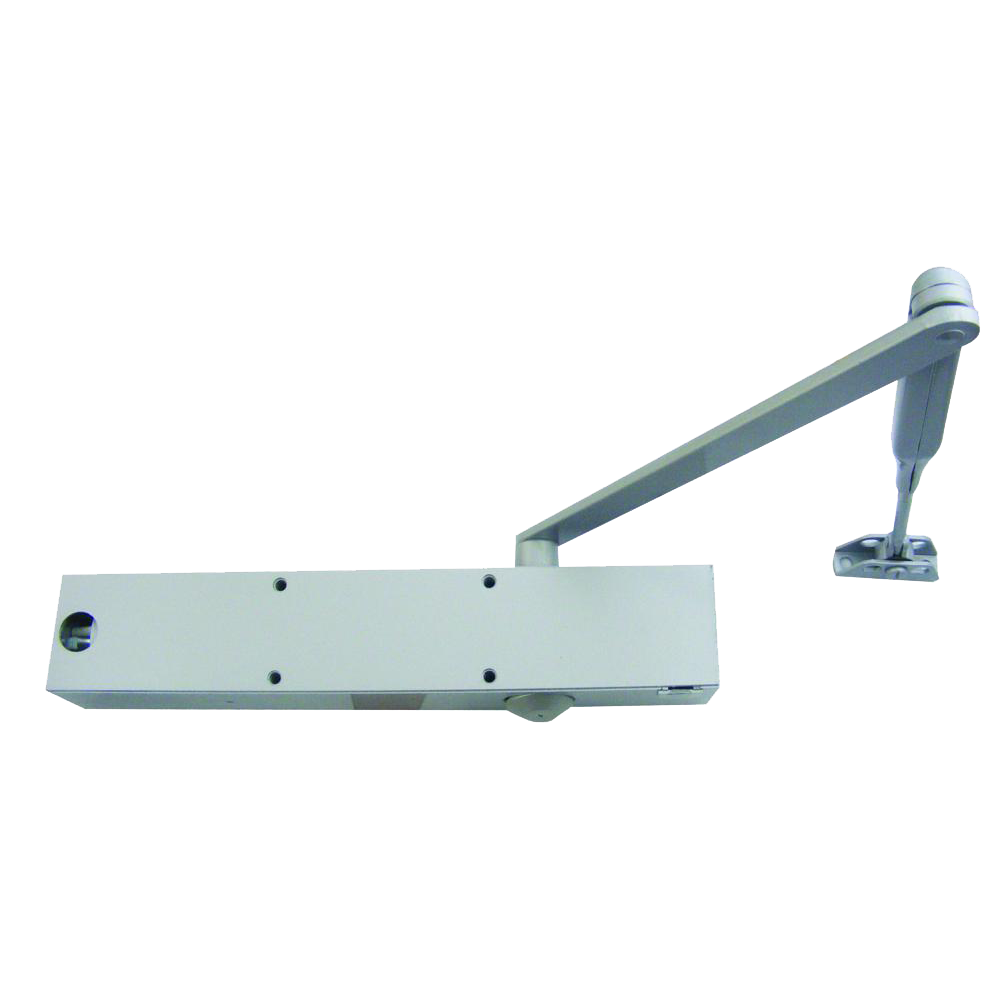

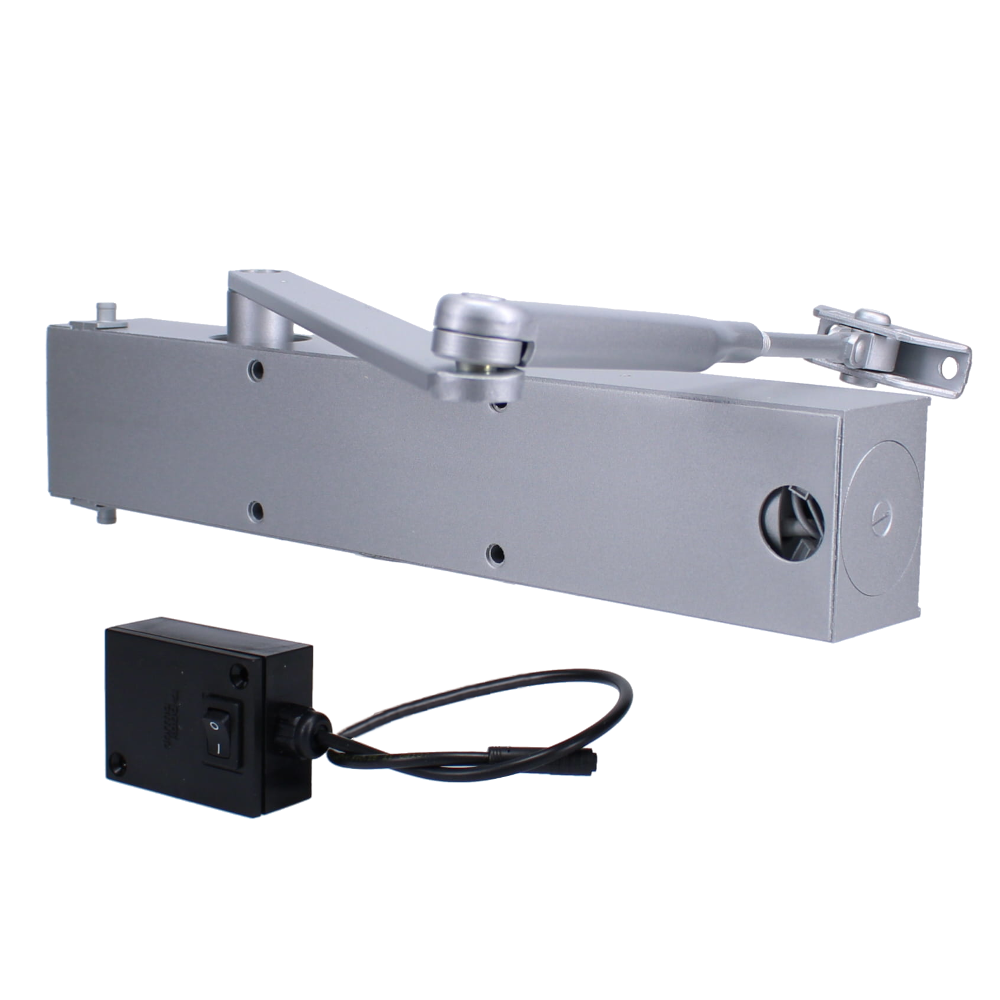

DORMAKABA TS73EMF Hold Open Door Closer
DORMAKABA TS73EMF Hold Open Door Closer
By purchasing you are agreeing to our Terms of Sale.
Low stock: 2 left
Couldn't load pickup availability
The dormakaba (formerly known as Dorma) TS73EMF is a combination of a hydraulic door closer and an electromagnetic hold-open unit. In conjunction with an alarm / smoke detection system, the TS 73 EMF can be used as a hold-open door closer for fire and smoke check doors. The hold-open of the door is performed under electro-magnetic control. In the event of a fire, the door is reliably closed by the integral hydraulic closer. The closing cycle is also initiated by manual door operation or automatically in the event of a power failure.
DORMAKABA TS73EMF Hold Open Door Closer
Features
- Rack-and-pinion door closer with scissor arm for hold-open applications
- Can be used as a hold-open system for fire and smoke check doors
- Electromagnetic hold-open possible between approx 75° and 180°
- Universal solution for doors of differing designs & styles
- Optimum adaptability thanks to adjustable latching action
- Simple installation
Finishes
- Silver Enamelled
Categories
- Access Control
- Fire & Deterrent
- Hold Open Door Closer
Our DORMAKABA TS73EMF Hold Open Door Closer from dormakaba is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
| Option Specifications | |
|---|---|
| Backcheck | No |
| Delayed Action | No |
| Depth | 46mm |
| Finish | Silver Enamelled |
| Fire Tested | Yes |
| Handed | Reversible |
| Input Voltage | 24V DC |
| Length | 32cm |
| Max Door Width | 1100mm |
| Min Door Weight | 80Kg |
| Pack Quantity | 1 |
| Standards | BS EN 1155 |
| Adjustable Latch Action | Yes |
| Product References | L11817, L11816 |
| Barcode References | 4021226008645, 4021226008447 |
| * Information above is accurate at the time of entry and may be subject to change at any time. | |
