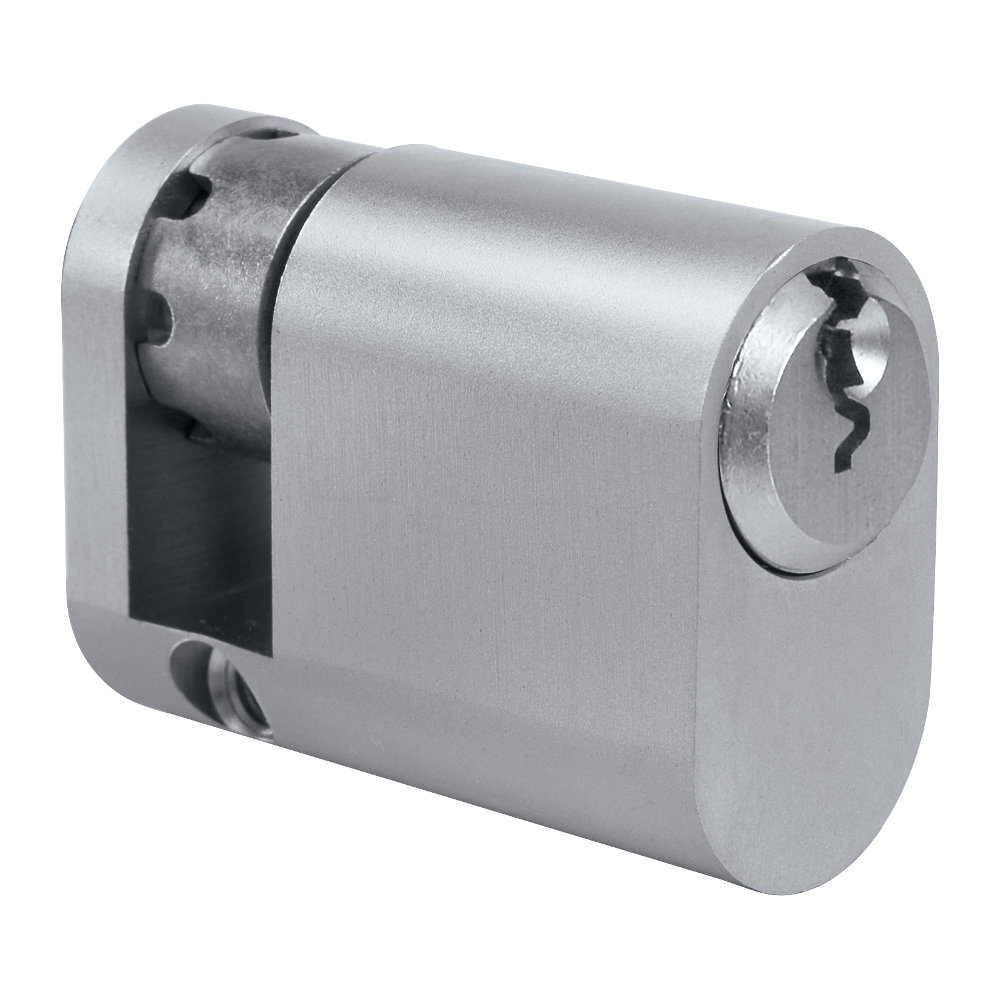

EVVA A5 OHZ Half Oval Cylinder KD

The EVVA OHZ keyed to differ oval half cylinder has a standard oval profile and is supplied complete with a connecting screw. The EVVA A5 system is a basic but robust 5-pin locking system and is available in many cylinder styles and with many optional special features.

---

Optional Special Features Available

Z - Cog Wheel Cams
Designed for use with multi-point locks or specialist mortice locks that are operated via a gear ring or a toothed rack, they can be supplied with 10, 13, 14 or 18 teeth instead of a standard cam.

CMK - Construction Keying
Cylinders installed during construction are operated by the "CMK Master Key". On completion of work the CMK is disabled by use of any Master Key or Differ Key. This removes the need to retrieve or keep track of any CMK Master Keys issued.

VAR - ABC Vario
3 sets of keys are provided, once key B is used then the A keys no longer work; when the C key is used then neither A nor B keys will no longer work.

PBP - Pre Determined Break Point
Cylinder will snap at a pre determined point to prevent entry via snapping, please note that this function is not TS007 rated.

TXT - Additional Numbering
Specific numbering or sequential numbering on keys to allow the end user to keep track of issued keys and highlight losses.

SEW - Sea Water Protections
For cylinders that are exposed to more severe environmental influences, corrosion-susceptible cylinder parts are supplied with a special surface treatment; this comes as standard for Aldridge cylinders.

SG-A - Bump Resistant
Provides protected against access via a specially milled bump key by using separated body pins.

FLEX - Adapted Entry
One or both sides of the cylinder can be operated via Square, Triangle, Hexagon or slot feature, e.g. one side could be opened with a key and the other by an 8mm socket.

ARS - Plug Pulling Protection
A special nickel silver cam connects to the plugs on both sides to protect from plug pulling attempts.

KZS - Plug Pulling Protection
Carbide components in the plug protect against plug pulling attempts.

Please contact us for more information.

EVVA A5 OHZ Half Oval Cylinder KD

Features

• Unrestricted key profile
• A section (F section to special order)
• 30 minute fire resistance to 821° C
• Oval single cylinders supplied with adjustable cams
• Dimensions to centre of cam
• Supplied with 3 keys as standard

Finishes

• Polished Brass
• Nickel Plated

Categories

• Locking Product
• Cylinders
• Half Oval

Our EVVA A5 OHZ Half Oval Cylinder KD from Evva is a quality tested product at a reasonably low price.

If you need any further information or are looking for an alternative size or similar item please contact us.

Option Specifications
Body Length	46mm, 41mm
Cylinder Size Overall	46mm, 41mm
Cylinder Size With Cam	37/9, 32/9
Finish	Polished Brass, Nickel Plated
Keyed	Keyed To Differ
Keys Supplied	3
Length	46mm, 41mm
Mechanism	5 Pin
Pack Quantity	1
Size To Centre Of Cam	37mm, 32mm
A Side	37mm, 32mm
B Side	N/A
Product References	L6118, L6117, L6116, L6115
Barcode References	5055120632735, 5055120632759, 5055120632773, 5055120632803
* Information above is accurate at the time of entry and may be subject to change at any time.
