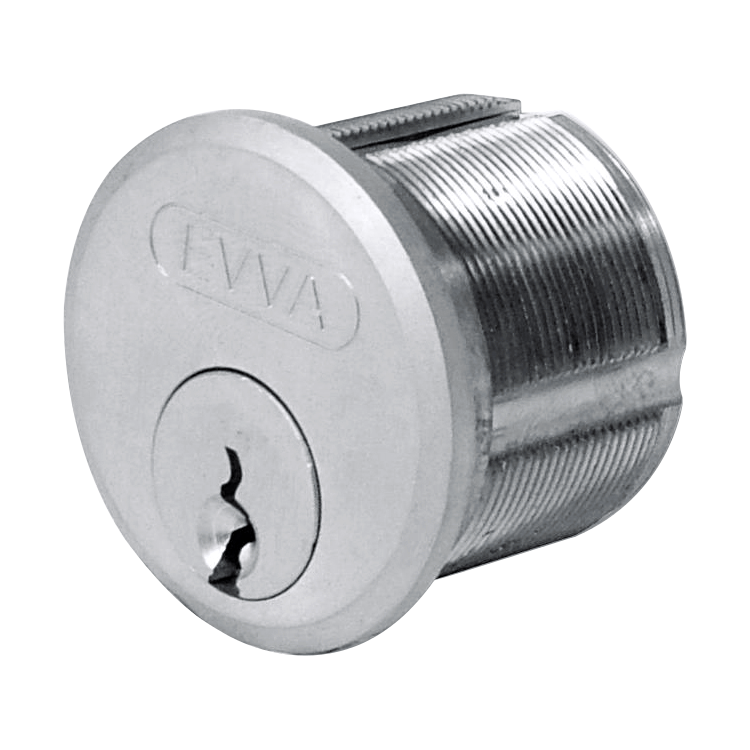

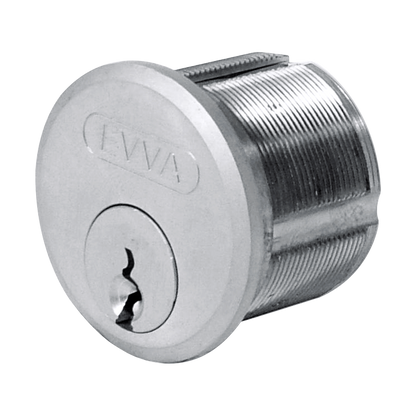

EVVA A5 RM1 Screw-In Cylinder

This 5 pin cylinder from Evva is a screw in rim cylinder, supplied complete with 3 keys. It has been tested for 30 minute fire resistance and features an unrestricted key profile.

---

Optional Special Features Available

CMK - Construction Keying
Cylinders installed during construction are operated by the "CMK Master Key". On completion of work the CMK is disabled by use of any Master Key or Differ Key. This removes the need to retrieve or keep track of any CMK Master Keys issued.

VAR - ABC Vario
3 sets of keys are provided, once key B is used then the A keys no longer work; when the C key is used then neither A nor B keys will no longer work.

TXT - Additional Numbering
Specific numbering or sequential numbering on keys to allow the end user to keep track of issued keys and highlight losses.

SEW - Sea Water Protections
For cylinders that are exposed to more severe environmental influences, corrosion-susceptible cylinder parts are supplied with a special surface treatment; this comes as standard for Aldridge cylinders.

SG-A - Bump Resistant
Provides protected against access via a specially milled bump key by using separated body pins.

FLEX - Adapted Entry
One or both sides of the cylinder can be operated via Square, Triangle, Hexagon or slot feature, e.g. one side could be opened with a key and the other by an 8mm socket.

ARS - Plug Pulling Protection
A special nickel silver cam connects to the plugs on both sides to protect from plug pulling attempts.

KZS - Plug Pulling Protection
Carbide components in the plug protect against plug pulling attempts.

Please contact us for more information.

EVVA A5 RM1 Screw-In Cylinder

Features

• Unrestricted key profile
• A section (F section to special order)
• 30 minute fire resistance to 821° C
• Supplied with 3 keys as standard

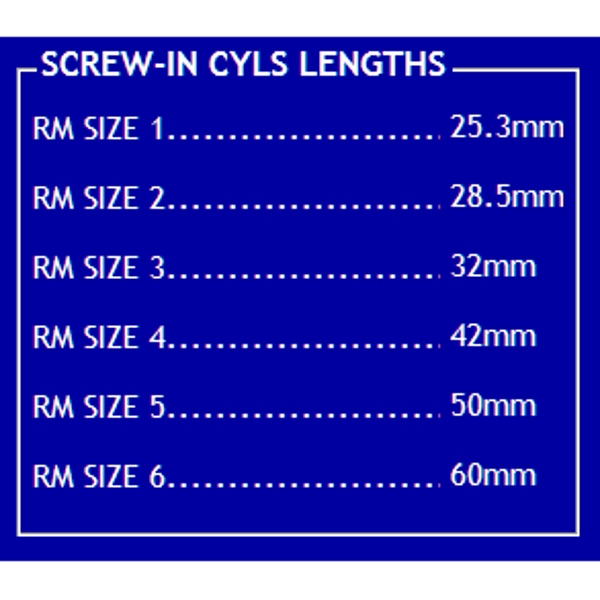

• 25.3mm cylinder length

Finishes

• Nickel Plated

Categories

• Locking Product
• Cylinders
• Screw In

Our EVVA A5 RM1 Screw-In Cylinder from Evva is a quality tested product at a reasonably low price.

If you need any further information or are looking for an alternative size or similar item please contact us.

Option Specifications
Body Length	25mm
Finish	Nickel Plated

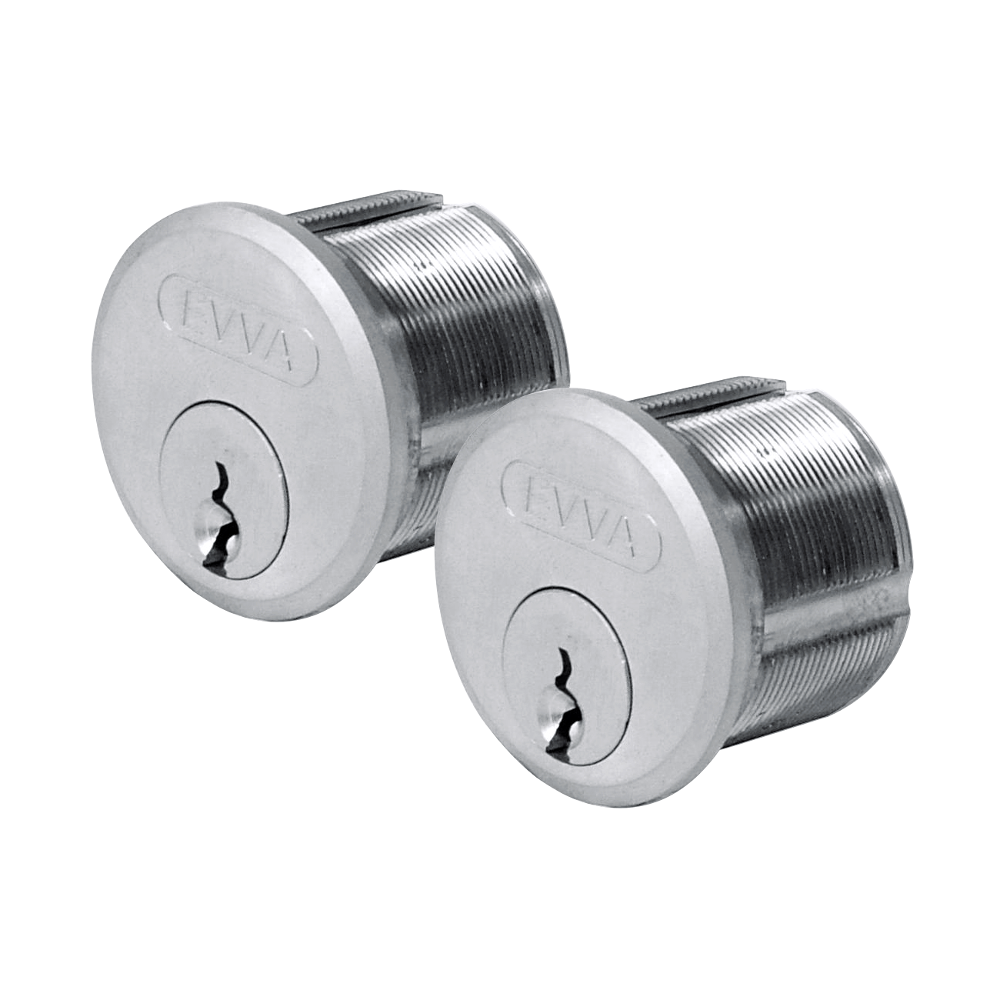

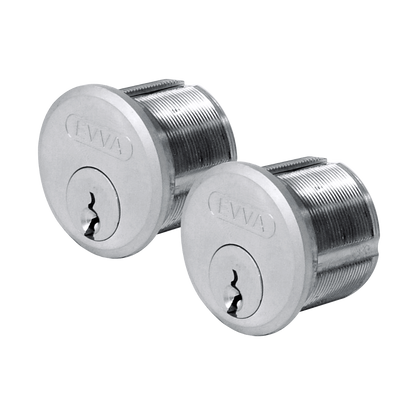

Keyed	Keyed Alike Pair, Keyed To Differ
Keys Supplied	3
Length	25mm
Mechanism	5 Pin
A Side	N/A
B Side	N/A
Product References	L6110, L6109
Barcode References	5055120632896, 5055120632933
