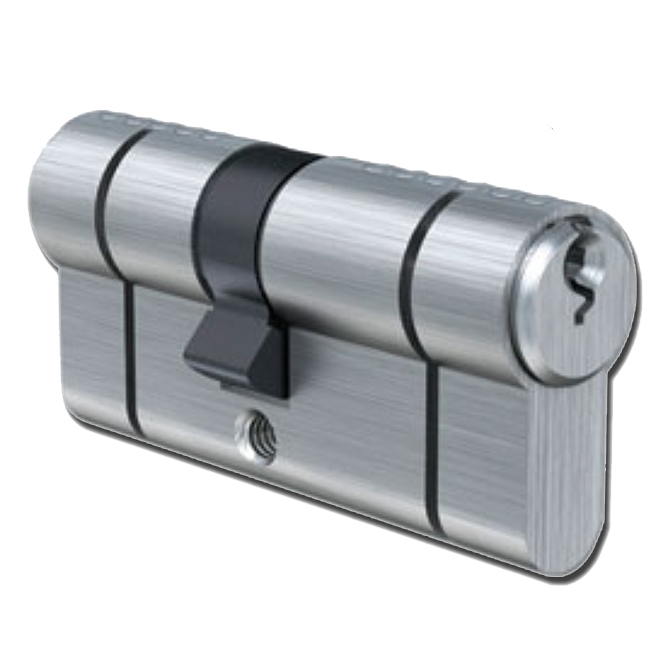

EVVA A5 Snap Resistant Euro Double Cylinder (PBP)

The EVVA DZ euro double cylinder is keyed to differ, has a standard euro profile and is supplied complete with a connecting screw. The EVVA A5 system is a basic but robust 5-pin locking system and is available in many cylinder styles and with many optional special features. This cylinder is fitted with a break Point to offer increased protection against snapping, the cylinder will break at 3rd chamber leaving remaining cylinder in lock.

---

Optional Special Features Available

BSZ - External Key Override
Allows operation of the cylinder from the outside even if a key is inserted on the inside.

Z - Cog Wheel Cams
Designed for use with multi-point locks or specialist mortice locks that are operated via a gear ring or a toothed rack, they can be supplied with 10, 13, 14 or 18 teeth instead of a standard cam.

CMK - Construction Keying
Cylinders installed during construction are operated by the "CMK Master Key". On completion of work the CMK is disabled by use of any Master Key or Differ Key. This removes the need to retrieve or keep track of any CMK Master Keys issued.

VAR - ABC Vario
3 sets of keys are provided, once key B is used then the A keys no longer work; when the C key is used then neither A nor B keys will no longer work.

PBP - Pre Determined Break Point
Cylinder will snap at a pre determined point to prevent entry via snapping, please note that this function is not TS007 rated.

SSW - All Weather Cover
Spring loaded shutter plates mounted on the outside of the cylinder open and close when the key is inserted or removed. NB - adds 5mm to cylinder length.

FL1 - Free Wheel Function
Free wheel function without forced decoupling when key is inserted (supplied in-house), for use with motorised locks.

TXT - Additional Numbering
Specific numbering or sequential numbering on keys to allow the end user to keep track of issued keys and highlight losses.

SEW - Sea Water Protections
For cylinders that are exposed to more severe environmental influences, corrosion-susceptible cylinder parts are supplied with a special surface treatment; this comes as standard for Aldridge cylinders.

SG-A - Bump Resistant
Provides protected against access via a specially milled bump key by using separated body pins.

FZG - Free Wheel Function
Certified free wheel function without forced decoupling when key is inserted (factory supplied), for use with motorised locks

FLEX - Adapted Entry
One or both sides of the cylinder can be operated via Square, Triangle, Hexagon or slot feature, e.g. one side could be opened with a key and the other by an 8mm socket.

PA - Partner Cylinder
The cylinder can only be operated when an authorised key is inserted in the opposite side.

ZVS - Retracted Cylinder Body
For use in special metal framed doors with integrated security roses.

ARS - Plug Pulling Protection
A special nickel silver cam connects to the plugs on both sides to protect from plug pulling attempts.

KZS - Plug Pulling Protection
Carbide components in the plug protect against plug pulling attempts.

Please contact us for more information.

EVVA A5 Snap Resistant Euro Double Cylinder (PBP)

Features

• A section (F section to special order)
• 30 minute fire resistance to 821° C
• 3 Keys supplied as standard
• Please note all other variations are Special Order

Finishes

• Nickel Plated

Categories

• Locking Product
• Cylinders
• Double Euro

Our EVVA A5 Snap Resistant Euro Double Cylinder (PBP) from Evva is a quality tested product at a reasonably low price.

If you need any further information or are looking for an alternative size or similar item please contact us.

Option Specifications
Body Length	68mm, 97mm, 102mm, 92mm, 82mm, 72mm
Cylinder Size Overall	27/41, 46/51, 41/61, 41/51, 41/41, 36/56, 36/46, 36/36, 31/51, 46/56
Cylinder Size With Cam	22/10/36, 41/10/46, 36/10/56, 36/10/46, 36/10/36, 31/10/51, 31/10/41, 31/10/31, 26/10/46, 41/10/51
Finish	Nickel Plated
Keyed	Keyed To Differ
Keys Supplied	3
Length	68mm, 97mm, 10.2cm, 92mm, 82mm, 72mm
Mechanism	5 Pin
A Side	27mm Breakaway, 46mm Breakaway, 41mm Breakaway, 36mm Breakaway, 31mm Breakaway
B Side	41mm Breakaway, 51mm Breakaway, 61mm Breakaway, 56mm Breakaway, 46mm Breakaway, 36mm Breakaway
Product References	L20334, L19592, L19591, L19590, L19589, L19588, L19587, L19586, L19585, L19584
Barcode References	5055120721521, 5055120714103, 5055120714097, 5055120714080, 5055120714073, 5055120714066, 5055120714059, 5055120714042, 5055120714035, 5055120700045
* Information above is accurate at the time of entry and may be subject to change at any time.
