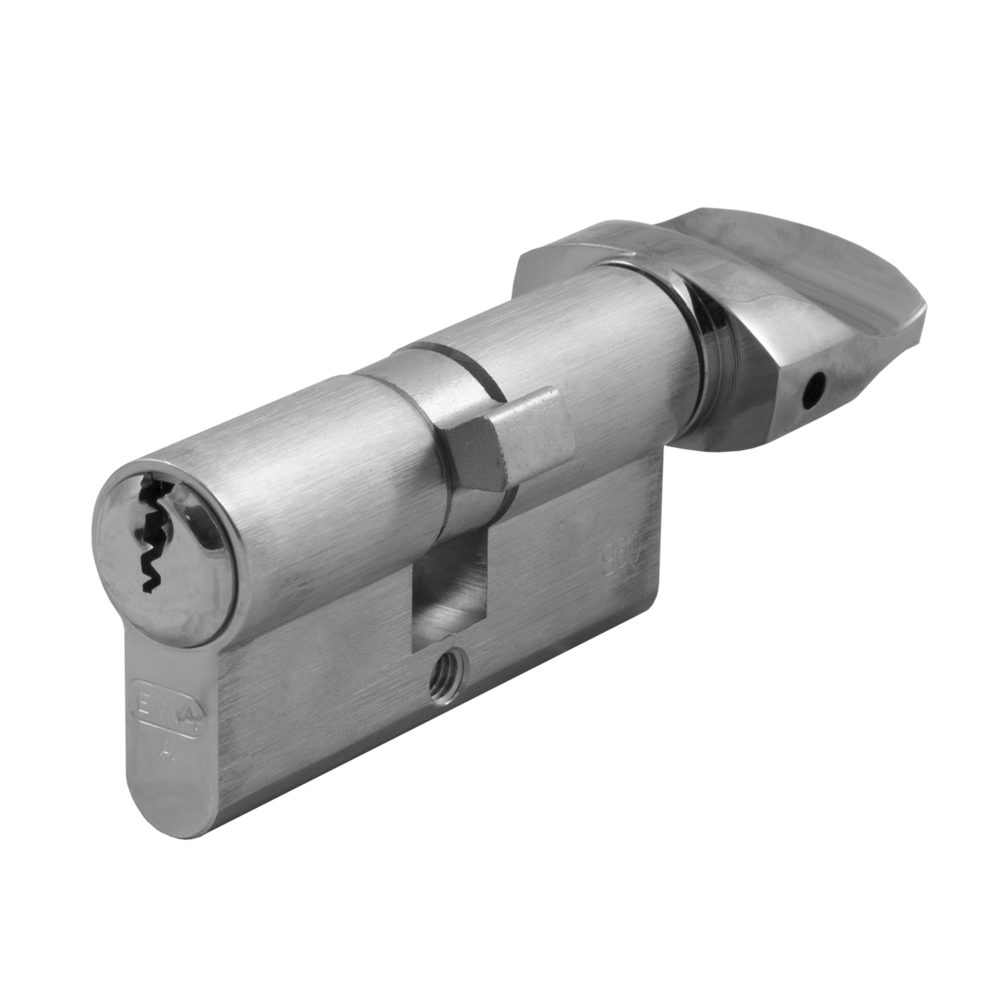

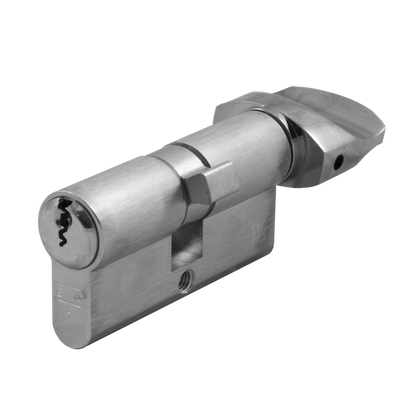

EVVA EPSnp KDZ Key & Turn Euro Cylinder Keyed To Differ

This Evva EPSnp KDZ euro key and turn cylinder is supplied as a keyed to differ set on our in-house section and comes complete with 3 keys. Patent protected until 2041, this mechanical locking system is a very economical solution for a cylinder system offering convenience, manageability and a high level of security. The system contains a wide variety of locking elements covering virtually any application and offers legal and technical key protection mechanisms to ensure a high degree of protection against key copying.

If you would like to register your keys once installed, then please click here to visit the EVVA Keys web site.

---

Optional Special Features Available

SOS - Clutch Cam (Anti-Barricade)
Thumbturn is disengaged when a key is inserted on the outside allowing access even if turn is blocked or held.

BSI - 3* Snap Resistant
Bump and snap resistant cylinders Kitemarked on the external anti snap side only with the 3*** logo.

Z - Cog Wheel Cams
Designed for use with multi-point locks or specialist mortice locks that are operated via a gear ring or a toothed rack, they can be supplied with 10, 13, 14 or 18 teeth instead of a standard cam.

CLA - Classroom Function
Thumbturn can only be rotated in one direction (reversible) so that a door can only be unlocked from the inside, it is supplied with SOSE as standard.

SSW - All Weather Cover
Spring loaded shutter plates mounted on the outside of the cylinder open and close when the key is inserted or removed. NB - adds 5mm to cylinder length.

TXT - Additional Numbering
Specific numbering or sequential numbering on keys to allow the end user to keep track of issued keys and highlight losses.

SEW - Sea Water Protections
For cylinders that are exposed to more severe environmental influences, corrosion-susceptible cylinder parts are supplied with a special surface treatment; this comes as standard for Aldridge cylinders.

NS - Nickel Silver Plug
Ideal for use on high use cylinders such as communal entrances where cylinders are used far more often.

FLEX - Adapted Entry
One or both sides of the cylinder can be operated via Square, Triangle, Hexagon or slot feature, e.g. one side could be opened with a key and the other by an 8mm socket.

ZVS - Retracted Cylinder Body
For use in special metal framed doors with integrated security roses.

ARS - Plug Pulling Protection
A special nickel silver cam connects to the plugs on both sides to protect from plug pulling attempts.

KZS - Plug Pulling Protection
Carbide components in the plug protect against plug pulling attempts.

Please contact us for more information.

EVVA EPSnp KDZ Key & Turn Euro Cylinder Keyed To Differ

Features

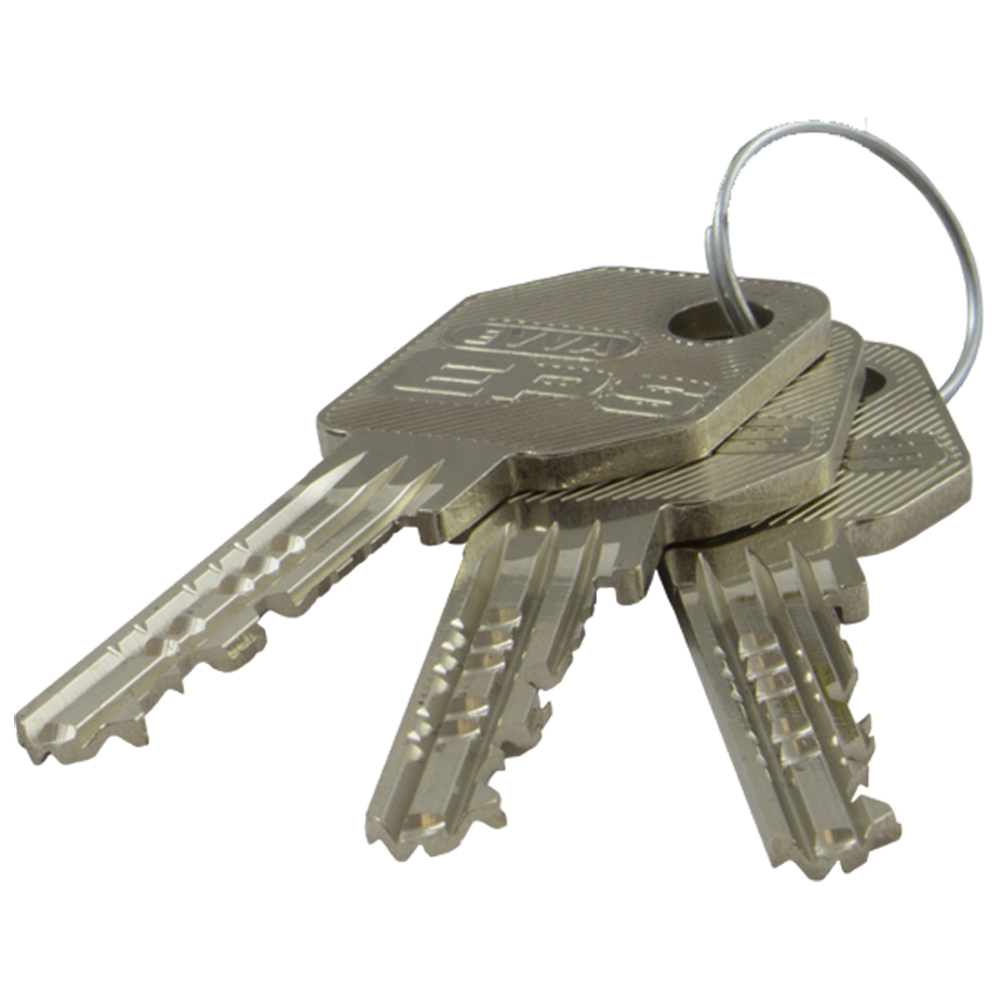

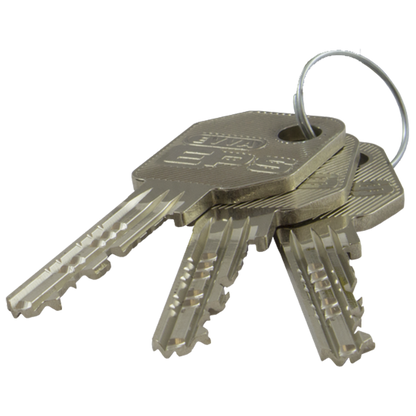

• Supplied complete with 3 keys
• Patented & registered system
• Wear & drill resistant
• Complies with lock security grade 6 as specified in EN 1303:2005 (highest grade)
• Complies with attack resistance grade 2 as specified in EN 1303:2005 (highest grade)
• Patent protected until 2041

Finishes

• Nickel Plated

Categories

• Locking Product
• Cylinders
• Key & Turn Euro

Our EVVA EPSnp KDZ Key & Turn Euro Cylinder Keyed To Differ from Evva is a quality tested product at a reasonably low price.

If you need any further information or are looking for an alternative size or similar item please contact us.

Option Specifications
Body Length	82mm, 72mm, 62mm
Cylinder Size Overall	41/T41, 36/T36, 31/T31
Cylinder Size With Cam	36/10/T36, 31/10/T31, 26/10/T26
Finish	Nickel Plated
Keyed	Keyed To Differ
Keys Supplied	3
Length	82mm, 72mm, 62mm
Mechanism	6 Pin
Pack Quantity	1
Standards	BS EN 1303:2005,CEN Grade 6, CEN Grade 6,BS EN 1303:2005
A Side	41mm, 36mm, 31mm
B Side	41mm (Turn), 36mm (Turn), 31mm (Turn)
Product References	L34754, L34753, L34752
Barcode References	5056240142920, 5056240142913, 5056240142906
* Information above is accurate at the time of entry and may be subject to change at any time.
