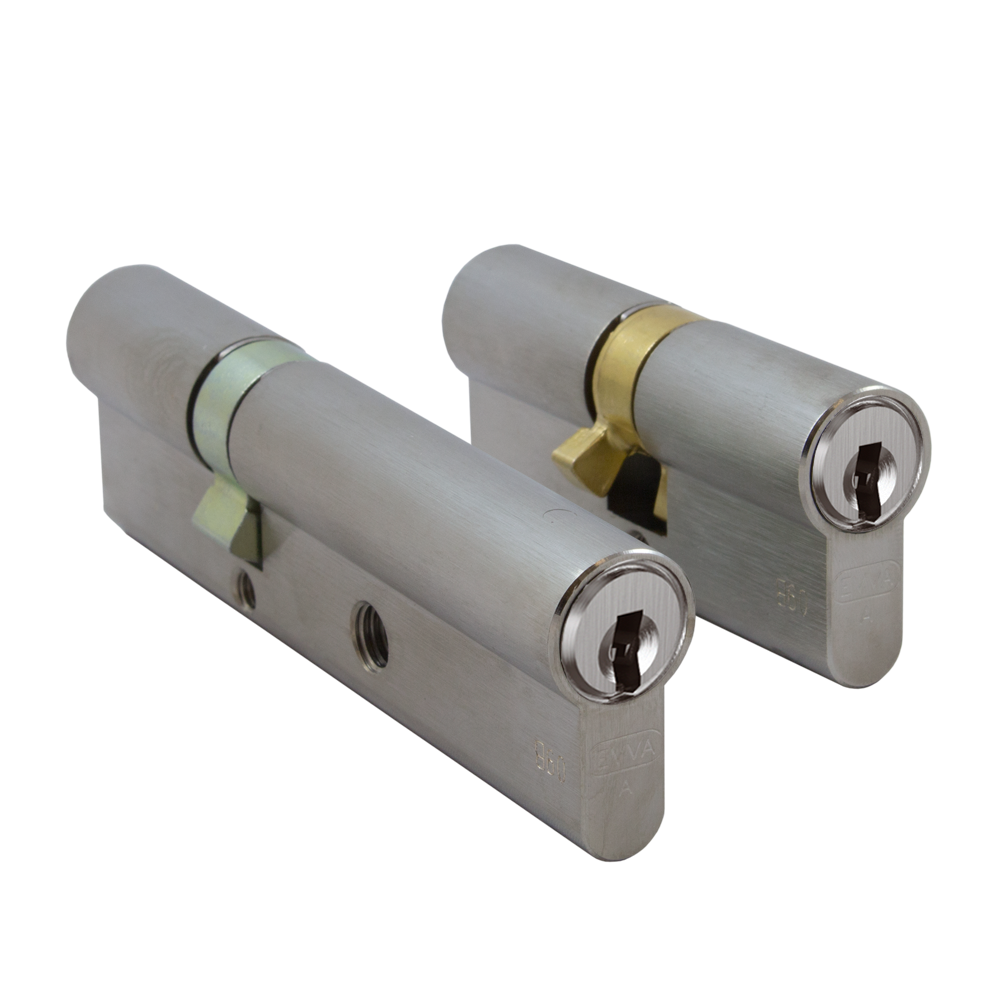

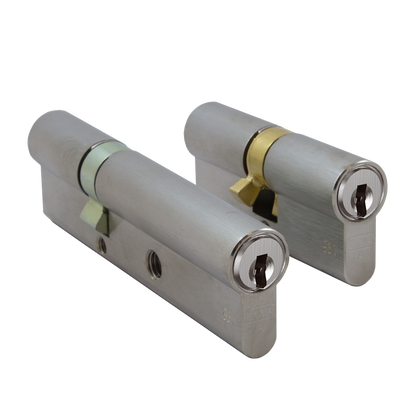

EVVA ICS L111 & S363 Keyed Alike Banham Cylinders Keyed To Differ Set

This Evva ICS L111 & S363 Banham double cylinder set is supplied as a keyed alike pair but a keyed to differ set on the Aldridge in-house section and comes complete with 6 keys. ICS is a durable, patent protected reversible key system designed with maximum keying potential in mind so master key systems can be planned ahead to take into account potential extensions. The system contains a wide variety of cylinders covering virtually any application and offers both legal and technical key protection mechanisms to ensure a high degree of protection against key copying.

If you would like to register your keys once installed, then please click here to visit the EVVA Keys web site.

---

Optional Special Features Available

BSI - 3* Snap Resistant
Bump and snap resistant cylinders Kitemarked on the external anti snap side only with the 3*** logo.

BSZ - External Key Override
Allows operation of the cylinder from the outside even if a key is inserted on the inside.

Z - Cog Wheel Cams
Designed for use with multi-point locks or specialist mortice locks that are operated via a gear ring or a toothed rack, they can be supplied with 10, 13, 14 or 18 teeth instead of a standard cam.

SSW - All Weather Cover
Spring loaded shutter plates mounted on the outside of the cylinder open and close when the key is inserted or removed. NB - adds 5mm to cylinder length.

FL1 - Free Wheel Function
Free wheel function without forced decoupling when key is inserted (supplied in-house), for use with motorised locks.

TXT - Additional Numbering
Specific numbering or sequential numbering on keys to allow the end user to keep track of issued keys and highlight losses.

SEW - Sea Water Protections
For cylinders that are exposed to more severe environmental influences, corrosion-susceptible cylinder parts are supplied with a special surface treatment; this comes as standard for Aldridge cylinders.

NS - Nickel Silver Plug
Ideal for use on high use cylinders such as communal entrances where cylinders are used far more often.

FZG - Free Wheel Function
Certified free wheel function without forced decoupling when key is inserted (factory supplied), for use with motorised locks

FLEX - Adapted Entry
One or both sides of the cylinder can be operated via Square, Triangle, Hexagon or slot feature, e.g. one side could be opened with a key and the other by an 8mm socket.

PA - Partner Cylinder
The cylinder can only be operated when an authorised key is inserted in the opposite side.

GEF - Emergency Key Authorised
A special version of the BSZ function where only the authorised GEFE key can operate the cylinder even if a key is inserted in the other side.

ZVS - Retracted Cylinder Body
For use in special metal framed doors with integrated security roses.

ARS - Plug Pulling Protection
A special nickel silver cam connects to the plugs on both sides to protect from plug pulling attempts.

KZS - Plug Pulling Protection
Carbide components in the plug protect against plug pulling attempts.

Please contact us for more information.

EVVA ICS L111 & S363 Keyed Alike Banham Cylinders Keyed To Differ Set

Features

• Supplied complete with 3 keys
• Patented & registered system
• Wear & drill resistant
• British Standard EN 1303:2005

Finishes

• Nickel Plated

Categories

• Locking Product
• Cylinders
• Banham Cylinders

Our EVVA ICS L111 & S363 Keyed Alike Banham Cylinders Keyed To Differ Set from Evva is a quality tested product at a reasonably low price.

If you need any further information or are looking for an alternative size or similar item please contact us.

Specifications
Body Length	72mm
Finish	Nickel Plated
Handed	Left Hand
Keyed	Keyed Alike Pair
Keys Supplied	3
Length	0mm
Mechanism	6 Pin
Pack Quantity	1
Standards	BS EN 1303:2005,CEN Grade 6
A Side	N/A
B Side	N/A
Product References	L34744
Barcode References	5056240142821
* Information above is accurate at the time of entry and may be subject to change at any time.
