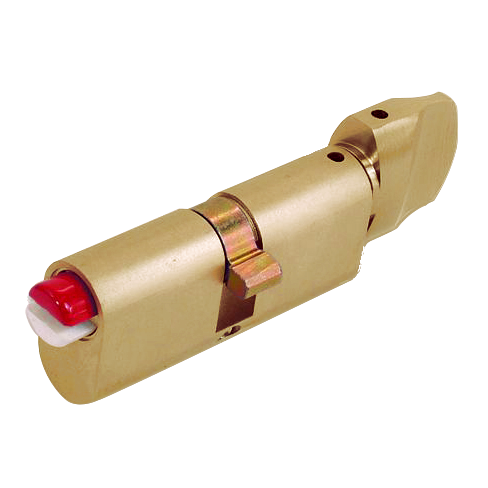

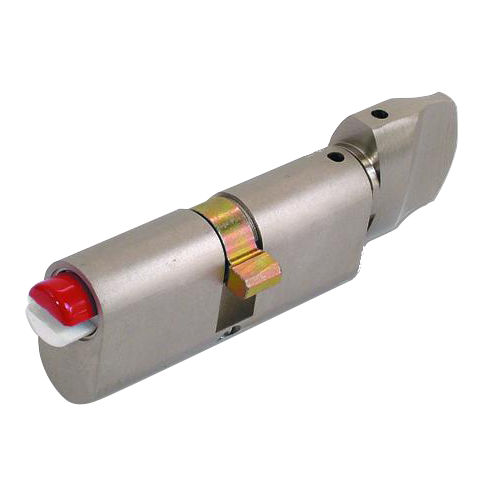

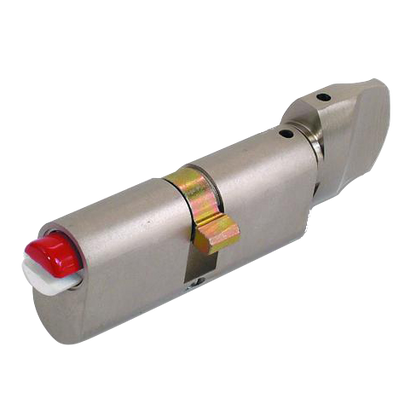

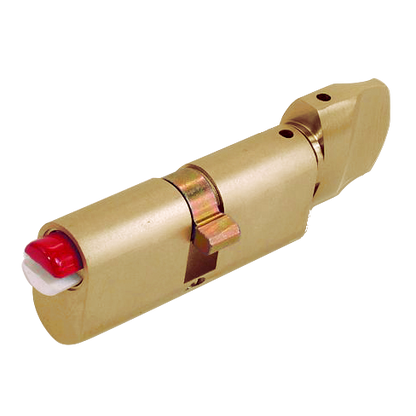

EVVA OKZ Oval WC Cylinder

The EVVA KDZ WC oval key & turn cylinder has an oval profile and is supplied complete with a connecting screw. The EVVA A5 system is a basic but robust 5-pin locking system and is available in many cylinder styles and with many optional special features. It has a thumbturn on one side and on the other is a red and white slot operated (coin etc.) turn for emergency access in applications such as public toilets.

Please be aware that the cam only operates on a 180° rotation from 3 oclock to 9 oclock as they are only for WC Privacy locks.

---

Optional Special Features Available

PBP - Pre Determined Break Point
Cylinder will snap at a pre-determined point to prevent entry via snapping, please note that this function is not TS007 rated.

TXT - Additional Numbering
Specific numbering or sequential numbering on keys to allow the end user to keep track of issued keys and highlight losses.

Please contact us for more information.

EVVA OKZ Oval WC Cylinder

Features

• Suitable for use in situations that require thumbturn operation from one side and emergency access from the other

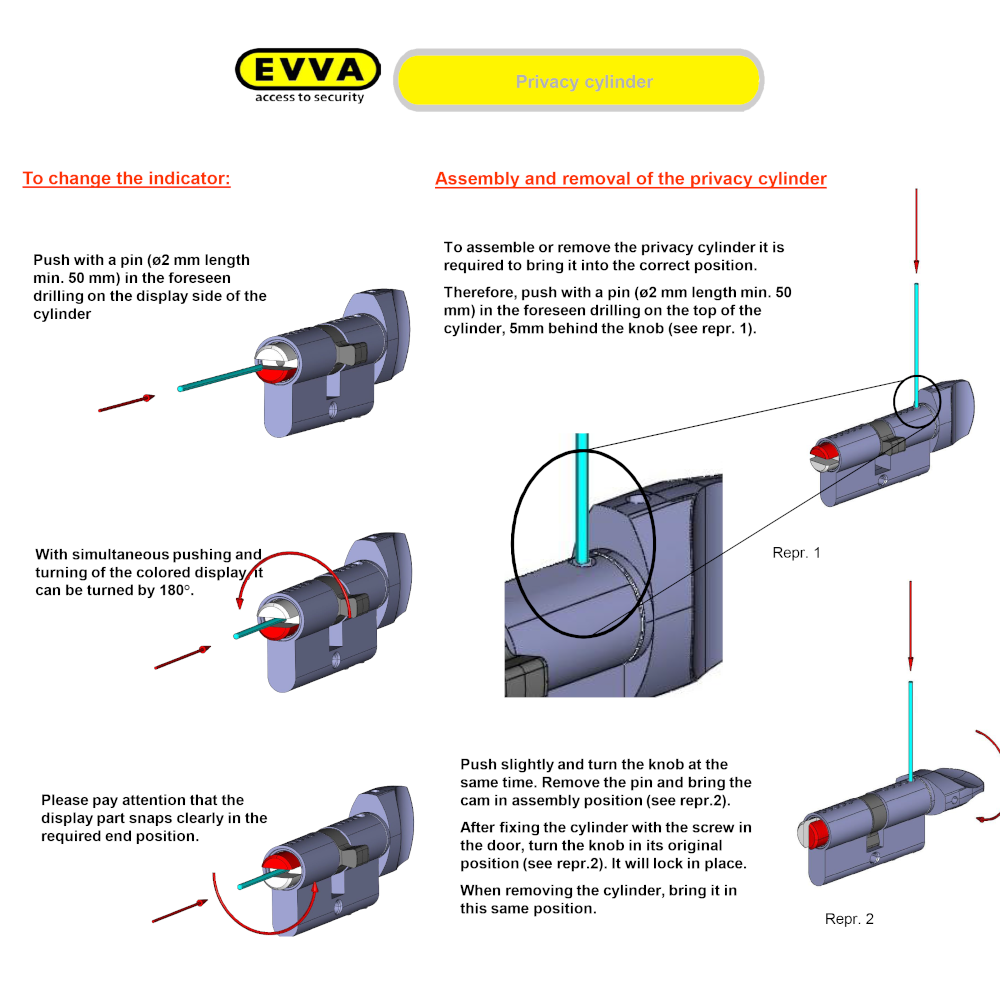

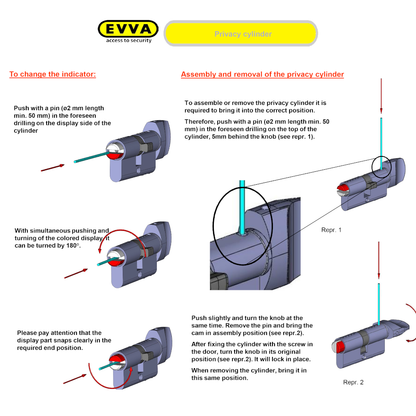

• Fitting instructions available on request
• 30 minute fire resistance to 821° C
• Please note: The cam only operates on a 180° rotation from 3 oclock to 9 oclock as they are only for WC Privacy locks

Finishes

• Nickel Plated
• Polished Brass

Categories

• Locking Product
• Cylinders
• Evva
• Components - Compact
• WC Cylinder

Our EVVA OKZ Oval WC Cylinder from Evva is a quality tested product at a reasonably low price.

If you need any further information or are looking for an alternative size or similar item please contact us.

Option Specifications
Body Length	72mm
Finish	Nickel Plated, Polished Brass
Keyed	N/A
Length	72mm
Mechanism	N/A
A Side	36mm
B Side	36mm (Turn)
Product References	L9689, L9688
Barcode References	5055120640082, 5055120640105
* Information above is accurate at the time of entry and may be subject to change at any time.
