Brand: Geze

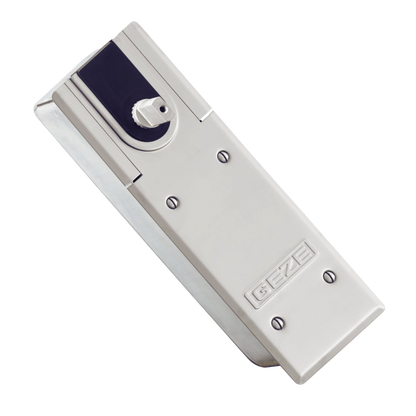

GEZE TS500N EN3 Size 3 Floor Spring
GEZE TS500N EN3 Size 3 Floor Spring
By purchasing you are agreeing to our Terms of Sale.
Low stock: 1 left
Couldn't load pickup availability
The Geze TS500 N EN3 floor spring is a compact floor spring, which has been designed for smaller swing and double action doors with a maximum leaf width of 950mm and weight of 100kg. With a size 3 closing force, this door closer also features fully adjustable end stop and closing speed, with the added convenience that all adjustments can be made easily from above.
GEZE TS500N EN3 Size 3 Floor Spring
Features
- For use on doors with a maximum leaf width of 950mm
- Fixed closing force size EN 3
- Adjustable end stop and closing speed
- Can be used with both swing and double action doors
- Fixed opening buffer
- Can be adjusted from the front of the unit
Finishes
- Silver
Categories
- Architectural Hardware
- Door Closer
- Floor
Our GEZE TS500N EN3 Size 3 Floor Spring from Geze is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
| Specifications | |
|---|---|
| Body Length | 278mm |
| Body Width | 82mm |
| Depth | 42mm |
| Height | 42mm |
| Width | 10.5cm |
| Finish | Silver |
| Handed | Non Handed |
| Hold Open | No |
| Length | 29.8cm |
| Max Door Weight | 100Kg |
| Max Door Width | 950mm |
| Pack Quantity | 1 |
| Standards | BS EN 1154 |
| Strength Size | 3 |
| Adjustable Closing Speed | Yes |
| Product References | L27503 |
| Barcode References | 5055120786469 |
| * Information above is accurate at the time of entry and may be subject to change at any time. | |
