This mini magnet by ICS security has an operating voltage of either 12V DC or 24V DC. It has a holding force of 272kg (600lbs), operating temperature between 10°C & 55°C (14°F & 131°F) and a current draw of 500mA at 12Vdc, & 250mA at 24Vdc.

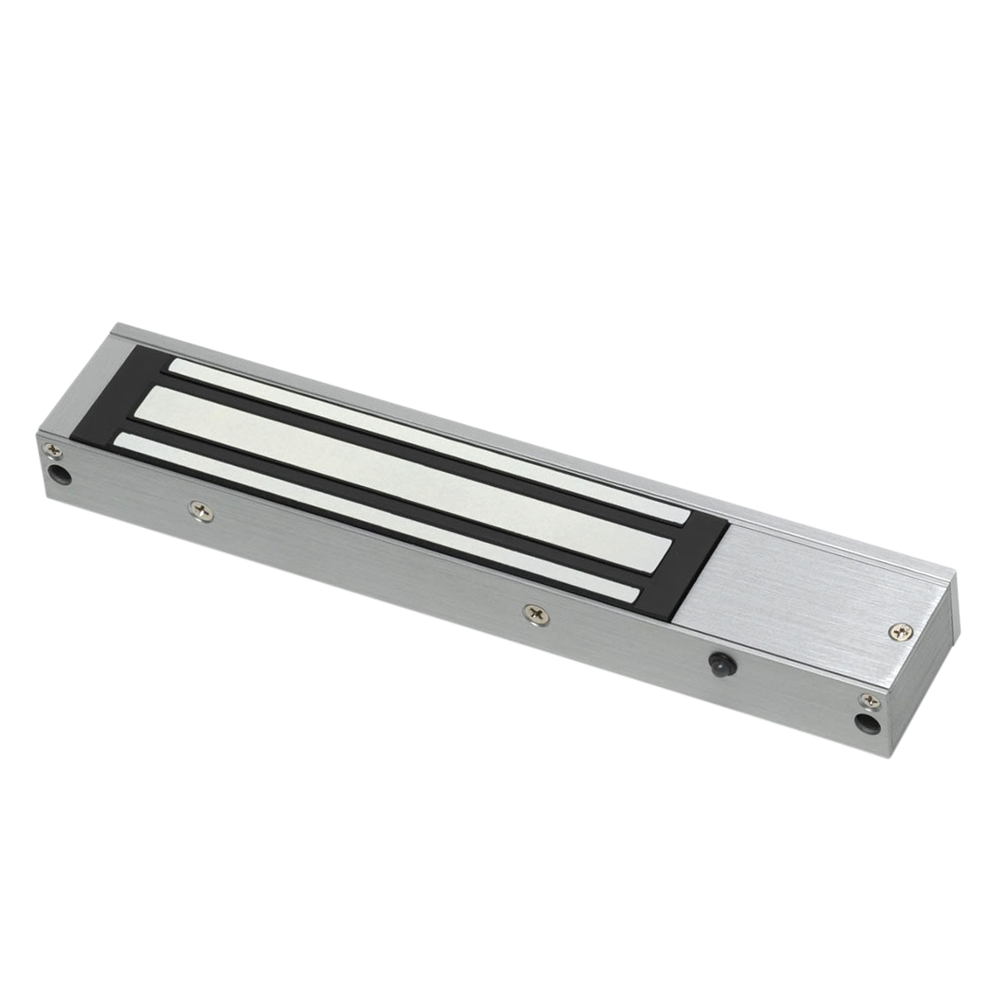

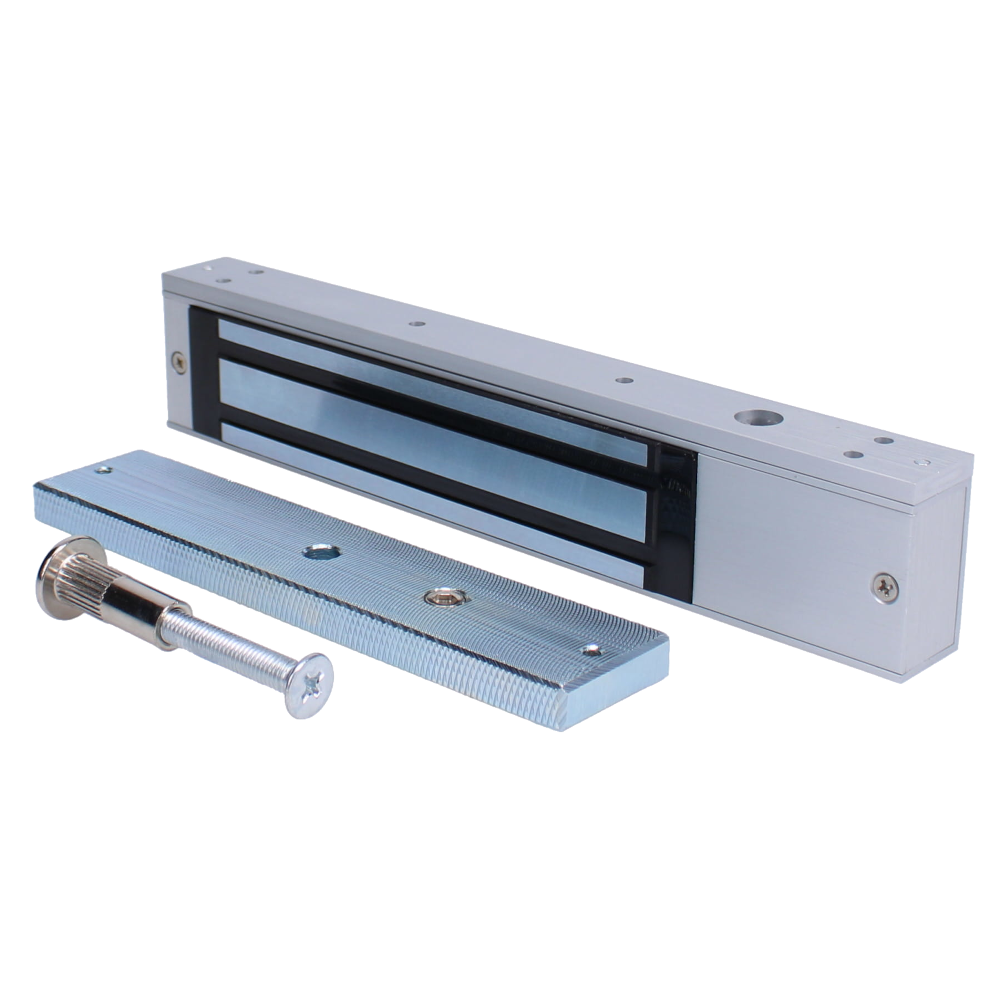

ICS A-Series 12/24VDC Mini Surface Magnet
Features
Holding force of up to 272 kg (600lbs)
Single surface magnet
12 or 24 Vdc operating voltage
Operating temperature between -10 & 55°C (14 & 131°F)
Humidity 0 to 95% non-condensing
Fail-safe
Finishes
Satin Anodised Aluminium
Categories
Access Control
Electric Locking
Magnet
ICS
Our ICS A-Series 12/24VDC Mini Surface Magnet from ICS is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
Option Specifications
Finish
Satin Anodised Aluminium
Handed
Outward Opening
Input Voltage
12/24V DC

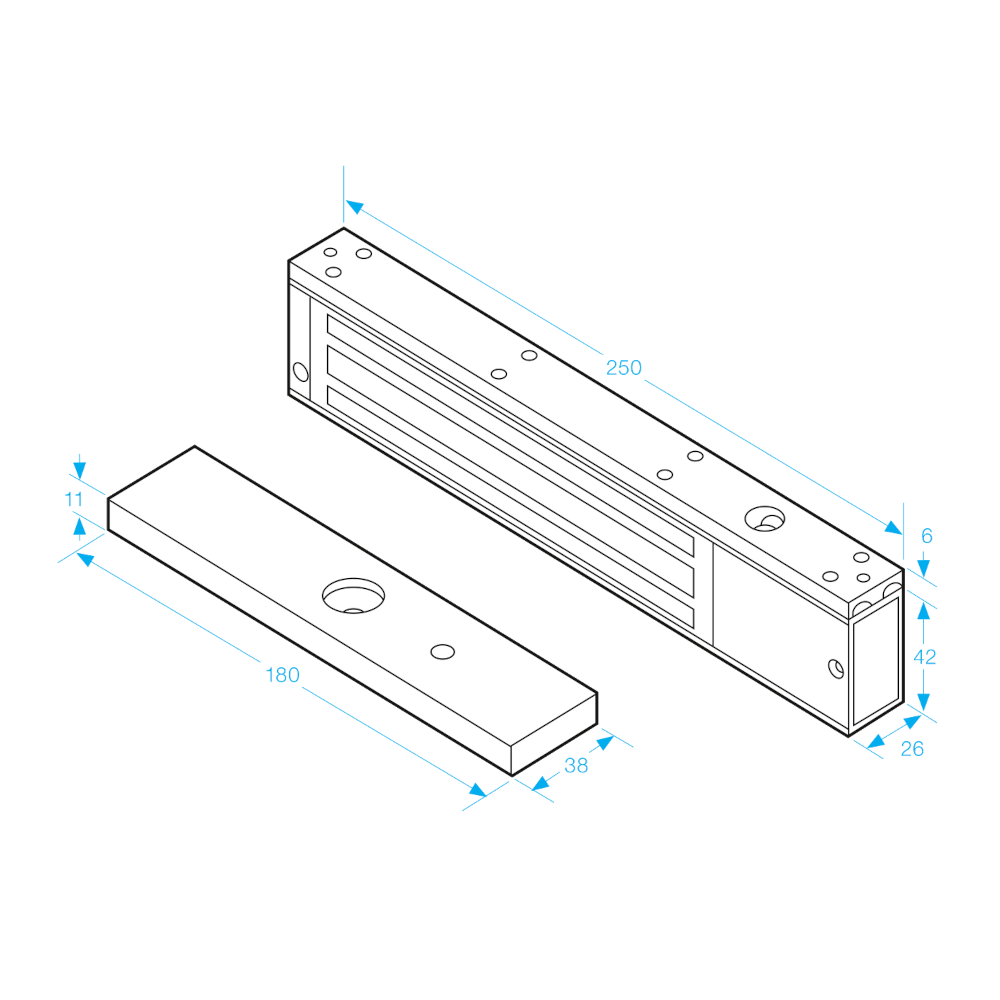

Magnet Depth
26mm
Magnet Height
42mm
Magnet Length
250mm
Monitored
No
Pack Quantity
1
Weather Resistant
Yes
Product References
L24126, L24125
Barcode References
5055120756820, 5055120756813
* Information above is accurate at the time of entry and may be subject to change at any time.
