Brand: ICS
ICS Fire Rated Micro Shearlock Shear Magnet
ICS Fire Rated Micro Shearlock Shear Magnet
By purchasing you are agreeing to our Terms of Sale.
Low stock: 5 left
Couldn't load pickup availability

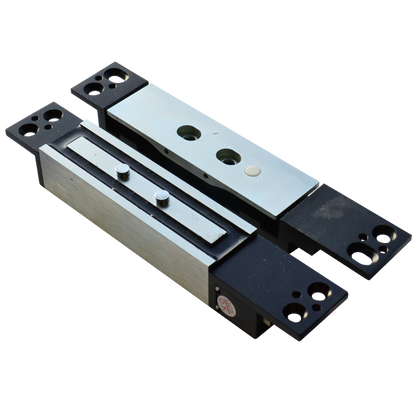

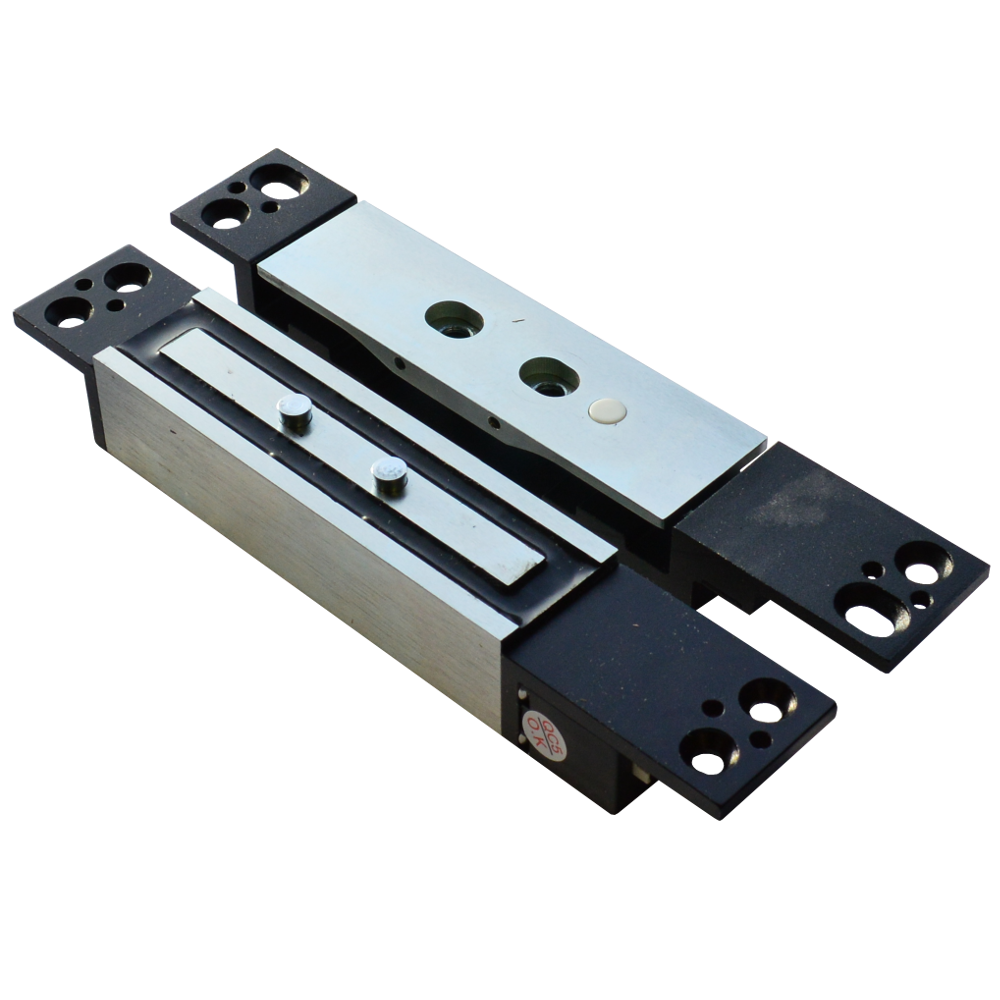

The FR-SL500 Micro Shear Lock from ICS is fire tested to BS EN 1634 and it is suitable for both FD30 and FD60 applications. It has a holding force of up to 1,200Kg in shear (2,600lbs), as well as an adjustable locking time delay (0.5 to 25 seconds). Please note that, to achieve fire door suitability, the product must be fitted with the intumescent pack provided.
ICS Fire Rated Micro Shearlock Shear Magnet
Features
- Mortice fitting
- Up to 1,200Kg (2,600lbs) holding force in shear
- Adjustable locking time delay of 0.5 to 25 seconds
- N.C N.O Com
Finishes
- Satin Anodised Aluminium
Categories
- Architectural Hardware
- Fire Safety
- Locks & Cylinders
- Electric Locking
Our ICS Fire Rated Micro Shearlock Shear Magnet from ICS is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
| Specifications | |
|---|---|
| Delayed Action | Yes |
| Finish | Satin Anodised Aluminium |
| Fire Tested | Yes |
| Handed | No |
| Input Voltage | 12/24V DC |
| Magnet Length | 137mm |
| Pack Quantity | 1 |
| Standards | BS EN 1634 |
| Product References | L30082 |
| Barcode References | 5056240108445 |
| * Information above is accurate at the time of entry and may be subject to change at any time. | |
