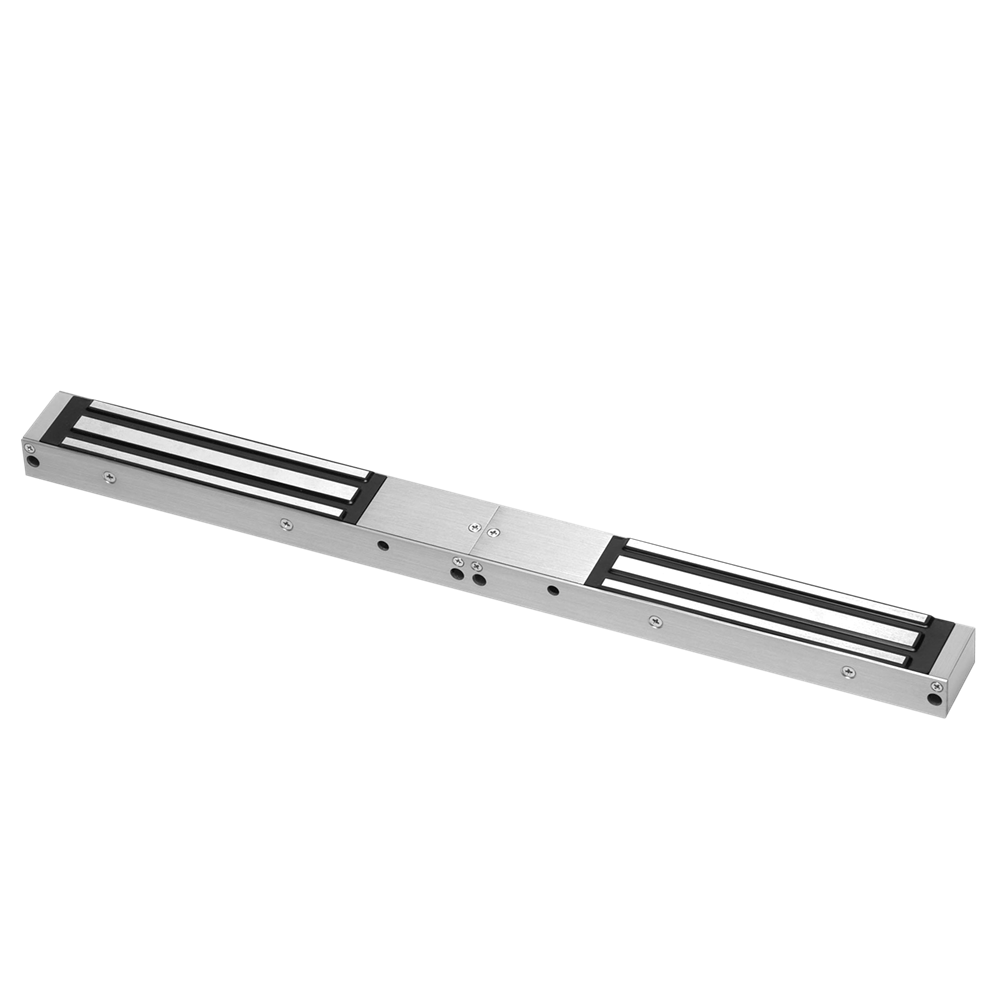

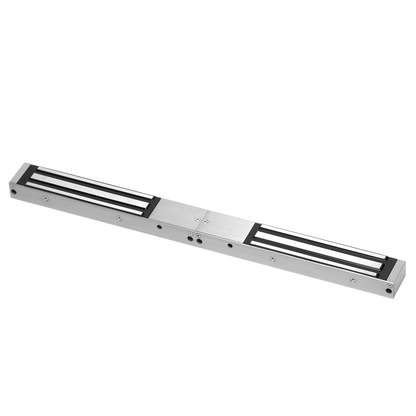

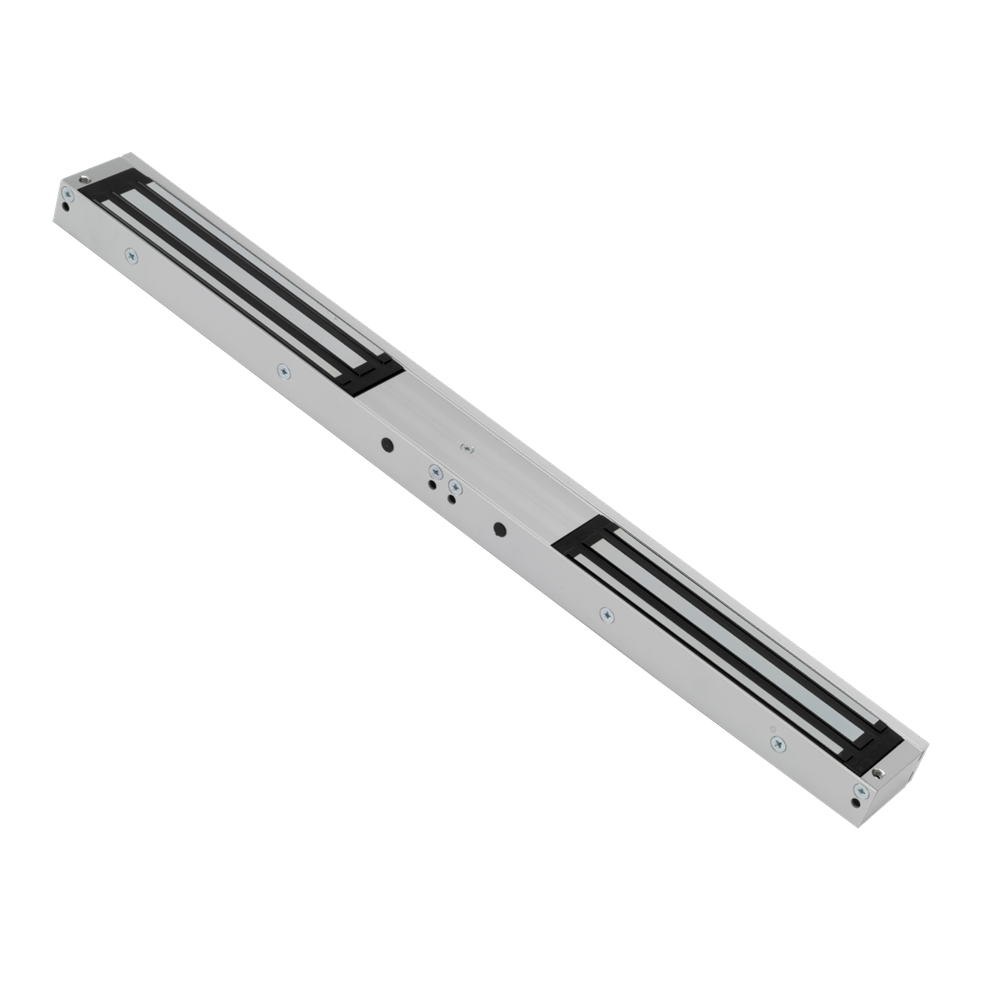

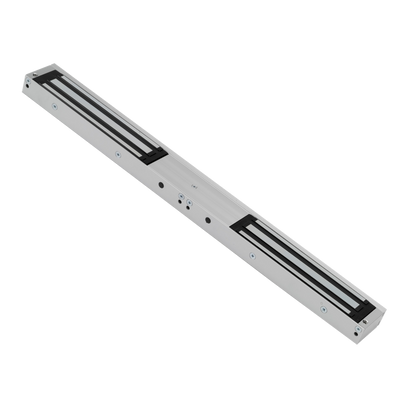

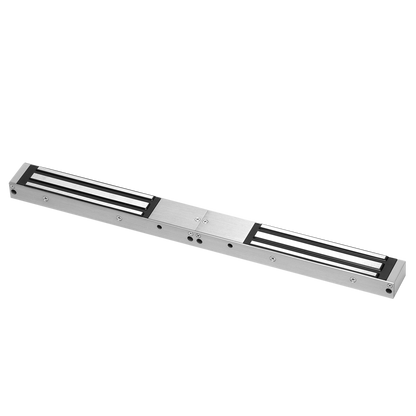

ICS U-Series 12 24VDC Mini Double Surface Magnet
ICS U-Series 12 24VDC Mini Double Surface Magnet
Regular price
£84.20
Regular price
£0.00
Sale price
£84.20
Unit price
/
per
By purchasing you are agreeing to our Terms of Sale.
Low stock: 1 left
Couldn't load pickup availability
Double mini magnet by ICS security with an operating voltage of 12 or 24 Vdc. This magnet has a holding force of 272kg (600lbs) per door, operating temperature between 10°C & 55°C (14°F & 131°F) and a current draw of 500mA at 12Vdc, & 250mA at 24Vdc.
ICS U-Series 12 24VDC Mini Double Surface Magnet
Features
- Holding force of up to 272 kg (600lbs) per door
- Double surface magnet
- 12 or 24 Vdc operating voltage
- Operating temperature between -10 & 55°C (14 & 131°F)
- Humidity 0 to 95% non-condensing
Finishes
- Satin Anodised Aluminium
Categories
- Access Control
- Electric Locking
- Magnet
- ICS
Our ICS U-Series 12 24VDC Mini Double Surface Magnet from ICS is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
Option Specifications | |
---|---|
Depth | 26mm |
Height | 26mm |
Width | 25cm |
Finish | Satin Anodised Aluminium |
Handed | Outward Opening |
Input Voltage | 12/24V DC |
Magnet Depth | 25mm |
Magnet Height | 42.5mm |
Magnet Length | 500mm |
Monitored | Yes |
Pack Quantity | 1 |
Product References | L30076, L32520, L32519 |
Barcode References | 5056240108384, 5056240125213, 5056240125206 |
* Information above is accurate at the time of entry and may be subject to change at any time. |
