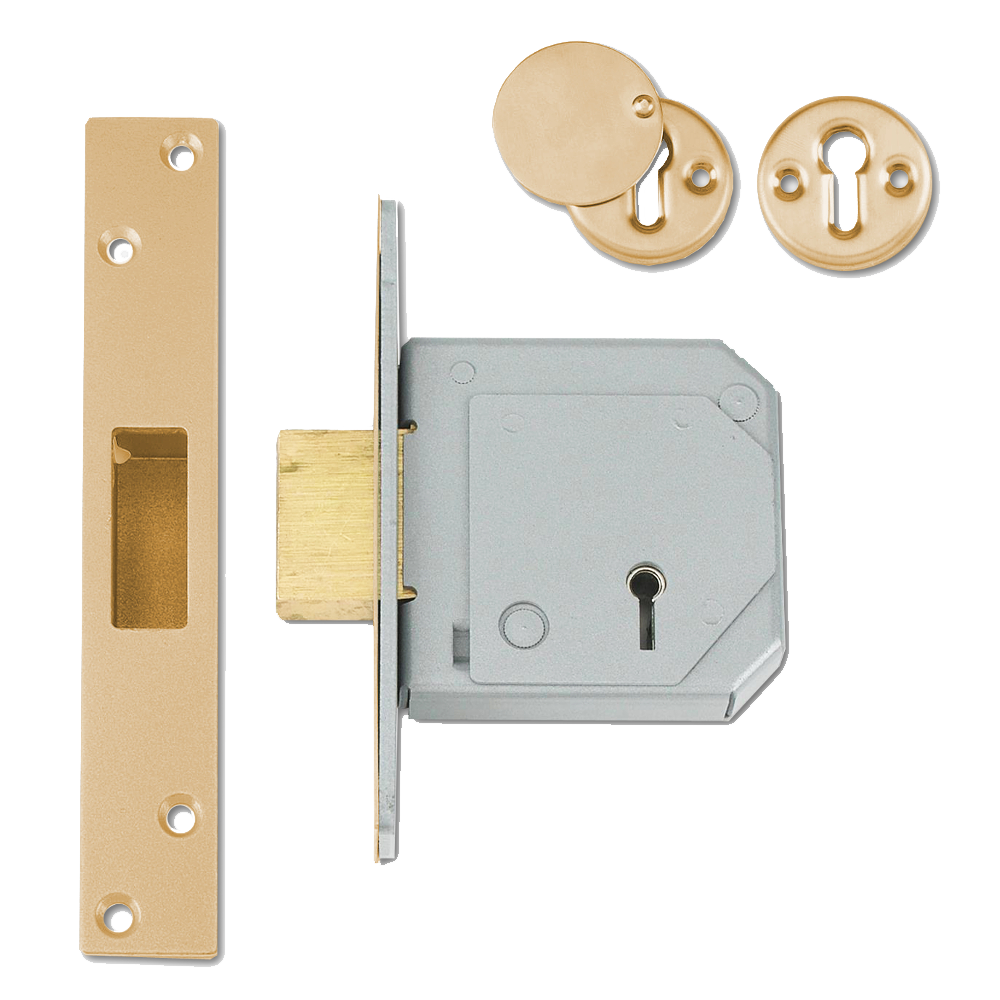

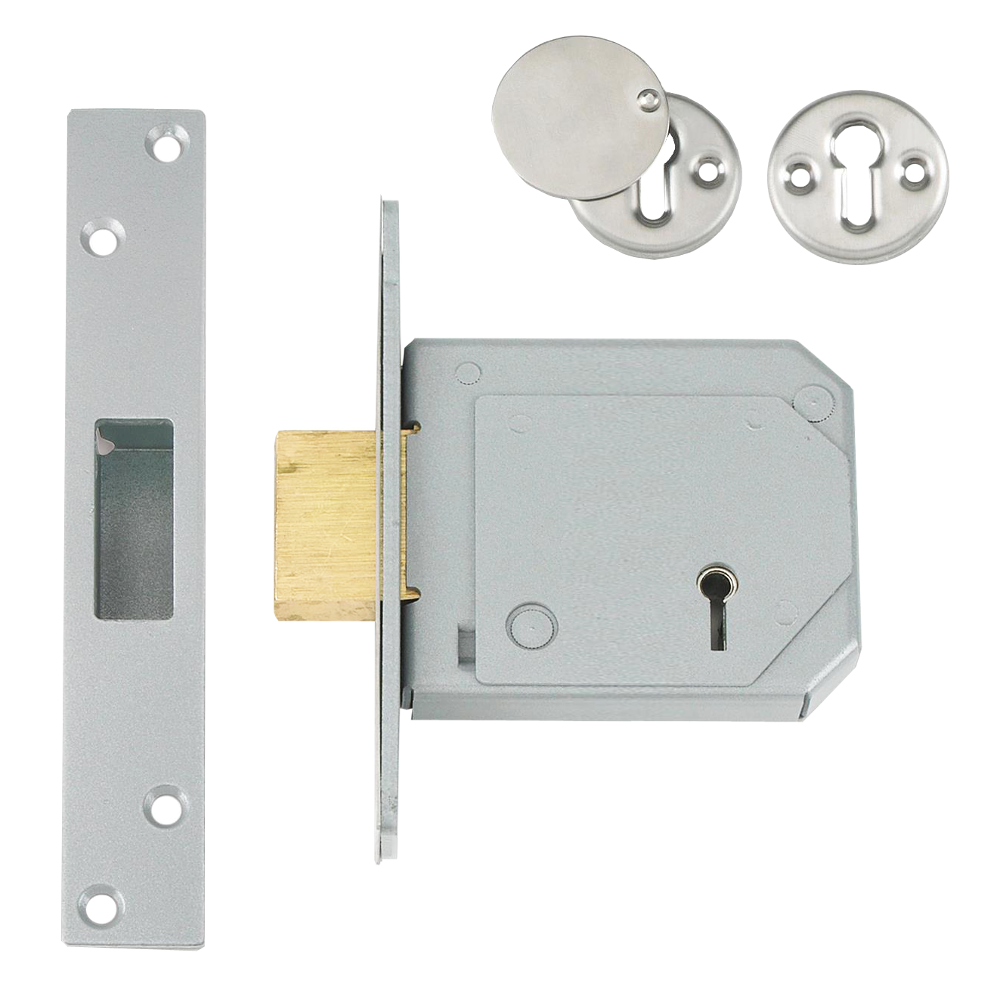

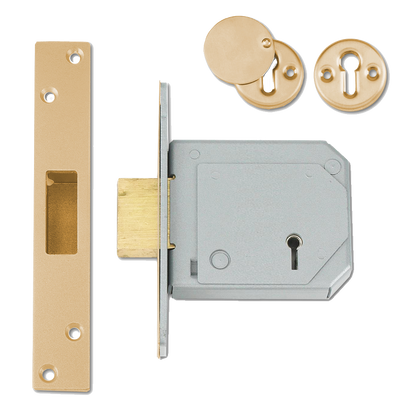

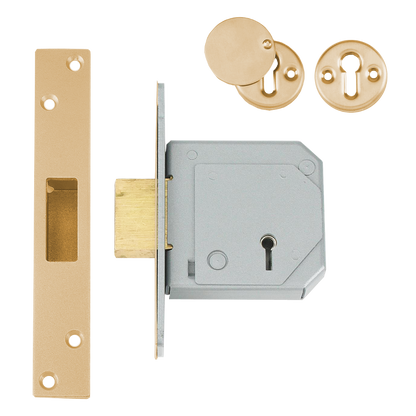

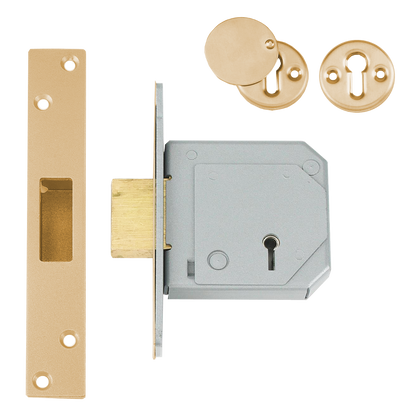

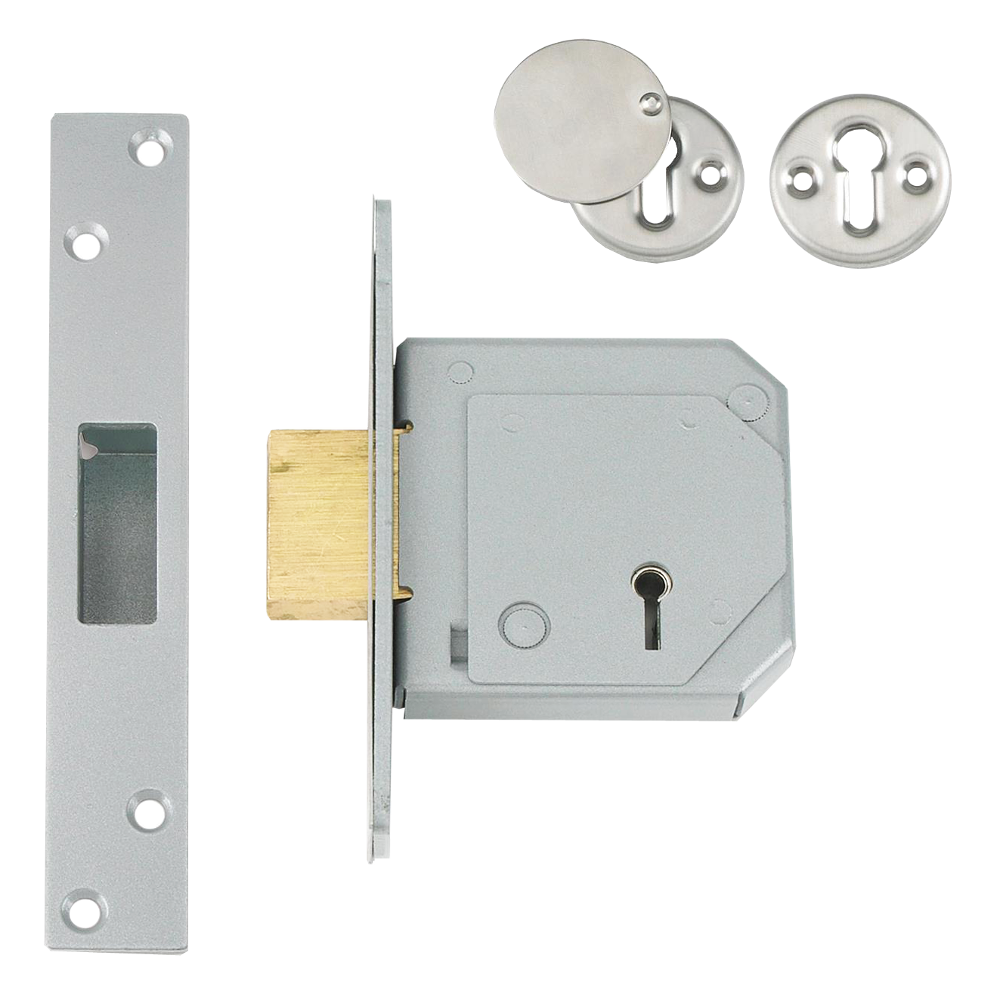

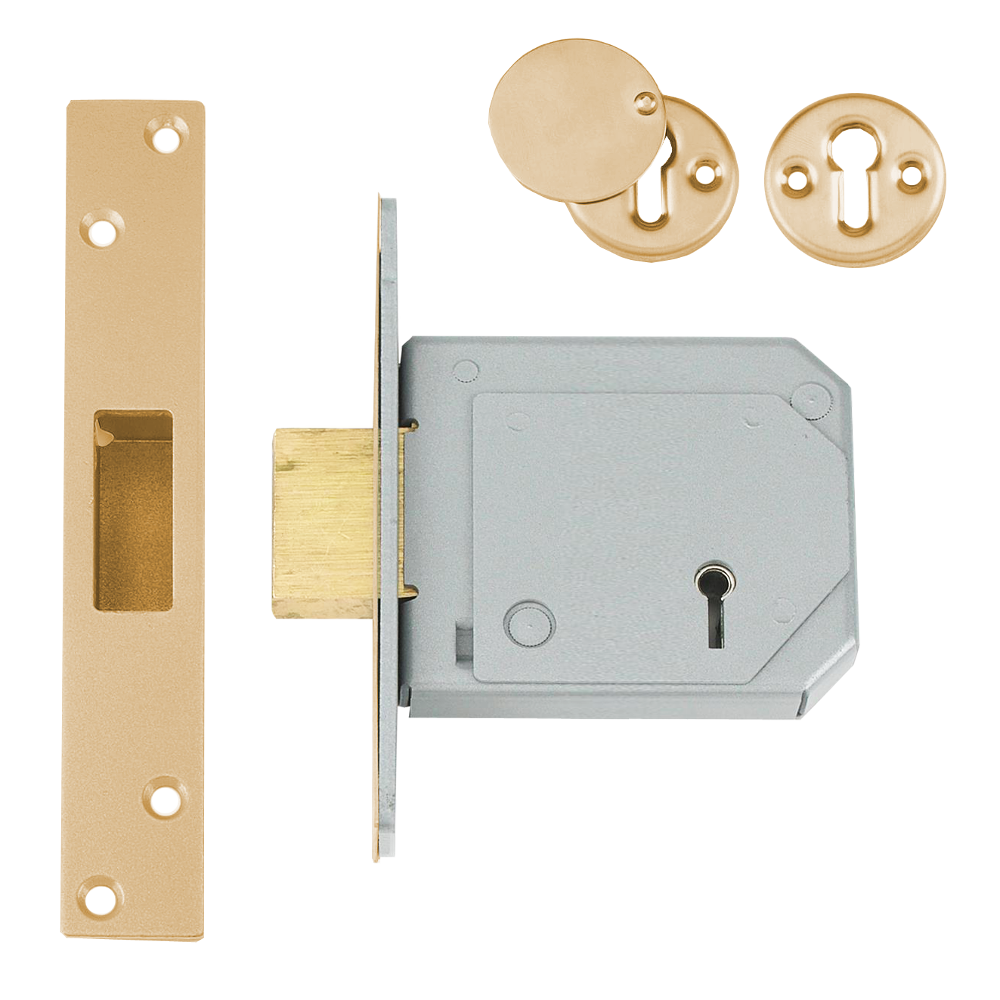

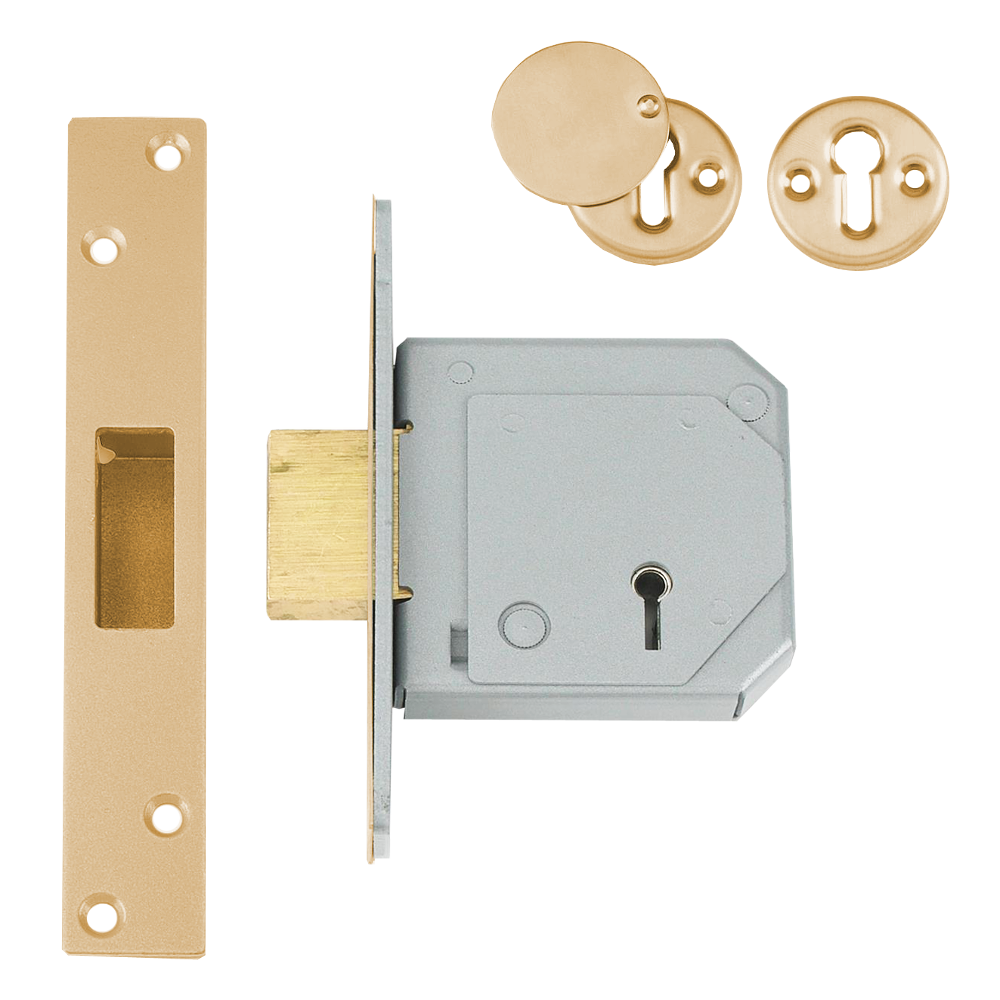

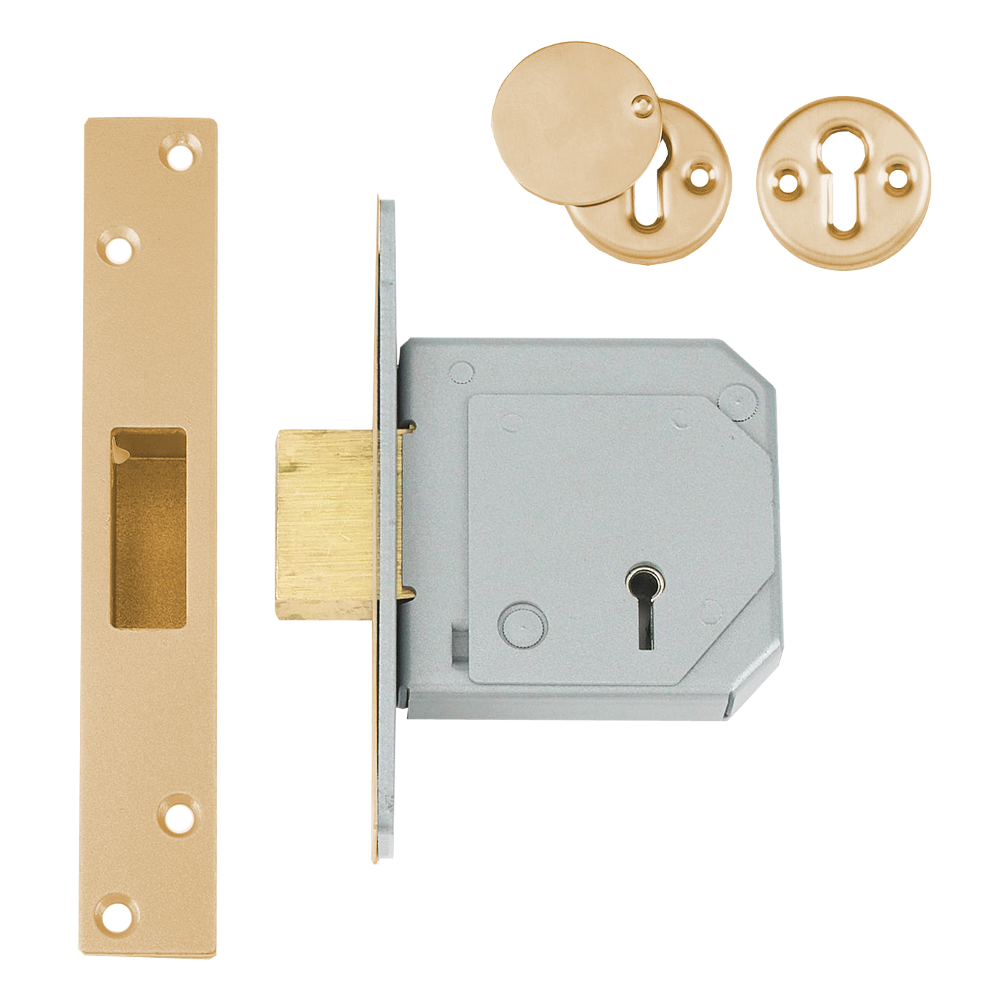

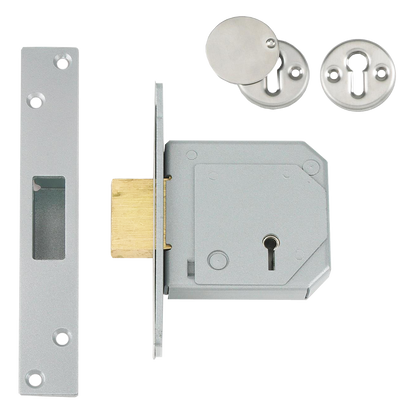

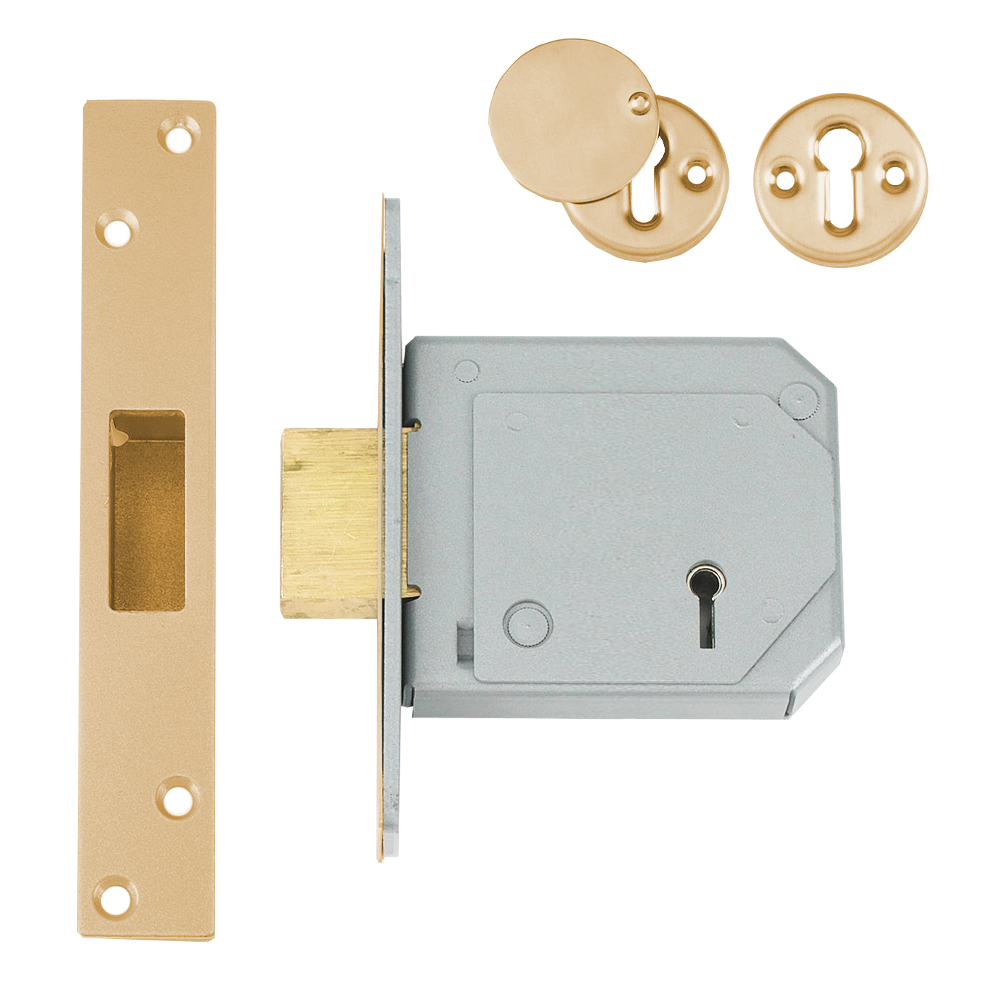

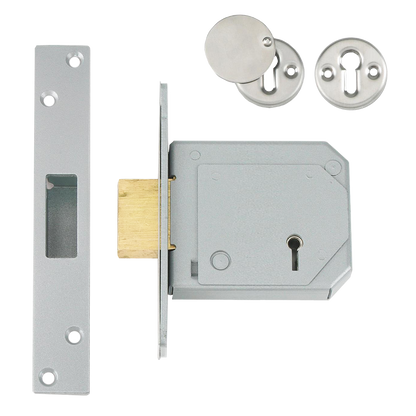

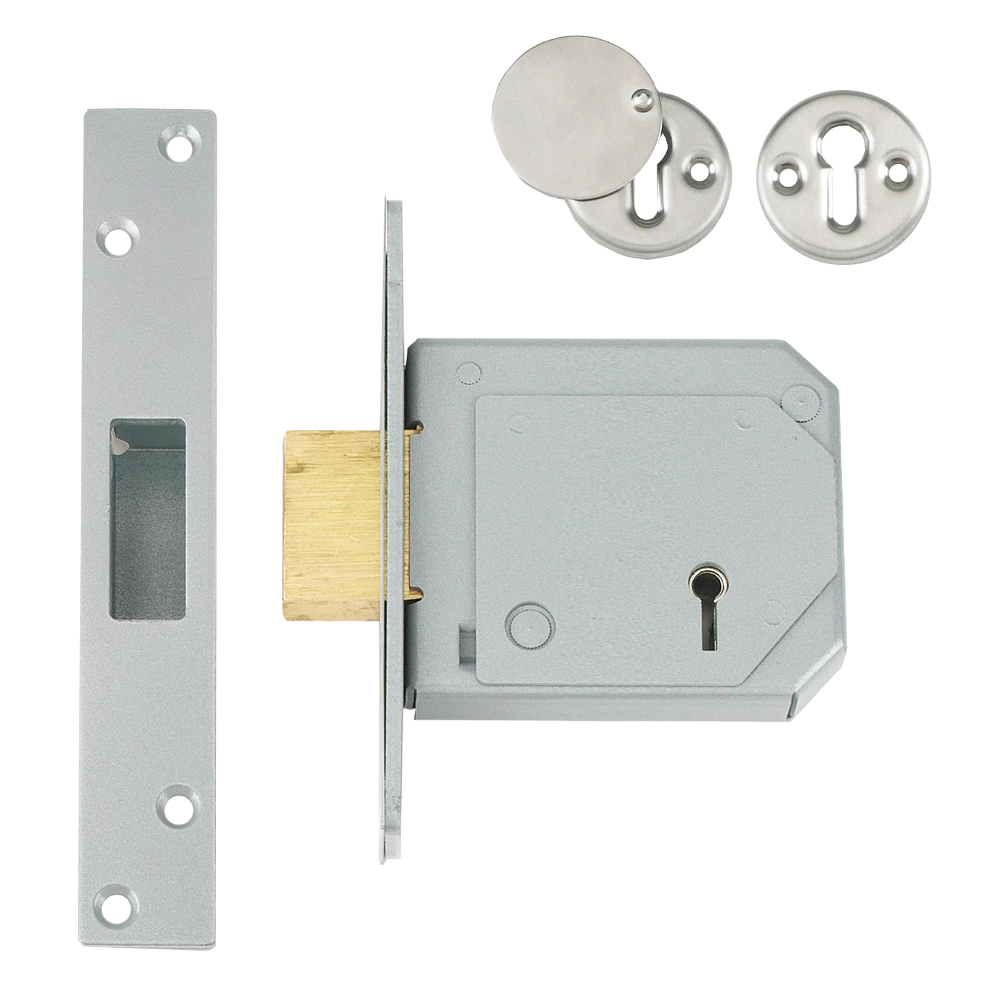

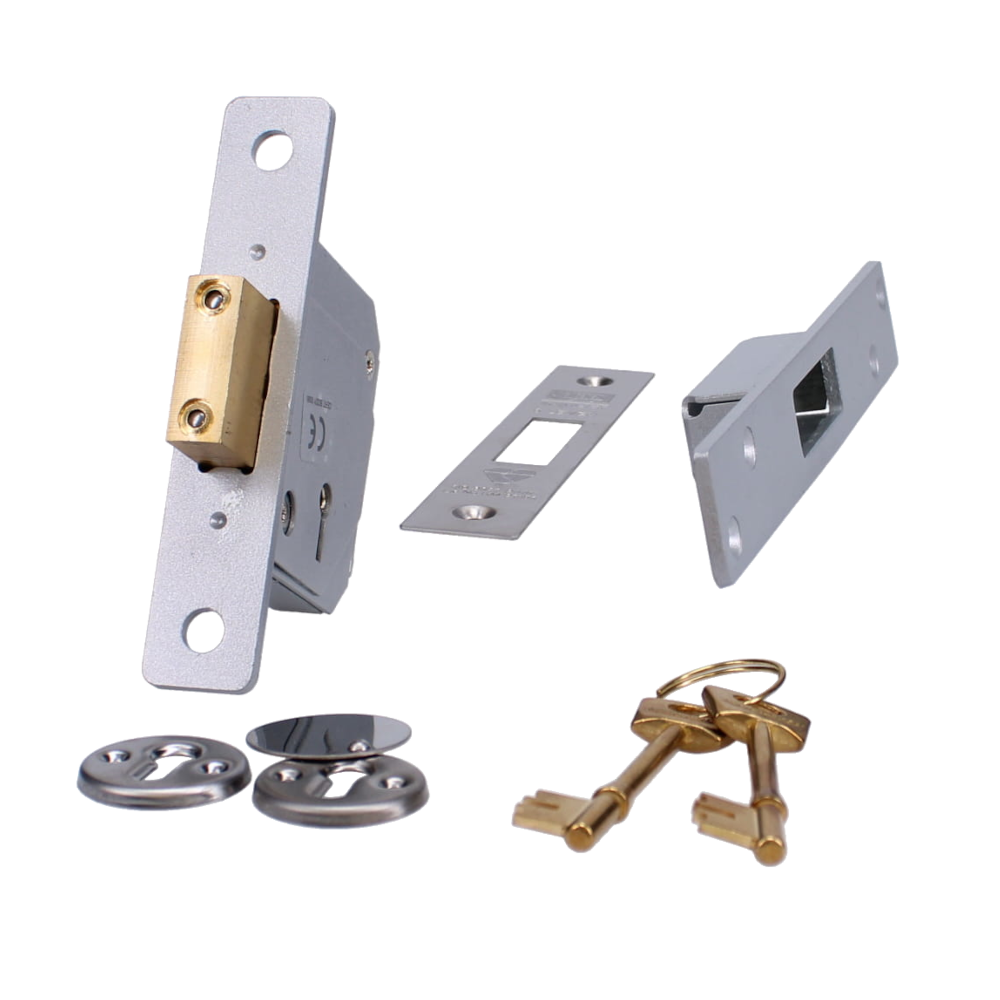

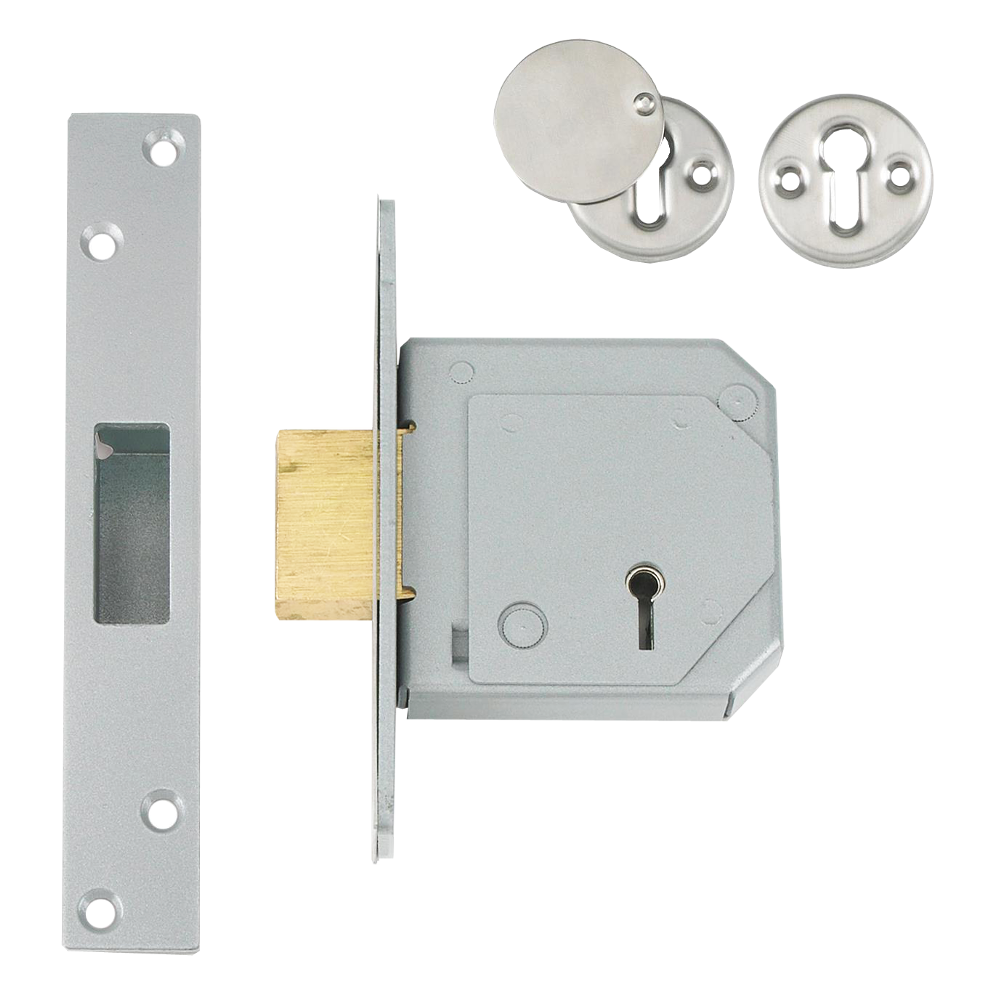

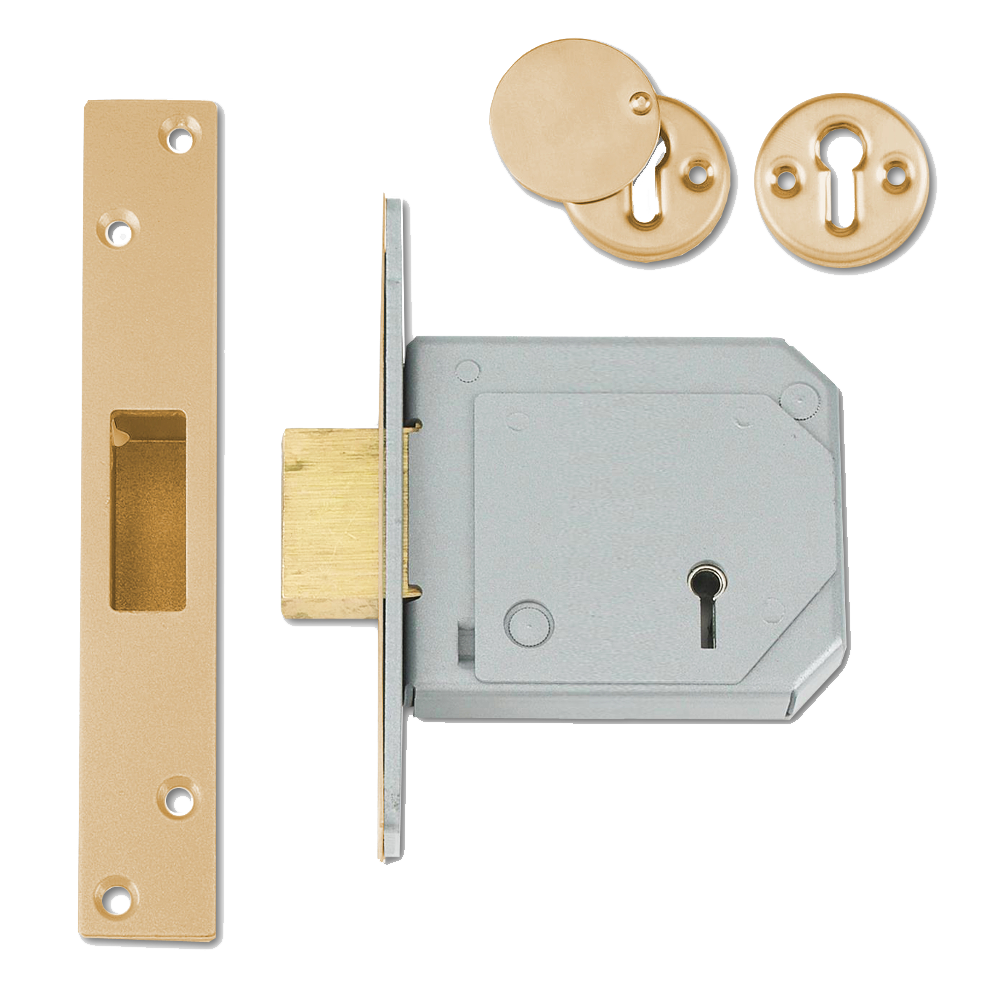

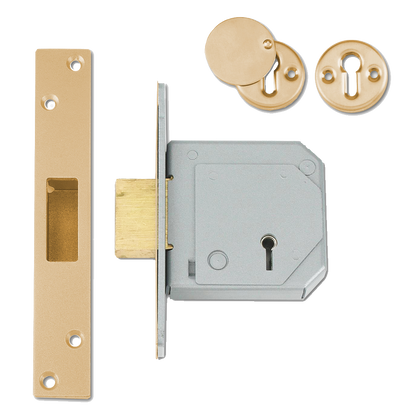

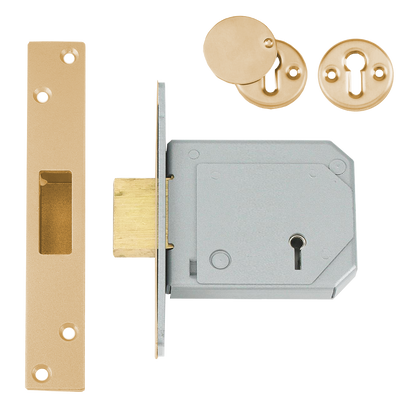

The 3G114E is a British Standard 5 Lever Mortice Deadlock from the Union C-Series (formerly known as Chubb) which is Secured by Design (Police approved specification) as well as being EN 1634-1 assessed 60 minutes use on timber fire doors up to 50mm thick, and it has been tested to BS3621:2007. With a 25 Year Manufacturer's Guarantee, the 3G114E is a robust and reliable choice of deadlock, with anti-drill, anti-pick and anti-saw security features plus hardened steel rollers. It is available with a variety of case depths, backsets & finishes and it is supplied complete with matching escutcheons and box strike.
UNION C-Series 3G114E BS 5 Lever Deadlock
Features
Anti-pick, anti-saw and anti-drill security features with a 25 Year Guarantee
Can be supplied with micro-switches for use with alarm systems
Supplied with matching escutcheons
Hardened steel rollers 20mm deadbolt
EN1634-1 use on 60 min timber fire doors
Secured by Design (SBD licence held by ASSA ABLOY - Door Hardware Group)
Finishes
Polished Brass

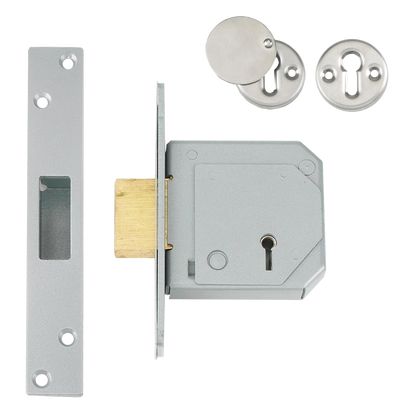

Satin Chrome
Categories
Locking Product
Mortice Locks & Latches
Deadlocks
5 Lever BS04
Our UNION C-Series 3G114E BS 5 Lever Deadlock from Union C-Series is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
Option Specifications
Backset
53mm, 40mm
Bolt Throw
20mm
Case Finish
Silver
Case Height
76mm
Case Depth
80mm, 67mm
Finish
Polished Brass, Satin Chrome
Fire Tested
Yes
Forend Length
133mm
Forend Width
25mm
Keyed
Keyed To Differ, Keyed Alike - Sets of 6
Keys Supplied
3, 2
Mechanism
5 Lever BS
Pack Quantity
1, 20
Standards
Secured By Design,BS EN 3621, BS EN 3621,Secured By Design
