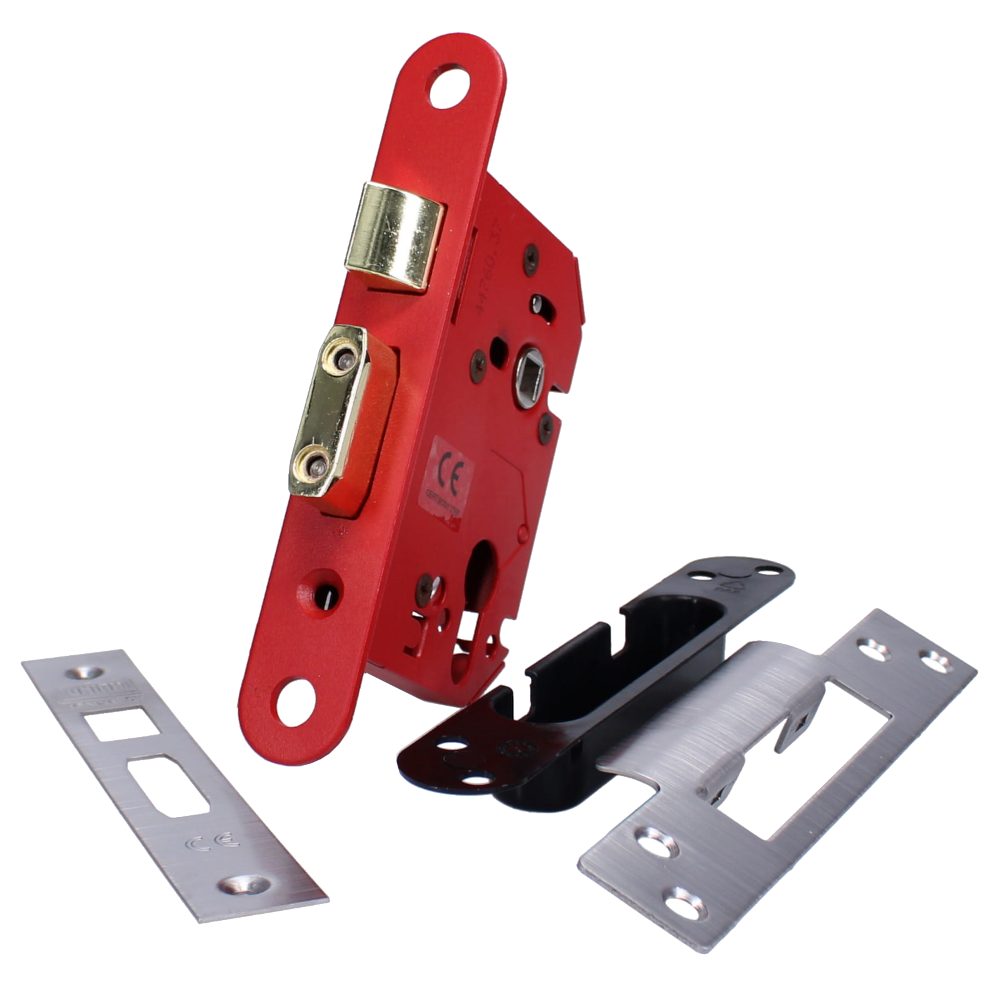

As well as the unique chamfered bolt design, the UNION StongBOLT™ has been further developed based on extensive research and feedback. It now also incorporates an easy reversible radius latch that uses the unique UNION SwitchLatch™ technology, anti rattle adjustable strike for onsite fine tuning, and plastic splinter guard for easy installation and a professional finish.

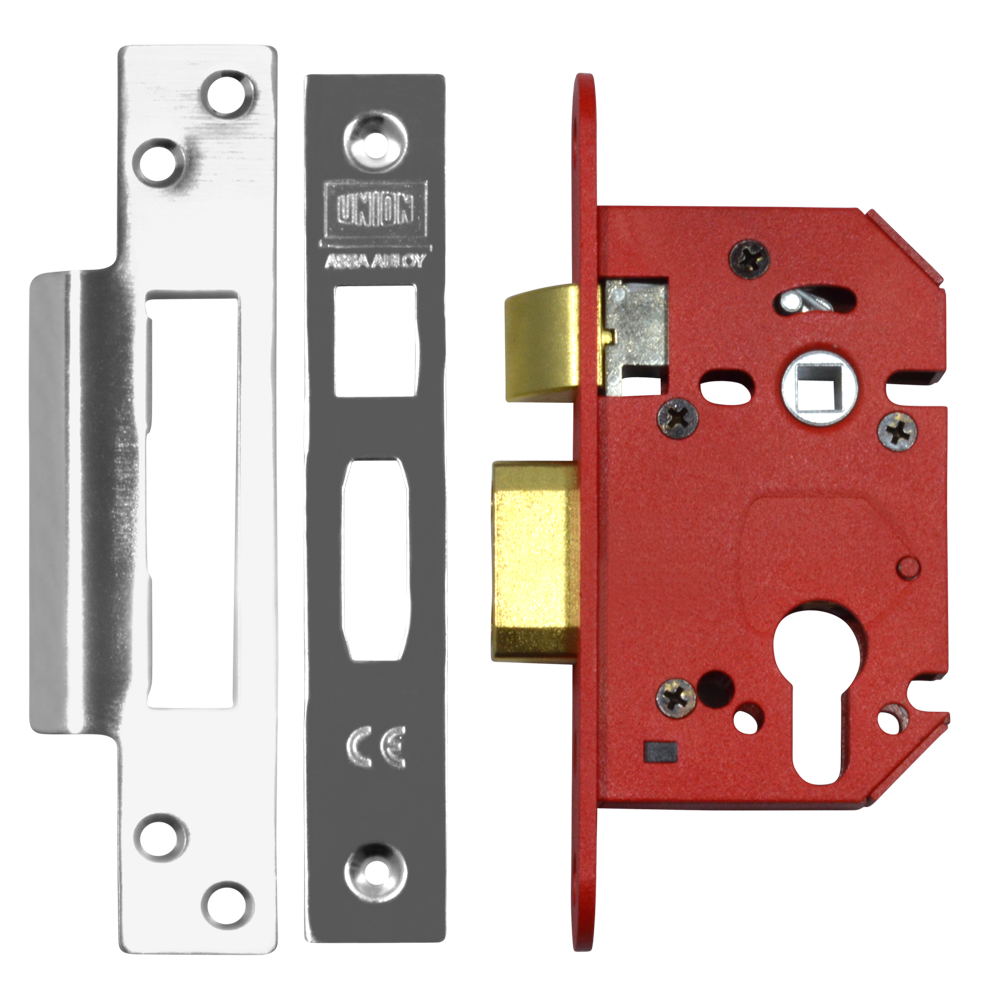

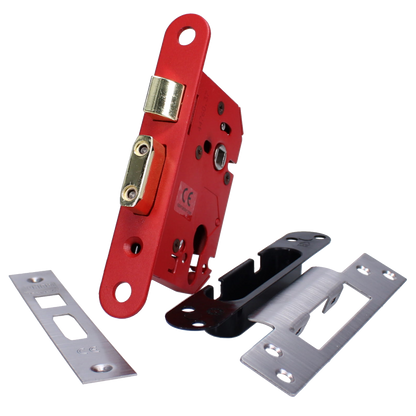

UNION JL22EUS StrongBOLT Euro Sashcase
Features
Pick, saw & force resistant
Suitable for use on fire doors
CE marked
Certifire approved
Reversible radius latch
Square faceplate & radius inner forend for ease of installation
Finishes

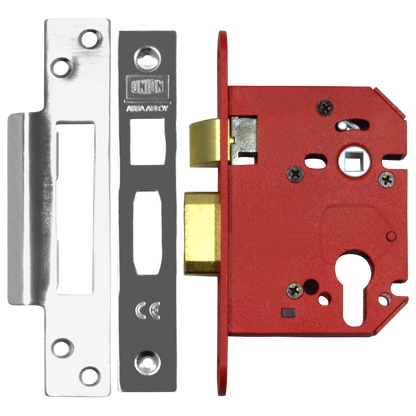

Stainless Steel

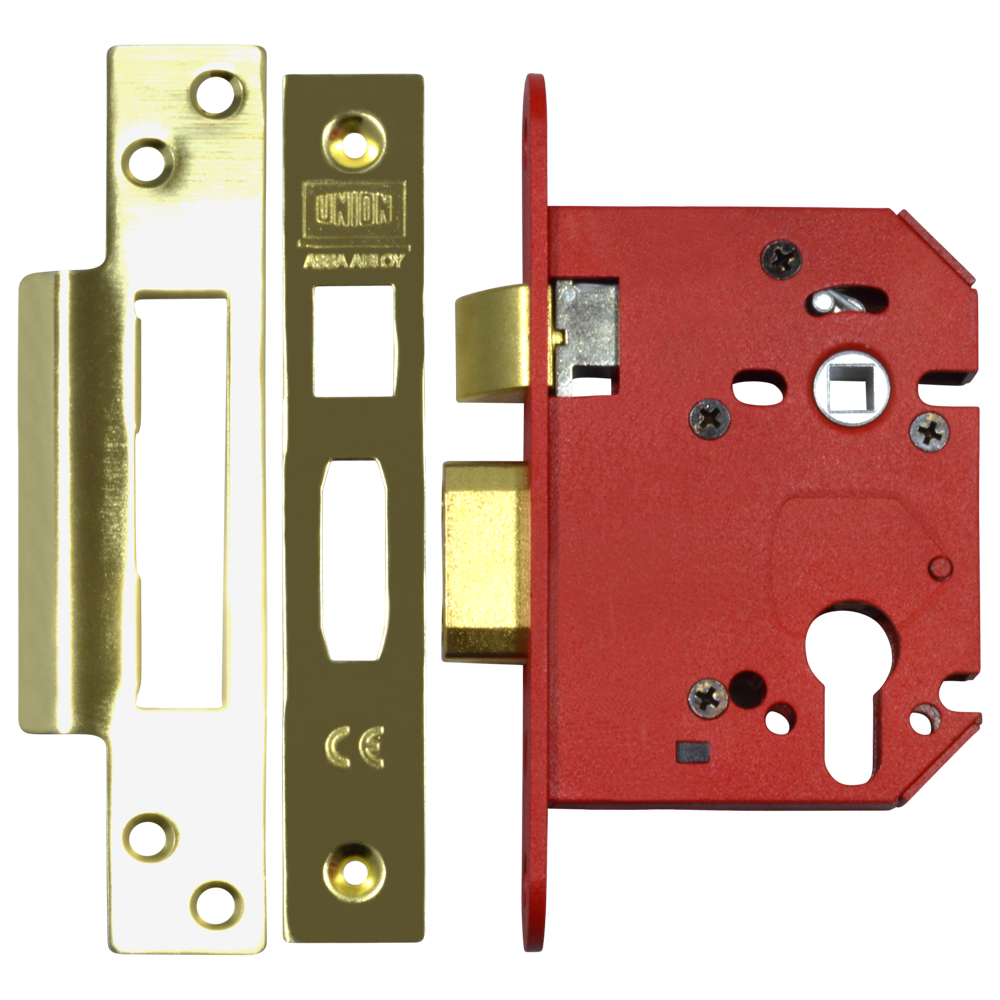

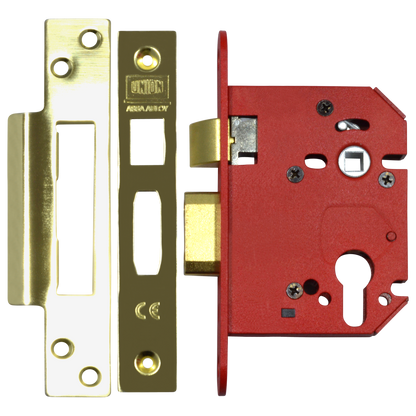

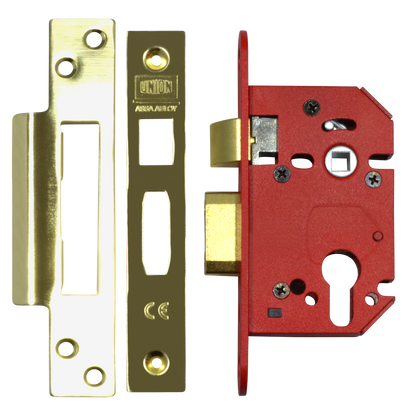

Polished Brass
Categories
Locking Product
Mortice Locks & Latches
Sashlocks
Cylinder - Euro
Our UNION JL22EUS StrongBOLT Euro Sashcase from Union is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.

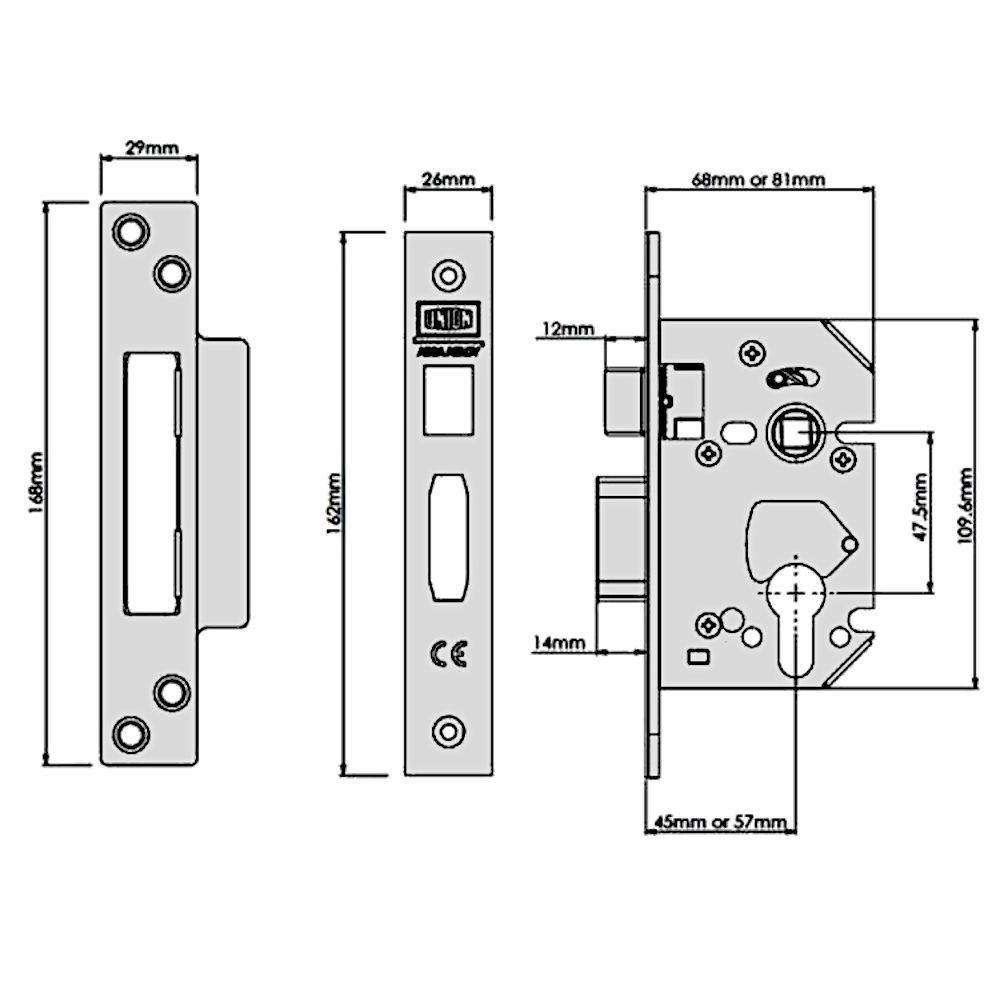

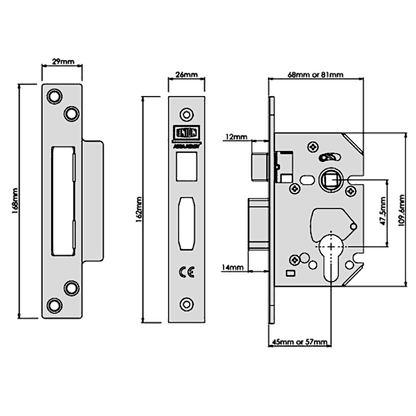

Option Specifications
Backset
57mm, 45mm
Bolt Throw
14mm
Case Height
109.6mm
Case Depth
81mm, 68mm
Centres
47.5mm
Finish
Stainless Steel, Polished Brass
Fire Tested
Yes
Forend Length
162mm
Forend Width
26mm
Handed
Reversible
Mechanism
Euro Cylinder
Pack Quantity
1
Spindle
8mm
Standards
Certifire,Secured By Design,BS EN 1634-1,BS EN 12209:2003,CE Marked, Certifire,CE Marked,BS EN 1634-1,BS EN 12209:2003,Secured By Design, BS EN 12209:2003,Secured By Design,BS EN 1634-1,Certifire,CE Marked, Secured By Design,Certifire,CE Marked,BS EN 1634-1,BS EN 12209:2003
