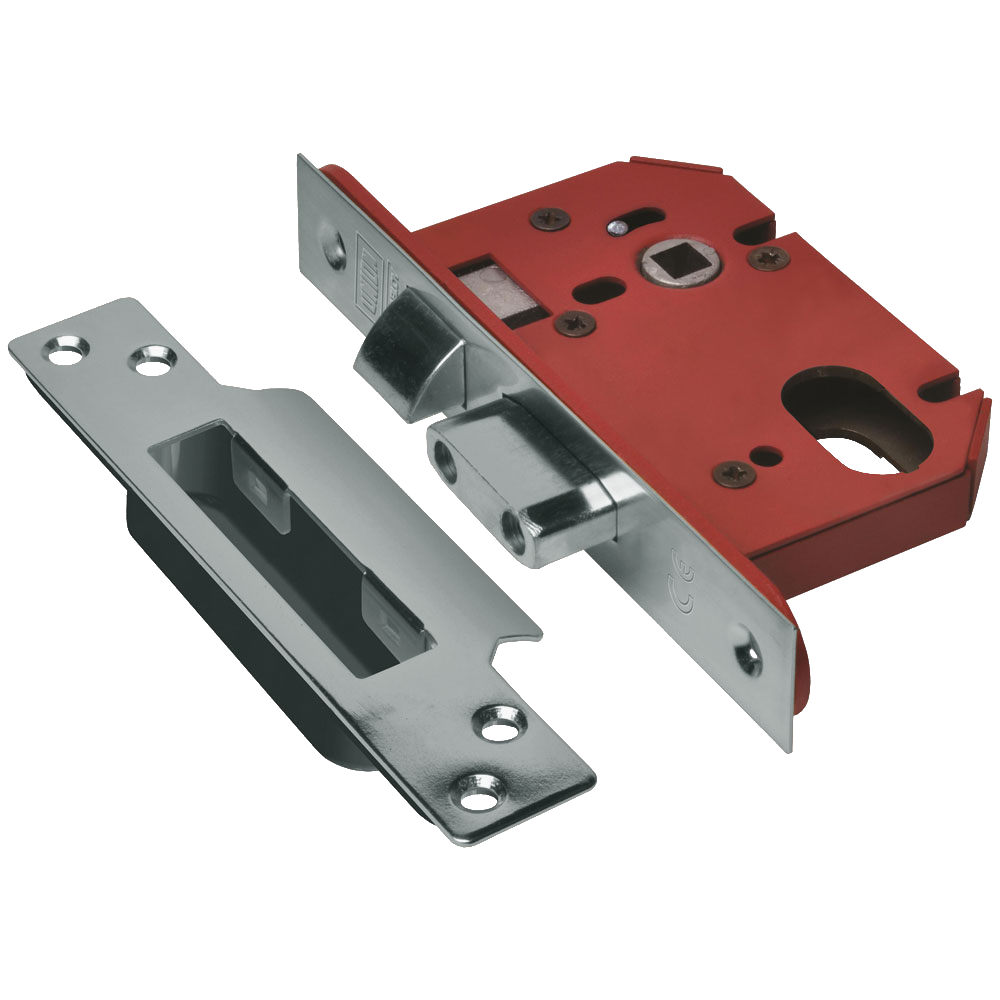

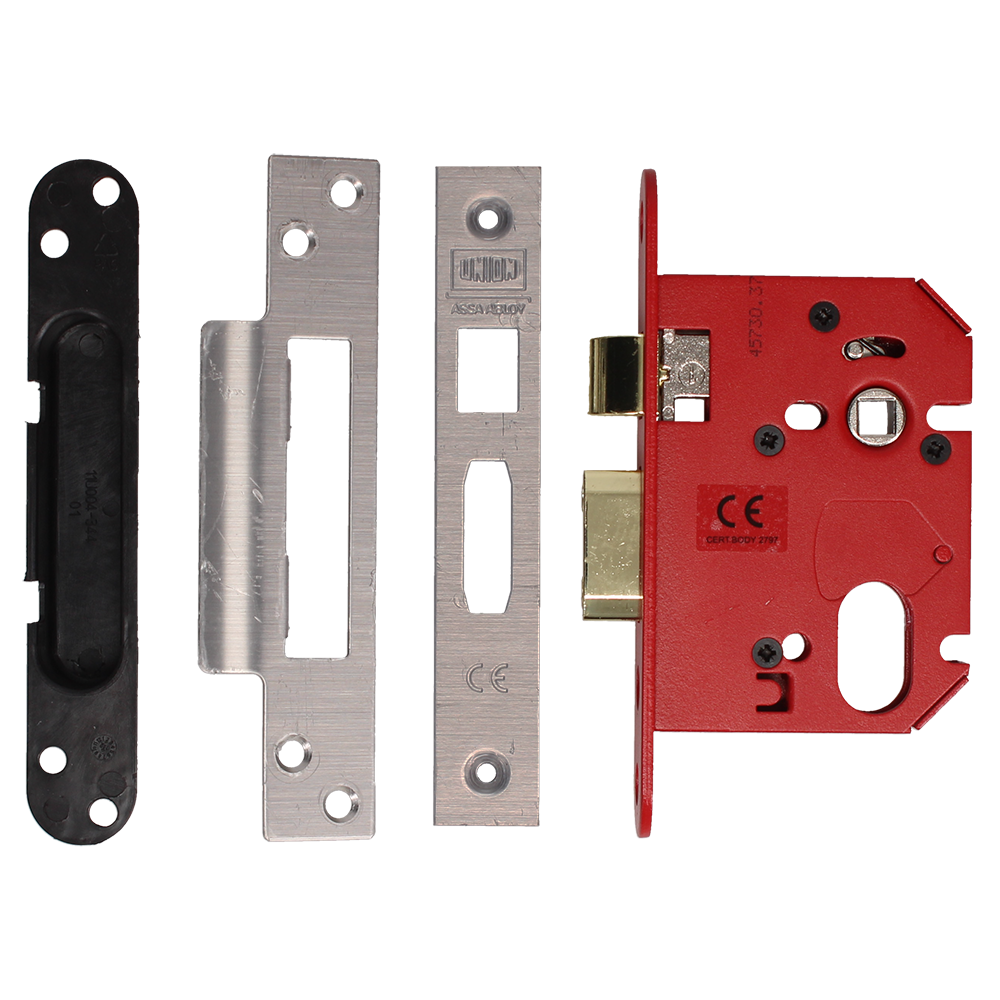

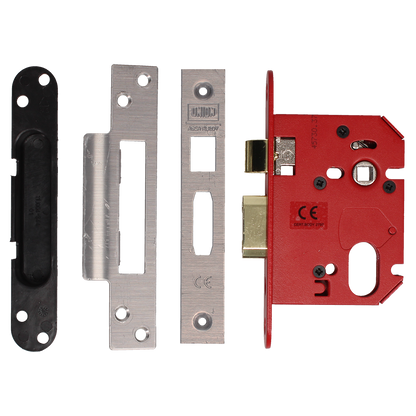

UNION JL22OVS StrongBOLT Oval Sashcase
UNION JL22OVS StrongBOLT Oval Sashcase
By purchasing you are agreeing to our Terms of Sale.
20 in stock
Couldn't load pickup availability
As well as the unique chamfered bolt design, the UNION StongBOLT has been further developed based on extensive research and feedback. It now also incorporates an easy reversible radius latch that uses the unique UNION SwitchLatch technology, anti rattle adjustable strike for onsite fine tuning, and plastic splinter guard for easy installation and a professional finish.
UNION JL22OVS StrongBOLT Oval Sashcase
Features
- Pick, saw & force resistant
- Suitable for use on fire doors
- CE marked
- Certifire approved
- Reversible radius latch
- Square faceplate & radius inner forend for ease of installation
Finishes

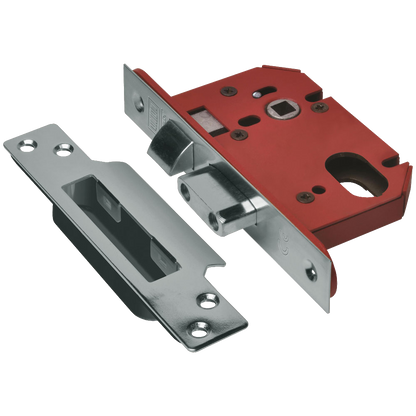

- Stainless Steel

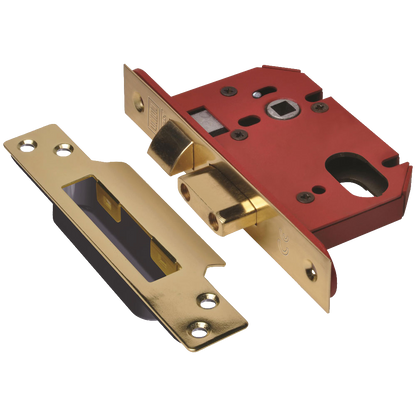

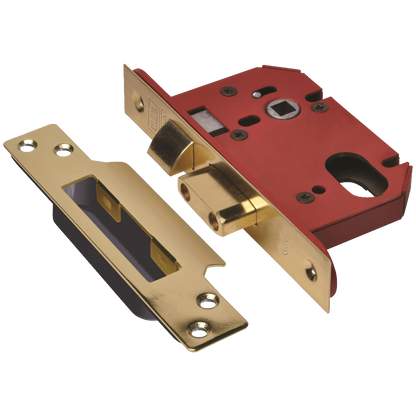

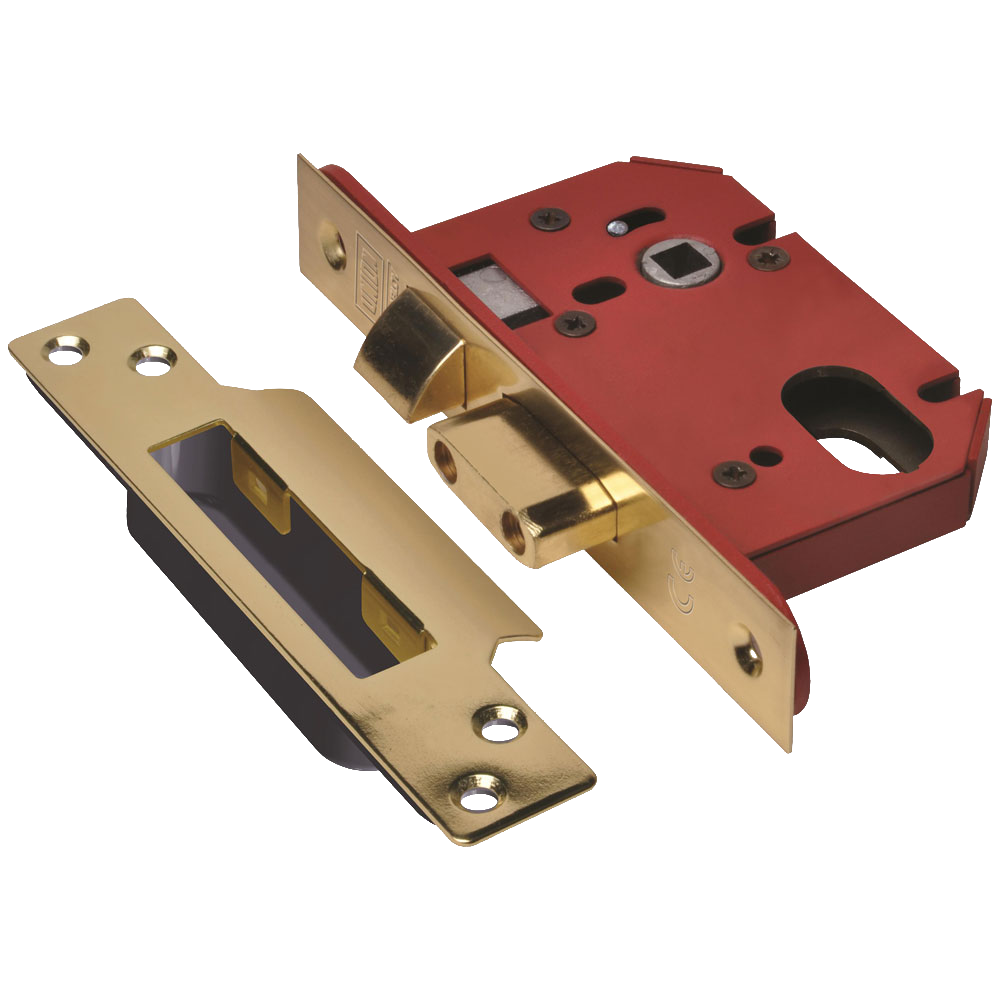

- Polished Brass
Categories
- Locking Product
- Mortice Locks & Latches
- Sashlocks
- Cylinder - Oval
Our UNION JL22OVS StrongBOLT Oval Sashcase from Union is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.

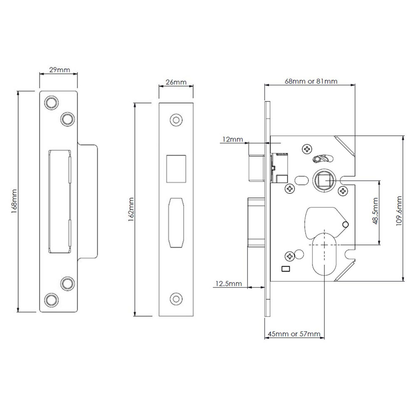

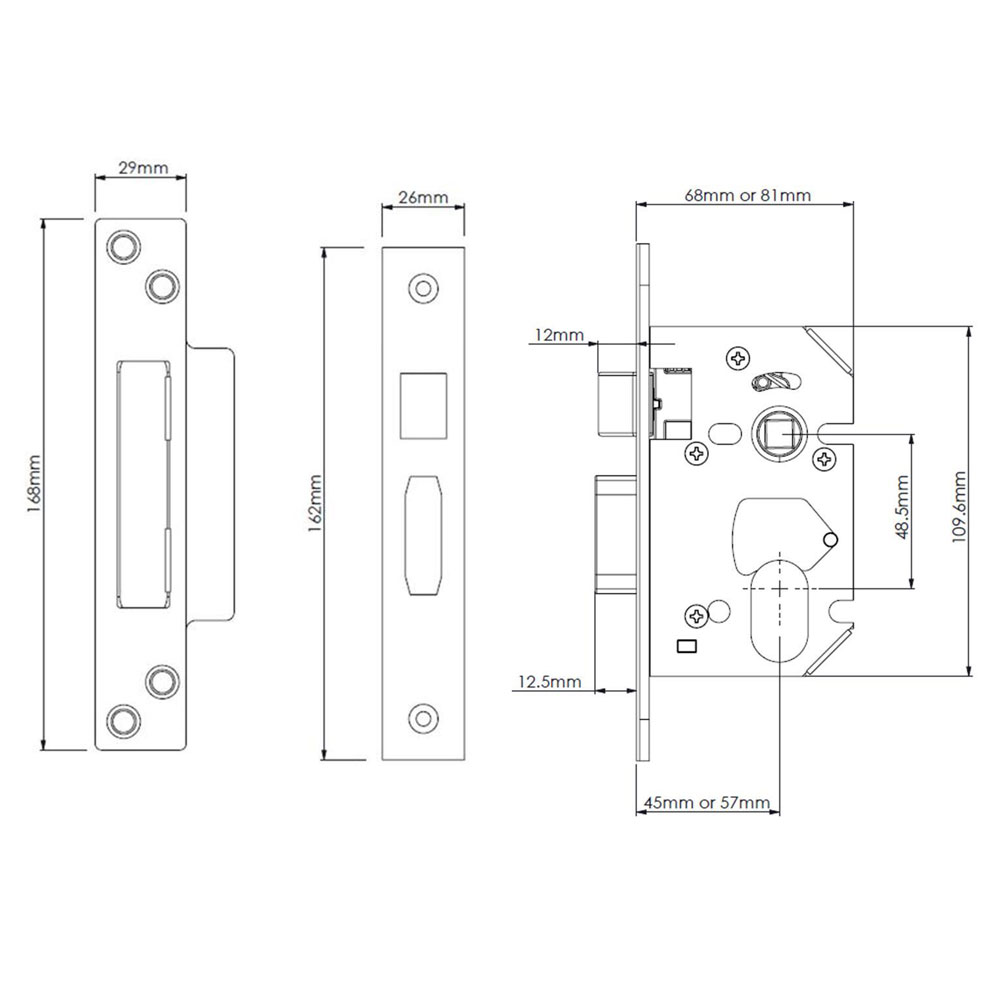

| Option Specifications | |
|---|---|
| Backset | 57mm, 45mm |
| Bolt Throw | 14mm |
| Case Height | 109.6mm |
| Case Depth | 81mm, 68mm |
| Centres | 47.5mm |
| Finish | Stainless Steel, Polished Brass |
| Fire Tested | Yes |
| Forend Length | 162mm |
| Forend Width | 26mm |
| Handed | Reversible |
| Mechanism | Oval Cylinder |
| Pack Quantity | 1 |
| Spindle | 8mm |
| Standards | BS EN 1634-1,BS EN 12209:2003,BS EN 1634,CE Marked,Secured By Design,Certifire, Secured By Design,Certifire,CE Marked,BS EN 1634-1,BS EN 1634,BS EN 12209:2003, Certifire,BS EN 1634,BS EN 12209:2003,Secured By Design,BS EN 1634-1,CE Marked |
| Product References | L19785, L19784, L19783, L19782 |
| Barcode References | 5011802175587, 5011802175570, 5011802175563, 5011802175556 |
| * Information above is accurate at the time of entry and may be subject to change at any time. | |
