Brand: Winkhaus
WINKHAUS STV-FGTE Master Lock 2 Hook 45mm Backset 20mm faceplate
WINKHAUS STV-FGTE Master Lock 2 Hook 45mm Backset 20mm faceplate
By purchasing you are agreeing to our Terms of Sale.
Low stock: 2 left
Couldn't load pickup availability

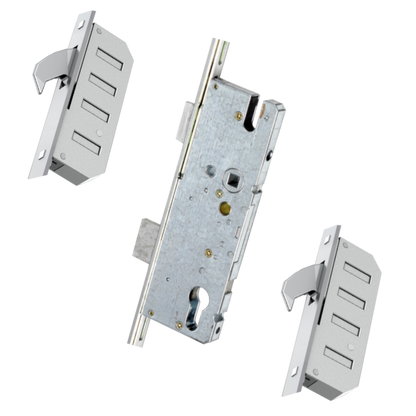

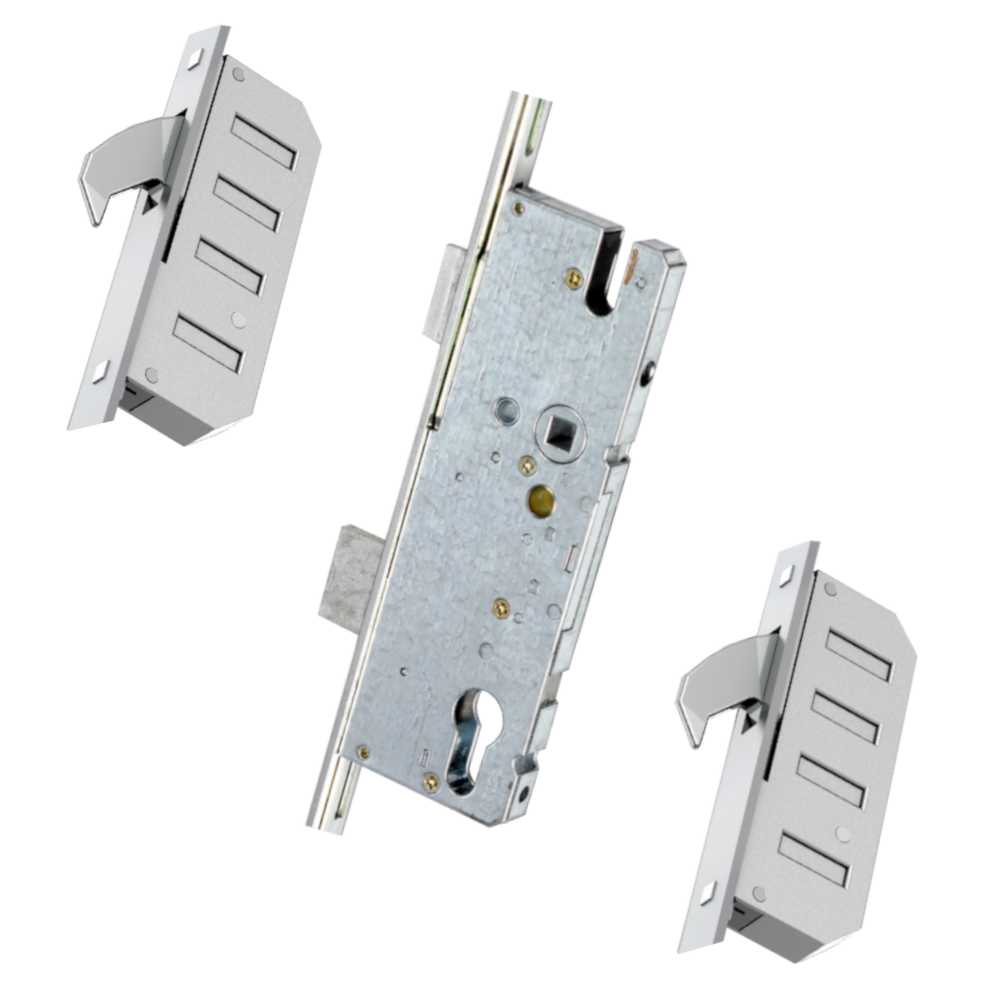

FGTE by Winkhaus is a double door locking system for composite, timber and aluminium doors. This STV-FGTE is the master side, for the first opening leaf, with a 45mm backset latch and deadbolt gearbox and 2 hooks. It has 92mm centres and a 20mm faceplate. It can also be used with FGTE top and bottom shootbolts (available by special order).
WINKHAUS STV-FGTE Master Lock 2 Hook 45mm Backset 20mm faceplate
Features
- FGTE Master door lock used in first opening leaf of double doors
- Croppable faceplate
- 20mm throw central deadbolt
- Will accept FGTE top and bottom shootbolts
- Lift lever operation
Categories
- Multi Point Locks
- Door
- Full Units
- Winkhaus
Our WINKHAUS STV-FGTE Master Lock 2 Hook 45mm Backset 20mm faceplate from Winkhaus is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
| Specifications | |
|---|---|
| Backset | 45mm |
| Case Height | 186mm |
| Case Width | 63mm |
| Centre Case | Latch & Deadbolt |
| Centres | 92mm |
| Faceplate Width | 20mm |
| Length | 2.105m |
| Locking Point Hooks | 2 |
| Mechanism | Euro Cylinder |
| Pack Quantity | 1 |
| Spindle | Single |
| Standards | PAS 24:2016,Secured By Design |
| Product References | L33657 |
| Barcode References | 5056240134451 |
| * Information above is accurate at the time of entry and may be subject to change at any time. | |
