Brand: Winkhaus
WINKHAUS Trulock STV-F 2070 M2 20mm Radius Faceplate With 2 Hooks Keywind Action (KTA)
WINKHAUS Trulock STV-F 2070 M2 20mm Radius Faceplate With 2 Hooks Keywind Action (KTA)
By purchasing you are agreeing to our Terms of Sale.
Low stock: 9 left
Couldn't load pickup availability

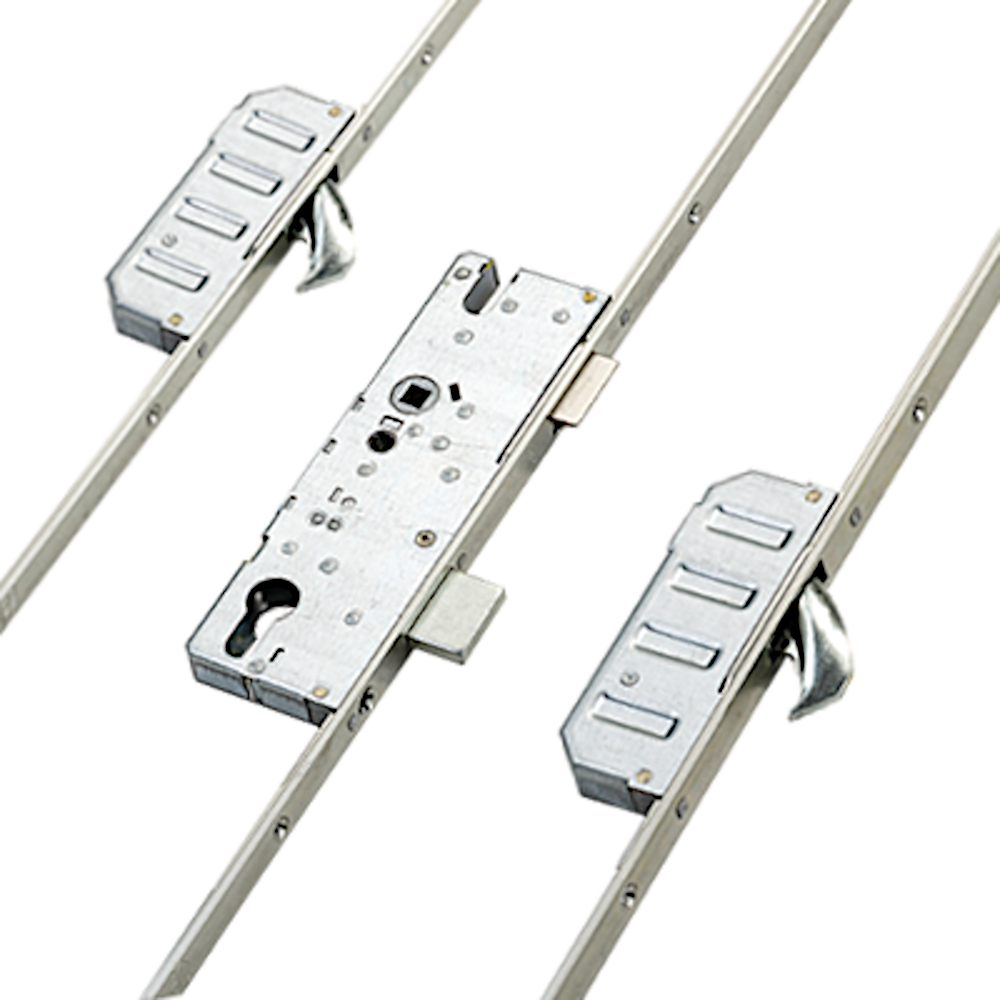

This keywind operated Trulock STV-F 2070 M2 latch & deadbolt multipoint lock system by Winkhaus features a 20mm radius faceplate with 92mm centres and 2 hooks. It is available handed as left or right hand in a choice of backset sizes and is suitable for use on composite and timber doors.
WINKHAUS Trulock STV-F 2070 M2 20mm Radius Faceplate With 2 Hooks Keywind Action (KTA)
Features
- Suitable for use on composite and timber doors
- Choice of backset sizes and handing
- 25mm throw tensile steel hooks
- Latch & deadbolt centre case
- Low friction hook thrust plates for smooth operation
- 20mm radius faceplate
Categories
- Multi Point Locks
- Door
- Full Units
- Winkhaus
Our WINKHAUS Trulock STV-F 2070 M2 20mm Radius Faceplate With 2 Hooks Keywind Action (KTA) from Winkhaus is a quality tested product at a reasonably low price.
If you need any further information or are looking for an alternative size or similar item please contact us.
| Option Specifications | |
|---|---|
| Backset | 55mm, 45mm |
| Case Height | 186mm |
| Case Width | 73mm, 63mm |
| Centre Case | Latch & Deadbolt |
| Centres | 92mm |
| Faceplate Width | 20mm Radius |
| Handed | Left Hand, Right Hand |
| Length | 1.77m |
| Locking Point Hooks | 2 |
| Pack Quantity | 1 |
| Standards | Secured By Design |
| Product References | L33121, L33120, L33086, L33085 |
| Barcode References | 5056240129297, 5056240129280, 5056240128597, 5056240128580 |
| * Information above is accurate at the time of entry and may be subject to change at any time. | |
