• YALE L22070 Euro Sashcase 54mm - Satin Chrome
1 1

Brand: Yale

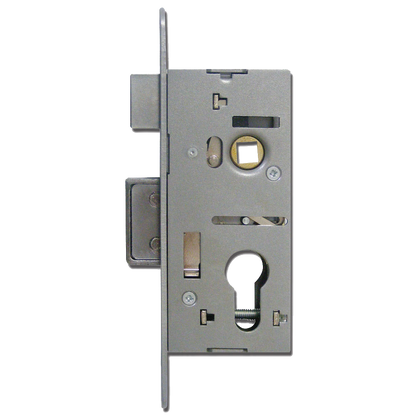

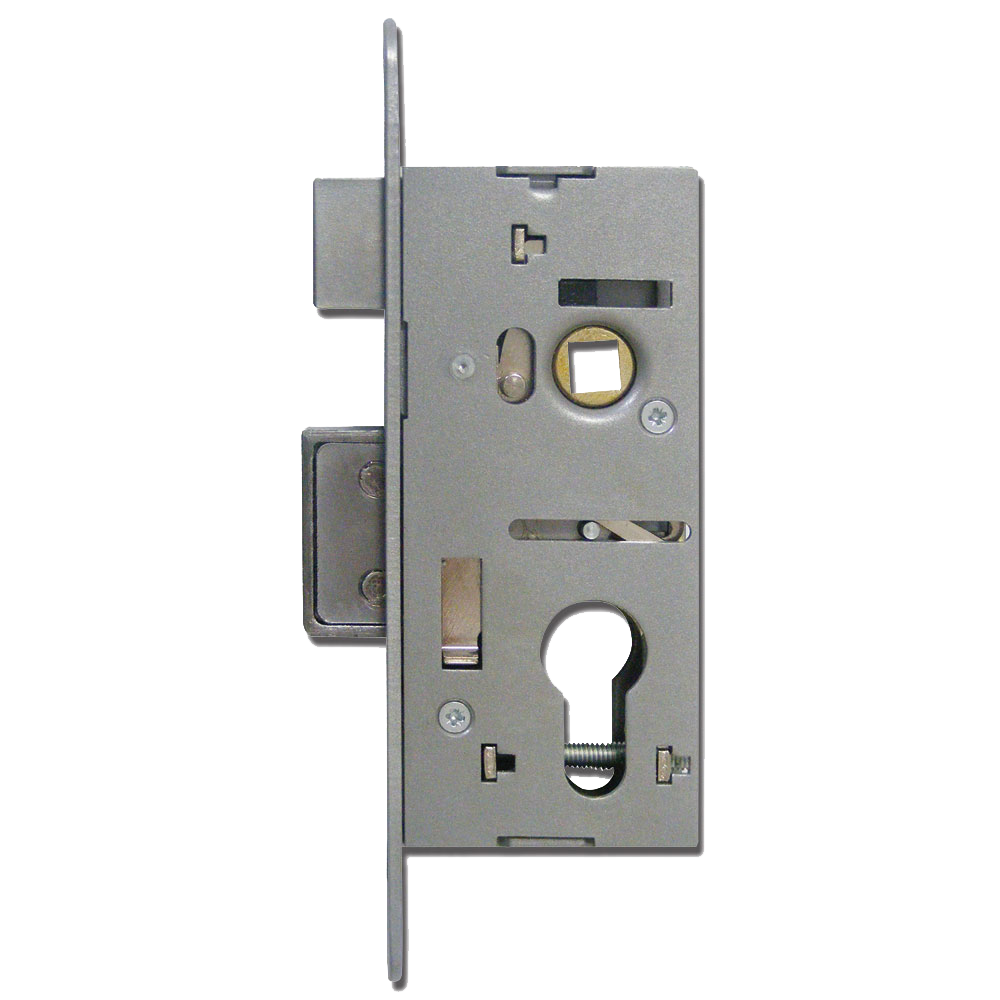

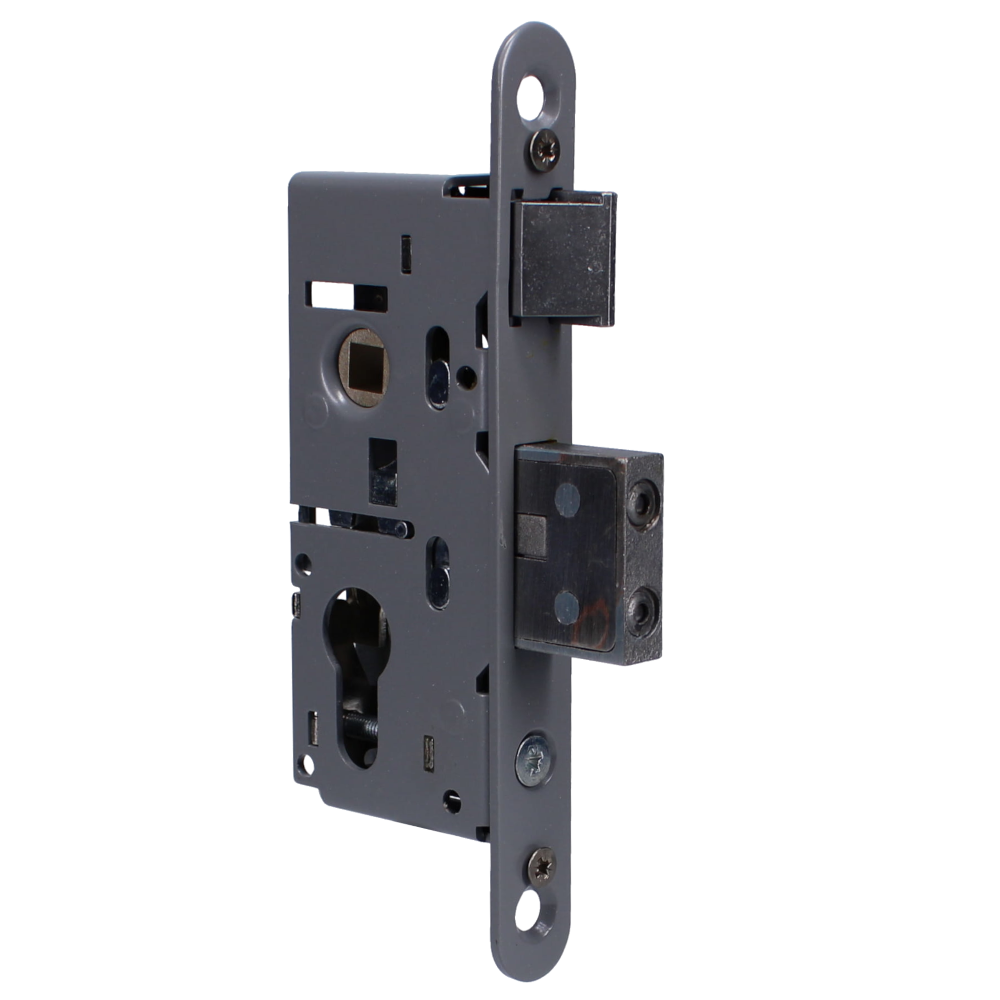

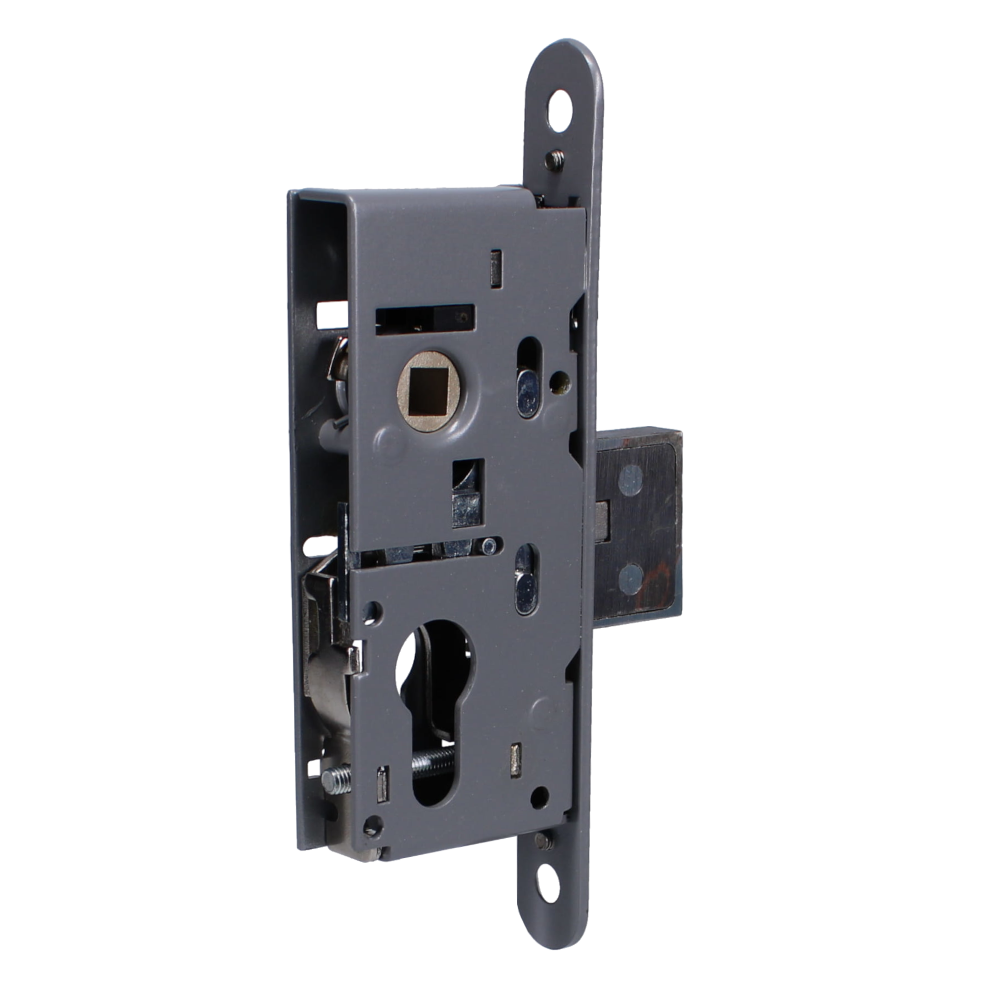

YALE L22070 Euro Sashcase

YALE L22070 Euro Sashcase

£105.42
£0.00 £105.42
Sale Sold out

By purchasing you are agreeing to our Terms of Sale.

Low stock: 9 left

Style

The Yale (Union) L22070 sashcase is a euro operated double throw latch and deadbolt case with a 36mm backset. It has 48mm centres and a 54mm case depth making it suitable for metal doors.

YALE L22070 Euro Sashcase

Features

  • Double throw deadbolt 1st throw =12mm, 2nd throw goes a further 12mm.
  • Suitable for metal doors
  • Supplied without faceplate and striking plate as no longer available
  • Euro Profile Lock Case
  • Reversible Latch Bolt
  • Latch & Deadbolt

Finishes

  • Satin Chrome

Categories

  • Locking Product
  • Mortice Locks & Latches
  • Sashlocks
  • Cylinder - Euro

Our YALE L22070 Euro Sashcase from Yale is a quality tested product at a reasonably low price.

If you need any further information or are looking for an alternative size or similar item please contact us.

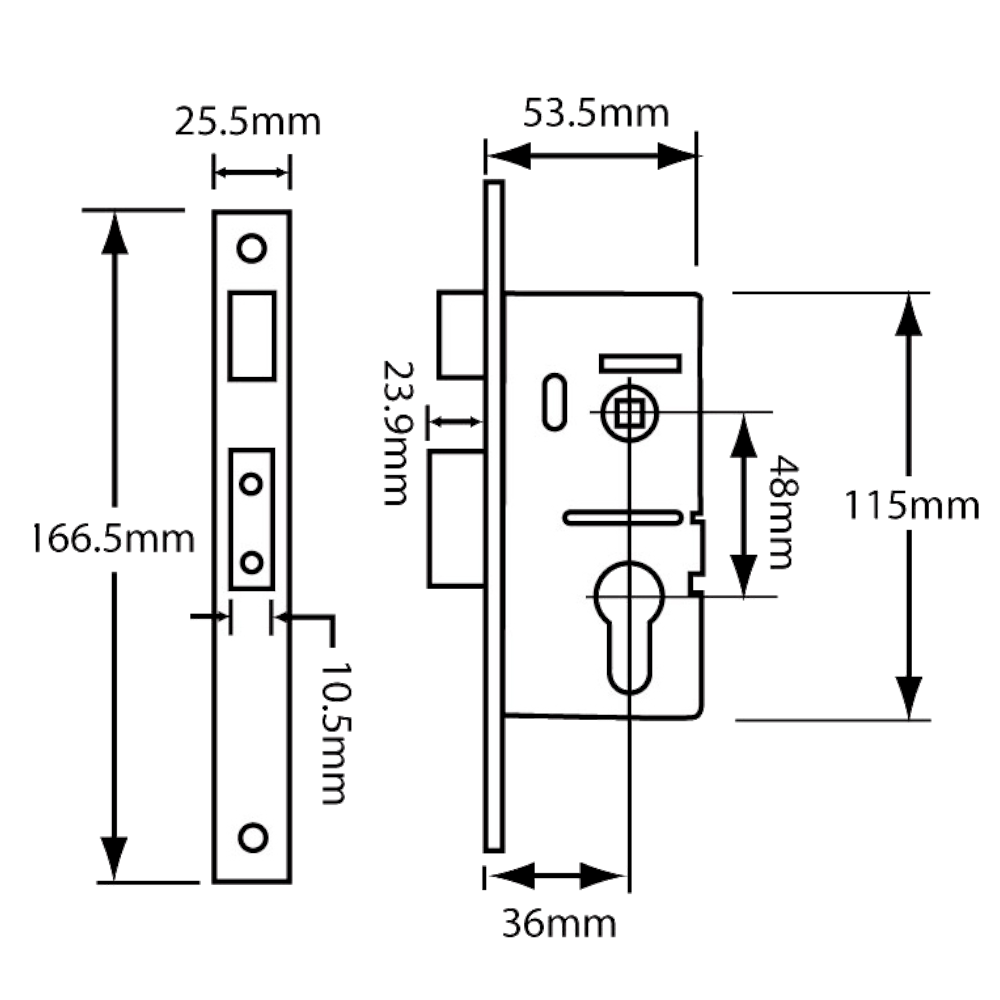

Specifications
Backset 36mm
Case Height 115mm
Case Depth 54mm
Case Width 50mm
Centre Case Latch & Deadbolt
Centres 48mm
Faceplate Width 25.5mm
Finish Satin Chrome
Forend Length 166.5mm
Forend Width 25.5mm
Mechanism Euro Cylinder
Pack Quantity 1
Spindle Single
Product References L1419
Barcode References 5055120653860
* Information above is accurate at the time of entry and may be subject to change at any time.
